- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Plug
- Max. current (Imax):
- 10-15 A
- Insulation:
- Fully isolated
- Colour insulation:
- Blue, Red
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V0
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- No
- Packaging:
- Loose piece
- UL-File No.:
- E78965
Cut- and stipping machine - NTCS 6
NTCS 6 is a electrically powered cutting and stripping machine for solid and multi-stranded cables. NTCS 6 is designed to process cables with cross-sections ranging from 0.1 to 6 mm² with a productivity of up to 8000 pieces per hour.
In its software, NTCS 6 integrates features:
• Instead of traditional pulse adjustment, NTCS 6 employs an intelligent way to measure wire size and set stripping diameter.
• Automatic correction of the cutting length saves a significant amount of time and ensures the cutting accuracy.
• Step function clearly displays each individual step, which is highly beneficial for initial setup, operator training, and troubleshooting.
• Wire shortage detection stops the machine automatically and gives an audible alarm in case the wire runs out.
Technical data:
Function: Wire cutting, dual-end stripping, mid-stripping.
Capacity: 0.1-6 mm² (AWG30-10)
Cutting length: 0.1 mm - 99999.9 mm
Stripping length: Front end 0.1-250 mm, Rear end 0.1-70 mm
Stripping accuracy: 0.01 mm
Production capacity: 3000-8000 / h.
Knife material: Tungsten steel / high-speed steel.
Power supply: 220-240V AC / 50Hz
Weight: 31.5 kg
Dimensions: 470 x 450 x 350 mm
- Strip length adjustable:
- Yes
- Adjustable conductor cross section:
- 0.1-6 mm²
- Function:
- Skin
- Type of drive:
- Electrical
- Strip length:
- 0.1-250 mm
Cut- and stipping machine - NTCS 16
NTCS 16 is a electrically powered cutting and stripping machine for solid and multi-stranded cables. NTCS 16 is designed to process cables with cross-sections ranging from 1 to 16mm² with a productivity of up to 5000 pieces per hour.
In its software, NTCS 16 integrates features:
• Instead of traditional pulse adjustment, NTCS 16 employs an innovative and intelligent method to set the removal diameter.
• Automatic correction of the cutting length saves a significant amount of time and ensures cutting accuracy.
• Step function clearly displays each individual step, which is highly beneficial for initial setup, operator training, and troubleshooting.
• Wire shortage detection halts the machine automatically and provides audible alarm in case the wire runs out.
Technical data:
Function: Wire cutting, dual-end stripping, mid-stripping.
Capacity: 1-16 mm² (AWG30-8)
Max diameter: 10 mm
Cutting length: 0.1 mm-99999.9 mm
Stripping length: Front end 0.1-250 mm, Rear end 0.1-70 mm.
Stripping accuracy: 0.01 mm
Production capacity: 2000-5000 / h.
Knife material: Tungsten steel / high-speed steel.
Power supply: 220-240V AC / 50Hz
Weight: 36.5 kg
Dimensions: 470 x 450 x 350 mm
- Strip length adjustable:
- Yes
- Adjustable conductor cross section:
- 1-16 mm²
- Function:
- Skin
- Type of drive:
- Electrical
- Strip length:
- 0.1-250 mm
Wire cutting and stripping machine - NTCS 70
NTCS 70 is an electrically powered wire cutting and stripping machine designed for both solid and multi-stranded cables. It is engineered to process cables with cross-sections ranging from 1.5 to 70 mm², with an productivity of up to 2500 pieces per hour.
Technical data:
Stripping capability: 3-layer stripping for shield cable
Wire material: Wide range of industrial wires
Conductor cross-section: 1.5-70 mm²
Cutting length 1-100,000 mm
Cutting length tolerance: < 0.002*L
Stripping length (side 1): 0-400 mm
Stripping length (side II): 0-180 mm
Slitting function: Optional
Maximum guide tube diamete: 20 mm
Display mode: 7-inch touch screen
Memory capacity: 100 programs
Blade material: High speed steel
Productivity: 1500-2500 pcs./h
Power supply: 220-240V AC / 50Hz
Power: 800 W
Weight: 80 kg
Dimension: 700 x 640 x 480 mm
- Strip length adjustable:
- Yes
- Adjustable conductor cross section:
- 1.5-70 mm²
- Function:
- Skin
- Type of drive:
- Electrical
- Strip length:
- 0.1-250 mm
Wire Stripping Machine - NTCS 00340
NTCS 00340 is a electrically powered stripping machine for solid and multi-stranded cabled. NTCS 00340 is designed to process cables with cross-sections ranging from 0.03 to 4mm² with a absolute precision.
Technical data:
Max. Stripping length: 20mm
Diameter setting accuracy: 0.01mm
Processing time: 2pcs/s
Available cross section: 0.03-4mm2
Stripping accuracy: Entire-strip: 0.5mm, Half-strip: 6mm
Weight: 4.5kg
Dimension: 380 x 85 x 188 mm
Power supply: 220-240V AC / 50Hz
- Strip length adjustable:
- Yes
- Adjustable conductor cross section:
- 0.03-4 mm²
- Function:
- Skin
- Type of drive:
- Electrical
- Strip length:
- 0.1-20 mm

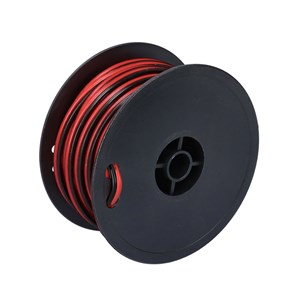

R3 2-colors - Spool
Flame retardant thermoplastic cable XHFFR, suitable for vehicles use on low voltage applications and systems, without direct contact of heat sources on the cable.
Suitable for applications inside the engine compartment.
Packaging (OD x Hub x Width):
Spool B3: 160mm x 56mm x 50mm
Spool B6: 250mm x 56mm x 95mm
Construction:
Conductor: Annealed multi-wire copper class 3
Leader insulation: XHFFR
Technical data
100V
Temp. range: -40º C to + 125º C
Approvals:
ISO 6722 class C
- Number of cores:
- 1 .
- Material core insulation:
- Polyolefin
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -40-125 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 125 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Halogen free:
- Yes
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Single insulated
- Core colour:
- Several
- Conductor surface:
- Bare
- Min. permitted bending radius, stationary application/permanent installation:
- 4.8-9.9 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
R3 1-color - Spool
Flame retardant thermoplastic cable XHFFR, suitable for vehicles use on low voltage applications and systems, without direct contact of heat sources on the cable.
Suitable for applications inside the engine compartment.
Packaging (OD x Hub x Width):
Spool B3: 160mm x 56mm x 50mm
Spool B6: 250mm x 56mm x 95mm
Construction:
Conductor: Annealed multi-wire copper class 3
Leader insulation: XHFFR
Technical data
100V
Temp. range: -40º C to + 125º C
Approvals:
ISO 6722 class C
- Number of cores:
- 1 .
- Material core insulation:
- Polyolefin
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Purple, Pink, Blue, Brown, Yellow, Grey, Green, Orange, Red, Black, White, Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -40-125 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 125 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Halogen free:
- Yes
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Single insulated
- Core colour:
- Blue, Brown, Yellow, Grey, Green, Purple, Orange, Pink, Red, Black, White, Several
- Conductor surface:
- Bare
- Min. permitted bending radius, stationary application/permanent installation:
- 3.6-34.5 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
TX UL 3746
Flexibel kopplingskabel för intern kabeldragning i lampor, uppvärmningsanordningar, elektriska maskiner, styr- och apparatskåp, samt inom byggnadsindustrin.
Idealisk för installation inuti rör samt för utanpåliggande installation. Mycket goda elektriska och mekaniska egenskaper.
Brett temperaturområde samt hög tålighet mot oljor, ozon, hydrolys och mekanisk påverkan.
Kopplingstråden är svårantändlig, vid brand utvecklas minimalt med rök och inga korrosiva gaser avges.
Halogenfri.
Uppbyggnad
Ledare: Förtent flertrådig koppar enligt IEC 60228 klass 5
Ledarisolation: XHFFR
Mantelfärg: Se produktdata nedan
Tekniska data:
Driftspänning: 300 V
Temp.område: -40ºC till +105ºC
Godkännanden, flambeständighet
IEC60754-1
- Number of cores:
- 1 .
- Material core insulation:
- Polyolefin
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Blue, Brown, Yellow, Grey, Green, Orange, Red, Black, White, Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-105 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 105 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 300 V
- Halogen free:
- Yes
- Conductor category:
- Class 5 = flexible
- Colour:
- Black, Green, Grey, Orange, Yellow, Brown, Red, White, Blue, Purple
- Material insulation:
- XLPE
- Core colour:
- Blue, Brown, Yellow, Grey, Green, Purple, Orange, Red, Black, White
- Conductor surface:
- Tinned
- Halogen free:
- Yes
- Packaging:
- Reel B5
- Min. permitted bending radius, stationary application/permanent installation:
- 4.05-6.42 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- Yes
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
Sortimentlåda Isolerade kabelskor & TP 690 – 400 delar
Assortment box made out of plastic with approx. 400 pieces.
Contents:
Insulated terminals 0.5-6.0 mm²
Uninsulated (tab male disconnector)
Connector blocks
Crimping tool: TP 690
- With transparent cover:
- Yes
- Housing material:
- Plastic
- Housing colour:
- Black
- Housing material quality:
- Polyamide (PA)
- Insulated cable end sleeves:
- No
- Insulated cable connections:
- Yes
- Non-insulated cable end sleeves:
- No
- Non-isolated cable connections:
- Yes
- Crimp cable lug for Cu-conductors:
- Yes
- Tube cable lug for Cu-conductors:
- No
- Cable screw glands:
- No
- With tool:
- Yes
- With cable tie:
- No
Sortimentlåda Isolerade kabelskor & TP 690 – 1000 delar
Assortment box made out of plastic with approx. 1000 pieces.
Contents:
Insulated terminals 0.5-6.0 mm²
Uninsulated (tab male disconnector)
Connector blocks
Crimping tool: TP 690
- With transparent cover:
- Yes
- Housing material:
- Plastic
- Housing colour:
- Black
- Housing material quality:
- Polyamide (PA)
- Insulated cable end sleeves:
- No
- Insulated cable connections:
- Yes
- Non-insulated cable end sleeves:
- No
- Non-isolated cable connections:
- Yes, No
- Crimp cable lug for Cu-conductors:
- Yes
- Tube cable lug for Cu-conductors:
- No
- Cable screw glands:
- No
- With tool:
- Yes
- With cable tie:
- No
Sortimentlåda Isolerade kabelskor & NEL 50 – 120 delar
Sortimentlåda i plast med ca 120 delar.
Innehåll:
Isolerade kabelskor 0.5-6.0 mm²
Oisolerade kabelskor (flatstift)
Kopplingsplintar
Presstång: NEL 50
- With transparent cover:
- Yes
- Housing material:
- Plastic
- Housing colour:
- Black
- Housing material quality:
- Polyamide (PA)
- Insulated cable end sleeves:
- No
- Insulated cable connections:
- Yes
- Non-insulated cable end sleeves:
- No
- Non-isolated cable connections:
- No
- Crimp cable lug for Cu-conductors:
- Yes
- Tube cable lug for Cu-conductors:
- No
- Cable screw glands:
- No
- With tool:
- Yes
- With cable tie:
- No

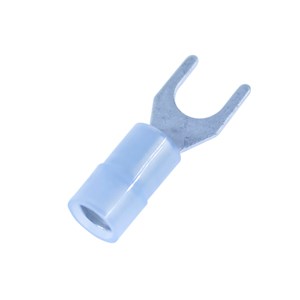

Heat-shrink insulated Spade terminals TS-series
Krymphylsor TS-serien "Lågpris"
Material: Förtent mässing
Isolering: Polyamid (PA) nylon med invändigt lim
Krymptemperatur: 180º C
Temperaturområde: -55° C till +125° C
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19-48 A
- Flange shape:
- Fork shape
- According to DIN:
- No
- Insulation:
- Polyamide (PA)
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material:
- Copper
- Voltage max:
- 600V
Crimp tool - NCXP with extra dies
Pressverktyg i mycket hög kvalitet. Finns i flera utförande med CS30 pressbackar. Förvaring i handtagen för upp till 2 backpar av typ NCXD. Pressbackarna kan bytas snabbt och enkelt med releaseknappar i fronten på verktyget. Utrustad med ergonomiska handtag.
Pressverktyget är en ratchettång som säkerställer att pressningen fullföljs. Returspärren har en release-hake ifall man vill avsluta pressningen.
Välj mellan att köpa ram och själv kombinera vilka pressbackar som ska medfölja eller något av våra färdiga koncept.
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- Yes, No
- Number of included inserts:
- 0-3 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable end sleeves, Cable lugs and connectors, Various applications
- Construction/operation:
- Mechanical
- For component:
- End sleeves, Un-insulated flag terminal, Insulated terminals, Non-insulated terminals, roller compaction, Non-insulated Cu tube and sheet terminals
- Compression shape:
- Trapezoid compression, Arbour clamping, Oval pressing, Roll compression (shrinking), Universal (exchangeable inserts)
Cord end-sleeves, CED-serien
Material: Tinned copper
Temperature range: Up to 110º C (230º F)
Easy entry
DIN 46228-4:2020-03
Colour code: DIN
- Insulated:
- Yes
- Reel/roll packaging:
- No
- Construction type:
- Single-sleeves
- Colour:
- Black, Green, Grey, Yellow, Red, White, Blue
- Surface protection:
- Tinned
- Material insulation:
- Polypropylene (PP)
- Material:
- Copper
- Colour code:
- CED/CTD (DIN)
- Halogen free:
- Yes
Twin end-sleeves, CTD-Series
Material: Tinned copper
Temperature range: Up to 110º C (230º F)
Easy entry
Colour code: DIN
- Insulated:
- Yes
- Reel/roll packaging:
- No
- Construction type:
- Twin-sleeves
- Colour:
- Black, Grey, Yellow, Red, White, Blue
- Surface protection:
- Tinned
- Material insulation:
- Polypropylene (PP)
- Material:
- Copper
- Colour code:
- CED/CTD (DIN)
- Halogen free:
- Yes
PCT Standard cable ties
Cable ties in high industrial quality with rounded edges to prevent cable damage.
Inclined tip to indicate usage direction and quick installation time.
- Detectable:
- No
- Min. tensile strength:
- 80-800 N
- Model:
- Internal toothing
- Material quality:
- Polyamide (PA)
- Band closure:
- Plastic lip/-cam
- UV-stable acc. ASTM D6779:
- Yes, No
- Transparent:
- No
- Fluorescent:
- No
- Solvable fastener:
- No
- Text strip:
- None
- Type of fastening:
- None
- Colour:
- Black, Natural colour
- Surface protection:
- Untreated
- Material:
- Plastic
- Halogen free:
- Yes
- Max. tensile force:
- 80-800 N
PCT Heavy Duty
Heavy-duty cable ties provide a secure grip on the cables and hoses.
Locking head design ensures a high tensile strength.
- Detectable:
- No
- Min. tensile strength:
- 1120-1150 N
- Model:
- Internal toothing
- Material quality:
- Polyamide (PA)
- Band closure:
- Plastic lip/-cam
- UV-stable acc. ASTM D6779:
- Yes
- Transparent:
- No
- Fluorescent:
- No
- Solvable fastener:
- No
- Text strip:
- None
- Type of fastening:
- None
- Colour:
- Black
- Surface protection:
- Untreated
- Material:
- Plastic
- Halogen free:
- Yes
- Max. tensile force:
- 1120-1150 N

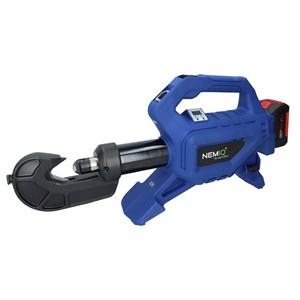

Battery Crimp Tool for N36-Crimp dies
NMBT N36 is a battery crimp tool for D36. The tool is equipped with a battery indicator and the head is rotatable 350°. Delivered with a battery and a battery charger in a durable plastic case.
The tool can press:
KRF 10-70 mmmm²
KRT 10-95 mm²
KRD 16-95 mm²
C6-C11
Battery: 18 VDC, 2.0 Ah Li-Ion
Pressure: 39kN, 4 ton
Weight: 2.3 kg (including battery)
Dimensions case (LxWxH): 560x160x400 mm
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 0 .
- With automatic return:
- No
- Cycle time:
- 5 s
- Compression force:
- 39 kN
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Accumulator-hydraulic
- For component:
- Non-insulated Cu tube and sheet terminals, C-clamps
- Compression shape:
- Round compression, Universal (exchangeable inserts)
Battery Crimp Tool for NH-Crimp dies
NMBT 240 is a Battery Crimp tool for cable lugs and c-sleeves. The tool is equipped with battery indicator and the head is rotatable 180°. Comes with a battery and a battery charger in a durable plastic case. Verktyget är utrustat med en batterimätare och huvudet är roterbart 180º. Levereras med ett batteri och en batteriladdare i en slitstark plastväska.The tool can crimp:KRF 10-120 mmmm²KRT 10-240 mm²KRD 10-240 mm²C4-C9The tool fits with NH-die sets.Battery: 18 VDC, 2.0 Ah Li-IonPressure: 52 kN / 5.3 tonWeight: 2.8 kg (including battery)Dimensions case (LxWxH): 560x160x400 mm
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 0 .
- With automatic return:
- No
- Cycle time:
- 5 s
- Compression force:
- 52 kN
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Accumulator-hydraulic
- For component:
- Non-insulated Cu tube and sheet terminals, C-clamps
- Compression shape:
- Round compression, Universal (exchangeable inserts)
Tab female disconnects A-series
Long copper sleeve
Receptacles with suffix “BR” are made
in bronze, not brass.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 8-24 A
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow, Red
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V2
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- No
- Packaging:
- Loose piece
- UL-File No.:
- E70188
Piggyback disconnects A-series
Long copper sleeve
Receptacles with suffix “BR” are made
in bronze, not brass.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10-15 A
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Red
- With cam clamp:
- No
- With tap spreader:
- Yes
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V2
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- No
- Packaging:
- Loose piece
- UL-File No.:
- E70188
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19-48 A
- Flange shape:
- Pin shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Long
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V2
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- Yes
- UL-File No.:
- E42024
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 16-48 A
- Flange shape:
- Fork shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V2
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- No
- UL-File No.:
- E42024
