- Total: 16
EF
85301
EF is the most common type of aluminium armoued conduit, and can be used in many different areas. Material: Galvanised steel core, leadfree PVC coverTemperature range: -25 degrees Celsius to +70 degrees Celsius , temporary +90 degrees Celsius Colours: Grey, black
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Polyvinyl chloride (PVC)
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Black, Grey
- Surface protection:
- Galvanised
- Operating temperature:
- -25-70 °C
- Material:
- Steel
- Approved according to BWB:
- No
- Approved according to VDE-EMV/emc:
- No
- Approved according to FI:
- No
- Approved according to CSA:
- No
- With approval according to UL:
- No
OR
81001
OR is specially developed for areas where conduit systems are being exposed to oils and greases. The flexibility of the conduit is being safeguarded. Material: Galvanised steel core, leadfree PVC coverTemperature range: -15 degrees Celsius to +100 degrees Celsius , temporary +120 degrees Celsius Colour: Black
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Polyvinyl chloride (PVC), oil resistant
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Black
- Surface protection:
- Galvanised
- Operating temperature:
- -15-100 °C
- Material:
- Steel
- Approved according to BWB:
- No
- Approved according to VDE-EMV/emc:
- No
- Approved according to FI:
- No
- Approved according to CSA:
- No
- With approval according to UL:
- No
HC
80401
Används vid stora temperaturskillnader. Yttermanteln behåller sin styrka både vid höga och låga temperaturer.
Konstruktion: Galvaniserad stålspiral med bomullspackning.
Yttermantel av PVC
Temperatur: -45° C till +105° C, tillfälligt +120° C
Färg: Svart
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Polyvinyl chloride (PVC)
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Black
- Surface protection:
- Galvanised
- Operating temperature:
- -45-105 °C
- Material:
- Steel
- Approved according to BWB:
- No
- Approved according to VDE-EMV/emc:
- No
- Approved according to FI:
- No
- Approved according to CSA:
- No
- With approval according to UL:
- No
HTDL
81301
HTDL har en integrerad koppartråd som gör att slangen kan användes för jordning. HTDL är UL och CSA godkänd.
Konstruktion: Galvaniserad stålspiral med integrerad kopparledare.
Termoplastisk PVC yttermantel
Temperatur: -40° C till +105° C, temporärt +120° C
Färg: Svart
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Polyvinyl chloride (PVC)
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Black
- Surface protection:
- Galvanised
- Operating temperature:
- -45-105 °C
- Material:
- Steel
- Approved according to BWB:
- No
- Approved according to VDE-EMV/emc:
- No
- Approved according to FI:
- No

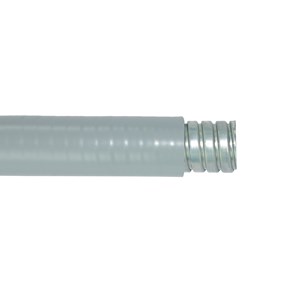

ZHC
80801
Galvaniserad stålspiral med kopparband. Halogenfritt ytterhölje.
Flambeständig enligt UL360.
Temperaurområde: -45º C - +80º C
UL-file: E18917
Färg: Grå
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Other
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Grey
- Surface protection:
- Galvanised
- Operating temperature:
- -45-80 °C
- Material:
- Steel
- Approved according to BWB:
- No
- Approved according to VDE-EMV/emc:
- No
- Approved according to FI:
- No
- Approved according to CSA:
- No
HCX
80501
Används vid extrem kyla eller värme. Bra vid kraftiga variationer i temperaturen då yttermanteln har en hög temperaturresistans.
Konstruktion: Galvaniserad stålspiral med bomullspackning. Yttermantel av termoplastisk elast (plast)
Temperatur: -55° C till +145° C, tillfälligt +160° C
Färg: Svart
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Other
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Black
- Surface protection:
- Galvanised
- Operating temperature:
- -55-145 °C
- Material:
- Steel
- Approved according to BWB:
- No
- Approved according to VDE-EMV/emc:
- No
- Approved according to FI:
- No
- Approved according to CSA:
- No
- With approval according to UL:
- No
HFX
80901
Halogen fri lowsmoke-skyddsslang för användning i offentliga miljöer. Det blir allt oftare ett krav att installationsmateriel ska vara halogenfritt. HFX är extremt flexibel i hela temperaturområdet vilket gör den lämplig för dynamiska applikationer.
Konstruktion: Galvaniserad stålspiral med bomullspackning. Yttermantel av termoplastisk polyuretan
Temperatur: -40° C till +105° C, temporärt +125° C
Färg: Svart
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Polyurethane (PUR)
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Black
- Surface protection:
- Galvanised
- Operating temperature:
- -40-105 °C
- Material:
- Steel
- Approved according to BWB:
- No
- Approved according to VDE-EMV/emc:
- No
- Approved according to FI:
- No
- Approved according to CSA:
- No
- With approval according to UL:
- No

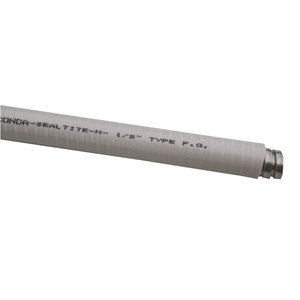

Sealtite, FG, White
77702
Robust, speciellt tillverkad för mat och läkemedelsindustrin. Enkel att rengöra.
Temperatur: -20° C till +60° C (temporärt +80° C)
Skyddsklass: IP67
Färg: Vit
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Polyvinyl chloride (PVC)
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- White
- Surface protection:
- Galvanised
- Operating temperature:
- -20-60 °C
- Material:
- Steel
- Approved according to BWB:
- No
- Approved according to VDE-EMV/emc:
- No
- Approved according to FI:
- No
- Approved according to CSA:
- No
- With approval according to UL:
- No
HCXI
HCXI
Används vid extrem kyla eller värme, Håller full flexibillitet även vid låga temperaturer och den rostfria stålspiralen gör HCXI extra korrosionsmotståndig.
Konstruktion: Rostfritt stål (AISI-304) spiral med bomullspackning.
Yttermantel av termoplastisk elast (plast)
Temperatur: -55° C till +145° C, tillfälligt +160° C
Färg: Svart
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Other
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Black
- Surface protection:
- Untreated
- Operating temperature:
- -55-145 °C
- Material:
- Stainless steel
- Approved according to BWB:
- No
- Approved according to VDE-EMV/emc:
- No
- Approved according to FI:
- No
- Approved according to CSA:
- No
- With approval according to UL:
- No

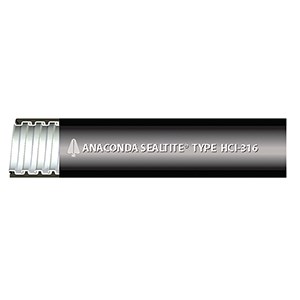

HCI-316
HCI316_vp
Används vid extrem kyla eller värme, Håller full flexibilitet även vid låga temperaturer och den rostfria stålspiralen gör HCI-316 extra korrosionsmotståndig.
Konstruktion: Rostfritt stål (AISI-316) spiral med bomullspackning.
Yttermantel av termoplastisk elast (plast)
Temperatur: -55° C till +105° C, tillfälligt +120° C
Färg: Svart
Sealtite, HTFG, White
HTFG_vp
Robust, speciellt tillverkad för mat och läkemedelsindustrin. Enkel att rengöra.
Temperatur: -45° C till +105° C
Skyddsklass: IP67
Färg: Vit
HTUA
HTUA_VP
Type HTUA is a robust conduit with a galvanised steel core and a thick, smooth PVC cover. An integral grounding copper wire (till 1.1/4”)provides a high level of EMI / EMP shielding for cables that require a high degree of electromagnetic protection. Type HTUA is UL & CSAapproved and is used to protect cables on transformers, generators, motors, actuators, valves, machinery, equipment, enclosures andinstallations exported to countries outside, but also inside Europe.
Temperature: -45 ºC till +105 ºC, intermittent upto +120 ºC. Max. temperature according CSA is+75 °C.Colour: Grey.

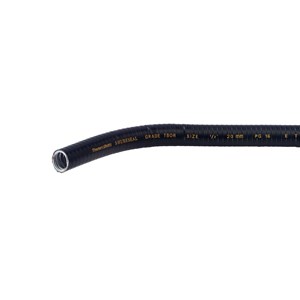

TBEHC
80601
TBEHC används vid stora temperaturskillnader. Yttermanteln behåller sin styrka både vid höga och låga temperaturer.
Konstruktion: Galvaniserad stålspiral med bomullspackning. Yttermantel av PVC
Temperatur: Stationär -50° C till +130° C, temporärt +150° C
Flexande: -5° C till +130° C
Provspänning: 2000 V
Skyddsklass: IP 67
Färg: Svart
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Polyvinyl chloride (PVC)
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Black
- Surface protection:
- Galvanised
- Operating temperature:
- -50-130 °C
- Material:
- Steel
- Approved according to BWB:
- No
- Approved according to VDE-EMV/emc:
- No
- Approved according to FI:
- No
- Approved according to CSA:
- No
- With approval according to UL:
- No

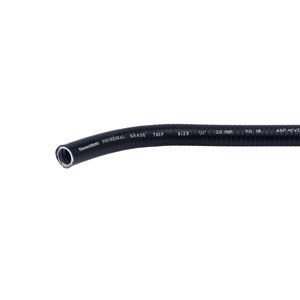

TBOR
81101
TBOR används i miljöer där slangen utsätts för olja och fett. Slangens resistans mot dessa vätskor gör att den behåller sin flexibilitet och rörlighet även i dessa miljöer. Användning av annan typ än TBOR i oljiga miljöer kan göra slangen hård och yttermanteln kan spricka.
Konstruktion: Galvaniserad stålspiral med bomullspackning. Yttermantel av PVC.
Temperatur: Stationär -25° C till +105° C
Flexande -5° C till +105° C
Skyddsklass: IP 67 (med korrekt anslutna T&B kopplingar)
Provspänning: 2000 V
Isolationsresistans: 100 MOhm
Färg: Svart
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Polyvinyl chloride (PVC), oil resistant
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Black
- Surface protection:
- Galvanised
- Operating temperature:
- -25-105 °C
- Material:
- Steel
- Approved according to BWB:
- No
- Approved according to VDE-EMV/emc:
- No
- Approved according to FI:
- No
- Approved according to CSA:
- No
- With approval according to UL:
- No
TBDL
81501
TBDL har en integrerad koppartråd som gör att slangen kan användes för jordning. TBDL är UL och CSA godkänd. Resistant mot syra och olja, självslocknande mantel av PVC. Silikonfri slang.
Konstruktion: Galvaniserad stålspiral med integrerad kopparledare.
Termoplastisk PVC yttermantel.
Temperatur:
Stationär -25° C till +105° C, temporärt +120° C
Flexande: -5° C till +105° C
UL klassad: -10° C till +60° C
CSA klassad: -10° C till +75° C
Skyddsklass: IP 67 (med korrekt anslutna T&B kopplingar)
Färg: Svart
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Polyvinyl chloride (PVC)
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Black
- Surface protection:
- Galvanised
- Operating temperature:
- -25-105 °C
- Material:
- Steel
- Approved according to BWB:
- No
- Approved according to VDE-EMV/emc:
- No
- Approved according to FI:
- No
TBEF
80301
TBEF är den vanligaste typen av metallskyddsslang.
Lämplig för många olika typer av installationer i
miljöer utan extrema ytterligheter. Resistant mot syra och olja, självslocknande mantel av PVC.
Konstruktion: Galvaniserad stålspiral med bomullspackning. Yttermantel av PVC.
Temperatur, Stationär: -25º C till +105º C
Flexande: -5º C till +105º C
Skyddsklass: IP 67 (med korrekt anslutna T&B kopplingar)
Provspänning: 2000 V
Isoleringsresistans: 100 MOhm
Färg: Grå, svart
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000-2500 N
- Sheathing material 1st coating:
- Polyvinyl chloride (PVC)
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Black, Grey
- Surface protection:
- Galvanised
- Operating temperature:
- -25-105 °C
- Material:
- Steel
- Approved according to BWB:
- No
- Approved according to VDE-EMV/emc:
- No
- Approved according to FI:
- No
- VDE tested:
- Yes
- Approved according to CSA:
- No
- With approval according to UL:
- No
- Total: 16
