- Total: 4

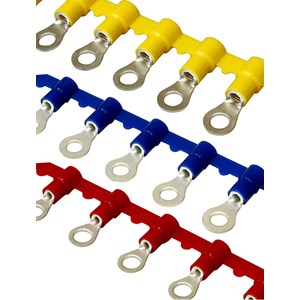

Ring terminals on reel, HA-series
64002
Brazed seam
Easy entry
Used with NCH-crimp system.
Se further down for related links.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- Yes
- Max. current (Imax):
- 27-48 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -40-75 °C
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- No
- UL-File No.:
- E44245

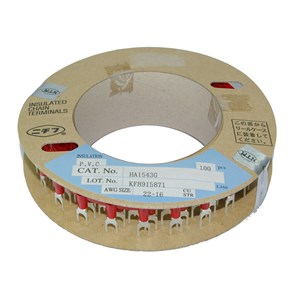

Ring terminals on reel, ICTBX-series
RingkabeIskor ICTBX-serien_vp
Insulated terminals on reel from Nichifu.
Brazed seam
Easy entry
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Max. current (Imax):
- 19-27 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polycarbonate (PC)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-125 °C
- Material:
- Copper
- Voltage max:
- 600V
- UL-File No.:
- E44245

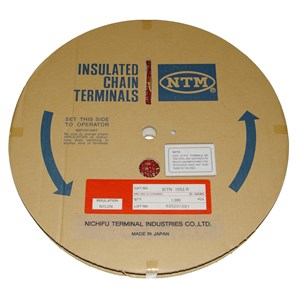

Ring terminals on reel, HAB ICTBX-series
Ringkabelskor HAB ICTBX-serien_vp
Insulated terminals on reel from Nichifu.
Brazed seam
Easy entry
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Max. current (Imax):
- 19-48 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polycarbonate (PC)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-125 °C
- Material:
- Copper
- Voltage max:
- 600V
- UL-File No.:
- E44245
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- Yes
- Max. current (Imax):
- 19 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Red
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-105 °C
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- Yes
- Total: 4
