- Total: 1

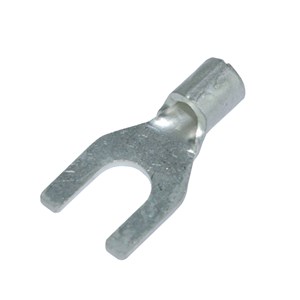

Gaffelkabelskor (svetsad)
99301
B-serien
Material: 99.95% ren Cu
Ytbehandling: > 4mc Sn
Temperaturområde: Upp till 110° C
Svetsad hals
- Reel/roll packaging:
- No
- Max. current (Imax):
- 16-62 A
- Flange shape:
- Fork shape
- According to DIN:
- No
- Insulation:
- None
- Colour insulation:
- Other
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Operating temperature:
- -55-110 °C
- Material:
- Copper
- Neck type:
- Welded
- UL-File No.:
- E44245, E42024
- Total: 1
