- Total: 3
Batteridrivet multiverktyg
NMBT MAT_VP
Battery tool for multiple applications with interchangeable heads. The battery tool is sold as one article no. The accessories are sold as separate items so there is no need to invest in applications not needed for the end user.
Tool can be used for following applications- Hole punch head for 19.1mm rod. MAT PH- DIN-Rail cutter. MAT DRC- Cutter for threaded bolt. MAT TR- Head for crimp dies. MAT NH- Cable cutter for Aluminum, Copper & ACSR-cable. MAT CC
MAT ADAPTER is needed to fit MAT TR and MAT CC.
The Tool comes in a plastic case together with a Li-Ion battery and a charger from Bosch.
Pressure: 700barForce: 6.7 tonLength: 410mmWeight: 3.9kg
- Grip design:
- Other
- With impact protection:
- No
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 0 .
- With automatic return:
- No
- Cycle time:
- 5 s
- Compression force:
- 67 kN
- Suitable for:
- Various applications
- Suitable for steel wire braiding:
- Yes, No
- Replaceable cutting head:
- Yes
- Cutting jaws exchangeable:
- Yes
- With strip function:
- No
- Insulated:
- No
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Accumulator-hydraulic
- For component:
- Non-insulated Cu tube and sheet terminals
- Isolation protection 1000 V:
- No
- With spring:
- N/A
- Compression shape:
- Universal (exchangeable inserts)
- VDE tested:
- No

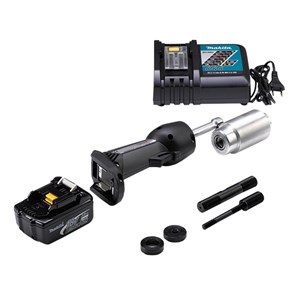

Powerlec Vario
Powerlec Vario_vp
Sladdlös hydraulisk pump inklusive stansar M12-M63 samt Li-Ion batteri. 360° roterande cylinder för maximal flexibilitet.
För stansning av stål, rostfritt stål och aluminium.
Gängad för 19 mm (3/4 ”) dragstång.
Tillgängliga dragstänger: för stansar gängade för 9,5 mm (3/8 "), 11,1 mm och 19 mm (3/4") gängor.

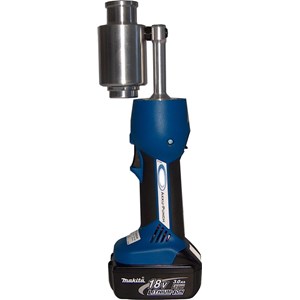

Akku-Punch
AKKU-PUNCH
High-capacity Akku Hydraulic Punch Driver including lithium-ion battery. Hydraulic cylinder rotates for maximum flexibility. Easy handling and low weight of 2 kg enable fatigue-free punching.
When using AKKU PUNCH, the hydraulic cylinder will not be bottomed out and knockout punches will not be damaged. The punching process is monitored electronically. When the punching process is complete, AKKU PUNCH is switched off automatically.
Max. mild steel sheet thickness (punching capacities)
Round Punches up to 63.5 mm 3.0 mm
Round Punches up to 82.0 mm 2.5 mm
Square Punches up to 68.0 × 68.0 mm 3.0 mm
Square Punches up to 92.0 × 92.0 mm 2.5 mm
Rectangular Punches up to 46.0 × 92.0 mm 2.5 mm
Max. stainless steel sheet thickness (punching
capacities)
Round Punches up to 63.5 mm 2.5 mm
Square Punches up to 68.0 × 68.0 mm 1.5 mm
Rectangular Punches up to 46.0 × 92.0 mm 1.5 mm
Technical data:
Weight 2 kg
Punching capacity 60 KN
Battery voltage 18 V DC
Battery capacity 3 Ah
Battery charging time 22 min
Built-in lamp
Supplied in plastic case including Knockout
Punch Set POWER SPLIT (Slug Splitting Knockout Punches, three point design, for mild steel).
Scope of supply/delivery:
• 1 AKKU PUNCH Hydraulic Punch Driver
• 1 lithium-ion battery 18 V, 3 Ah
• 1 battery charger
• 1 draw stud 9.5 × 19.0 mm (3/8” × 3/4”) UNF
• 1 draw stud 19.0 × 125 mm (3/4” × 125 mm) UNF
• 1 spacer
• 1 tube lubricant
• 1 HSS-E Pilot Drill (Multi Step Drill)
• 1 each Knockout Punch M 16 – M 20 – M 25 – M 32 – PG 16
• 1 plastic case
- Total: 3
