- Total: 5

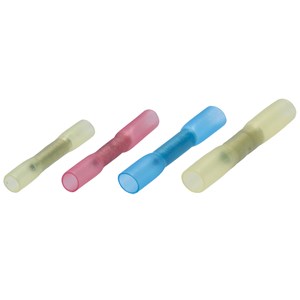

Shrink Splice Sleeves CS-series
21902
Features
Protects splices from water, condensation, salt, and corrosion
Provides strain relief.
Protects against vibration in rugged environments.
Completely insulates and protects electrical connections
Has adhesive lining for protection that is more reliable than conventional splices
Applications
Automotive/truck wiring repair and maintenance.
Automotive accessory installations.
OEM automotive/truck/RV wire harness fabricationMarine electronics.
Fleet maintenance.
Commercial wiring (pumps/pools/spas).
Insulation: Polyethylene (PE) Ethylene Vinyl Acetate (EVAc)
Internal adhesive: PE-LD
Shrinkage temperature: 100 °C
Shrinkage rate: 3:1
Halogen-free
Transparent insulation, which means that visual inspection can be done after shrinkage.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- UL model
- Number of branches:
- 0 N/A
- Insulation:
- Shrink insulation PE
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 600 V
- Type of connection:
- Other
- Oil stop/centre bar:
- No
- Surface protection:
- Tinned
- Operating temperature:
- -55-125 °C
- Material:
- Copper
- Voltage max:
- 600V
- Packaging:
- Loose piece

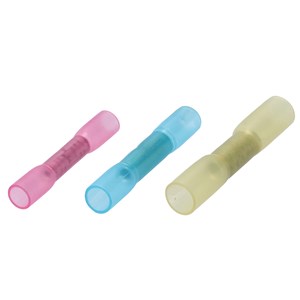

Heat Shrink Butt NS-series
21903
Features
Protects splices from water, condensation, salt, and corrosion
Provides strain relief
Protects against vibration in rugged environments
Completely insulates and protects electrical connections
Has adhesive lining for protection that is more reliable than conventional splices
Applications
Automotive/truck wiring repair and maintenance.
Automotive accessory installations.
OEM automotive/truck/RV wire harness fabrication
Marine electronics.
Fleet maintenance.
Commercial wiring (pumps/pools/spas).
Insulation: High Density Polyolefin with Polyamid (PA) meltable adhesive
Shrink temperature: 120° C
Shrink ratio: 3:1
Halogen free
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Standard version
- Number of branches:
- 0 N/A
- Insulation:
- Shrink insulation PE
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 600 V
- Type of connection:
- Parallel connector
- Oil stop/centre bar:
- No
- Surface protection:
- Tinned
- Operating temperature:
- -40-105 °C
- Material:
- Copper
- Voltage max:
- 600V
- Packaging:
- Loose piece
- UL-File No.:
- E44245
Heat Shrink Butt DS-series
21901
Features
Protects splices from water, condensation, salt, and corrosion
Provides strain relief
Protects against vibration in rugged environments
Completely insulates and protects electrical connections
Has adhesive lining for protection that is more reliable than conventional splices
Applications
Automotive/truck wiring repair and maintenance.
Automotive accessory installations.
OEM automotive/truck/RV wire harness fabricationMarine electronics.
Fleet maintenance.
Commercial wiring (pumps/pools/spas).
Insulation: Polyamid (PA) nylon with meltable adhesive
Shrink temperature: 120° C
Shrink ratio: 3:1
Halogen free
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- UL model
- Number of branches:
- 0 N/A
- Insulation:
- Polyamide (PA)
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 600 V
- Type of connection:
- Other
- Oil stop/centre bar:
- No
- Surface protection:
- Tinned
- Operating temperature:
- -55-125 °C
- Material:
- Copper
- Voltage max:
- 600V
- Packaging:
- Loose piece
Heat Shrink Butt TS-series
21904
Features
Protects splices from water, condensation, salt, and corrosion
Provides strain relief
Protects against vibration in rugged environments
Completely insulates and protects electrical connections
Has adhesive lining for protection that is more reliable than conventional splices
Applications
Automotive/truck wiring repair and maintenance.
Automotive accessory installations.
OEM automotive/truck/RV wire harness fabrication
Marine electronics.
Fleet maintenance.
Commercial wiring (pumps/pools/spas).
Insulation: Polyamid (PA) nylon with meltable adhesive
Shrink temperature: 120° C
Shrink ratio: 3:1
Halogen free
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Standard version
- Max. current (Imax):
- 19-48 A
- Number of branches:
- 0 N/A
- Insulation:
- Shrink insulation PE
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 600 V
- Type of connection:
- Other
- Oil stop/centre bar:
- No
- Surface protection:
- Tinned
- Operating temperature:
- -40-105 °C
- Material:
- Copper
- Voltage max:
- 600V
- Packaging:
- Loose piece

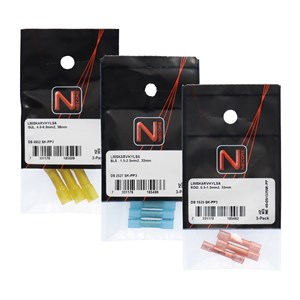

Limskarvhylsor i Konsumentförpackning
Butiksförpackningar - Limskarvar
Ett stort urval av kabelskor(isolerade, oisolerade, rör, plåt & limkabelskor) förpackade i påse(Pin-Pac) med eurohål och streckkod, ett perfekt koncept för återförsäljare med butik.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- UL model
- Number of branches:
- 0 N/A
- Insulation:
- Polyamide (PA), Shrink insulation PE
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 600 V
- Type of connection:
- Other
- Oil stop/centre bar:
- No
- Surface protection:
- Tinned
- Operating temperature:
- -55-125 °C
- Material:
- Copper
- Voltage max:
- 600V
- Packaging:
- Loose piece, Bag
- Total: 5
