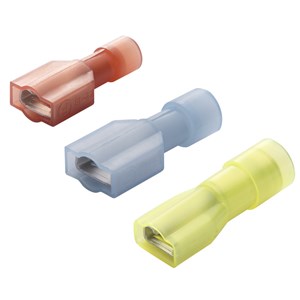

Fully Insulated female disconnects N-series
64602
Nylon-insulated terminals. Neck with Easy Entry for faster and easier insertion of the conductor into the terminal. This reduces the risk of bent strands, thereby eliminating the risk of flashover and degraded electrical performance. Manufactured from brass and electro-tin plated for optimal corrosion protection.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10-24 A
- Insulation:
- Fully isolated
- Colour insulation:
- Blue, Yellow, Red
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-105 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- Yes
- Flammability rating (UL94):
- V2
- UL-File No.:
- E78965

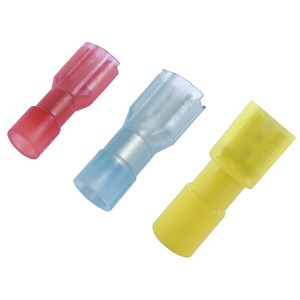

Fully Insulated female disconnects A PLD-series
66303
Nylon-insulated terminals. They have an extended copper sleeve to achieve minimal resistance and maximum tensile strength. The terminals can be crimped in any direction. Neck with Easy Entry for faster and easier insertion of the conductor into the terminal. This reduces the risk of bent strands, thereby eliminating the risk of flashover and degraded electrical performance. Manufactured from brass and electro-tin plated for optimal corrosion protection.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10-24 A
- Insulation:
- Fully isolated
- Colour insulation:
- Blue, Yellow, Red
- With cam clamp:
- No
- With tap spreader:
- No
- Strip length:
- 6-7 mm
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-105 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- Yes
- Flammability rating (UL94):
- V2

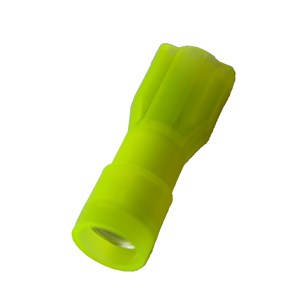

Fully insulated Tab female disconnects FLFF PL-series
Helisolerade flatstifthylsor_FLFF PL
Nylon-insulated terminals. Neck with Easy Entry for faster and easier insertion of the conductor into the terminal. This reduces the risk of bent strands, thereby eliminating the risk of flashover and degraded electrical performance. Manufactured from brass and electro-tin plated for optimal corrosion protection.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10-24 A
- Insulation:
- Fully isolated
- Colour insulation:
- Blue, Yellow, Red
- With cam clamp:
- No
- With tap spreader:
- No
- Strip length:
- 6-7 mm
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- Yes
- Flammability rating (UL94):
- V2
