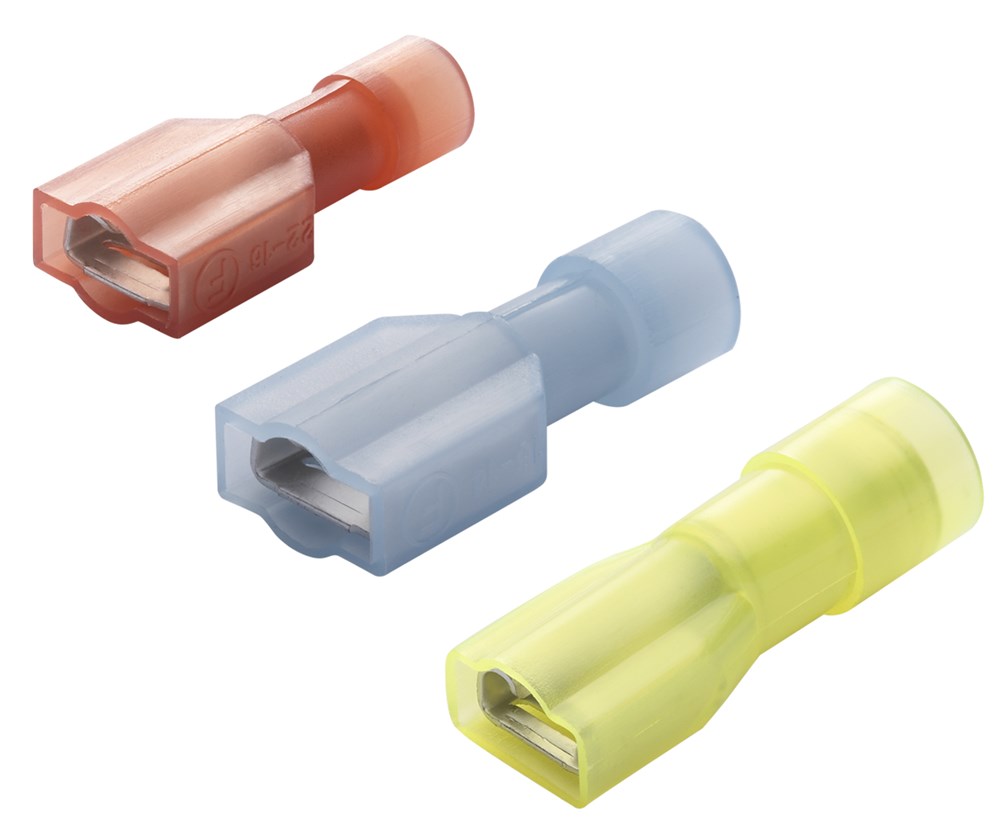

Fully insulated Tab female disconnects FLFF PL-series
Easy Entry
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10 A, 15 A, 24 A
- Insulation:
- Fully isolated
- Colour insulation:
- Red, Blue, Yellow
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V0
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- Yes
Show more
Item List
- Total: 3
- Total: 3
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 3
| Product Description | MOQ | Unit | Nominal cross section | AWG-range | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|---|
| FULLY INSULATED RECEPTACLE RED, 6.3x0.8mm | 100 . | pcs | 0.5-1.65 mm² | 22-16 . | Flat 6.3x0.8 mm |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE BLUE, 6.3x0.8mm | 100 . | pcs | 1.04-2.63 mm² | 16-14 . | Flat 6.3x0.8 mm |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE YELLOW, 6.3x0.8mm | 100 . | pcs | 2.63-6.64 mm² | 12-10 . | Flat 6.3x0.8 mm |
Yes
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | Approved according to CE | With approval according to UL | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|
| FULLY INSULATED RECEPTACLE RED, 6.3x0.8mm |
|
|
|
Yes
|
|
|
| FULLY INSULATED RECEPTACLE BLUE, 6.3x0.8mm |
|
|
|
Yes
|
|
|
| FULLY INSULATED RECEPTACLE YELLOW, 6.3x0.8mm |
|
|
|
Yes
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Fire classification | Material | Voltage max | Halogen free | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FULLY INSULATED RECEPTACLE RED, 6.3x0.8mm | Yes | Yes | Bushing | 10 A | Fully isolated | Red | No | No | Polyamide (PA) | According to UL94V0 | Brass | 300V | Yes |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE BLUE, 6.3x0.8mm | Yes | Yes | Bushing | 15 A | Fully isolated | Blue | No | No | Polyamide (PA) | According to UL94V0 | Brass | 300V | Yes |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE YELLOW, 6.3x0.8mm | Yes | Yes | Bushing | 24 A | Fully isolated | Yellow | No | No | Polyamide (PA) | According to UL94V0 | Brass | 300V | Yes |
Yes
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| FULLY INSULATED RECEPTACLE RED, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Fully Insulated Receptacle - Polyamide | N1507FLFFPL |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE BLUE, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Fully Insulated Receptacle - Polyamide | N2507FLFFPL |
Yes
|
|
|
| FULLY INSULATED RECEPTACLE YELLOW, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Fully Insulated Receptacle - Polyamide | N4607FLFFPL |
Yes
|
|
|
- Total: 3
