- Total: 11

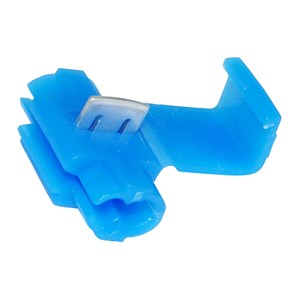

Self stripping tap connectors
66806
Electrically connects a (tap) wire end to a through (run) wire and insulates the connection. Designed for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems, automotive/boat/RV wiring. Only for copper wires.
Maximum Recommended Voltage Rating: 600 V
Temperature range: Up to 90º C (194º F)
- Model:
- Branch
- Nominal current:
- 10-24 A
- Colour insulation:
- Blue, Yellow, Red
- Grease filling against corrosion:
- No
- Max. number of cores:
- 2 .
- Temperature:
- -40-90 °C
- Interrupt free shifting:
- Yes
- Colour:
- Yellow, Red, Blue
- Material insulation:
- Polypropylene (PP)
- Connector type:
- Spliceing connector

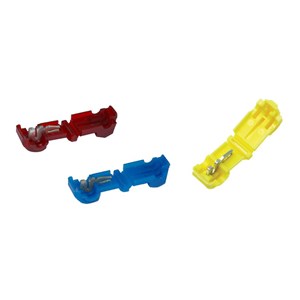

Self stripping tap connectors
66807
Tap connectors with male tab connection.
Industrial quality from 3M. Electrically connects a through (run) wire and a male tab. Only for copper wires.
Maximum Recommended Voltage Rating: 600 V
- Model:
- Single-conductor connector
- Colour insulation:
- Blue, Yellow, Red
- Grease filling against corrosion:
- No
- Max. number of cores:
- 1 .
- Temperature:
- -40-105 °C
- Interrupt free shifting:
- No
- Colour:
- Yellow, Red, Blue
- Material insulation:
- Polypropylene (PP)
- Connector type:
- Spliceing connector

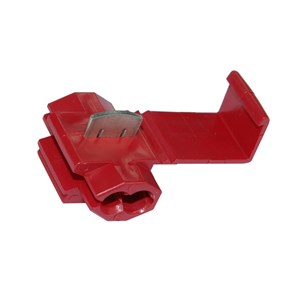

Self stripping tap connectors
66805
Japanese quality tap connectors.
Electrically connects a (tap) wire end to a through (run) wire and insulates the connection. Designed for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems, automotive/boat/RV wiring. Only for copper wires.
Maximum Recommended Voltage Rating: 600 V
Temperature range: Up to 90º C (194º F)
- Model:
- Branch
- Colour insulation:
- Blue, Red
- Grease filling against corrosion:
- No
- Max. number of cores:
- 2 .
- Temperature:
- -40-105 °C
- Interrupt free shifting:
- Yes
- Colour:
- Red, Blue
- Material insulation:
- Polypropylene (PP)
- Connector type:
- Spliceing connector
- UL-File No.:
- E44245

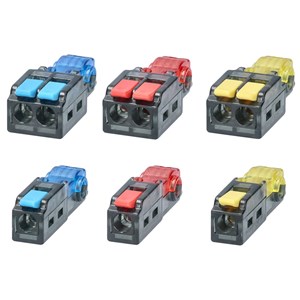

Splicing connectors for tap wires
Avgreningsklämma_SCT-serien_vp
Splicing connector for 1 or 2 tap wires from a run through cable. The run through cable is connected with Insulation Displacement Connection (IDC).
A quick connection can made on mid-span of a wire without cutting and stripping. A good solution when space is limited or if the cable is so short it could be difficult to connect to connector again after cut and stripped.
Tap wires are connected with lever.
Transparent cover for easy inspection of connector. No tool needed. Solid conductors can be connected when closed.
Stripping range: 10 mm
Contact resistance: ≤0. 015 Ω
Insulation resistance: ≥1000 MΩ
Material
Contact: Copper
Plastic parts: Polycarbonate (PC)
Spring: Stainless steel
- Nominal voltage:
- 450 V
- Nominal current:
- 24 A
- Transparent:
- Yes
- Number of clamp positions:
- 1-2 .
- With operation lever:
- Yes
- Suitable for solid core:
- Yes
- Suitable for flexible core:
- Yes
- Suitable for multi-wire core:
- Yes
- Colour:
- Red, Blue

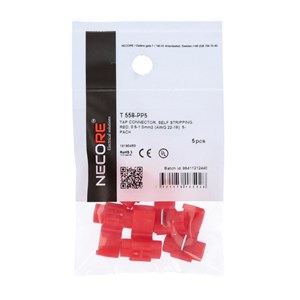

Skarvklämmor i Konsumentförpackning
Skarvklämmor_Pin-Pac_vp
Ett stort urval av kabelskor(isolerade, oisolerade, rör, plåt & limkabelskor) förpackade i påse(Pin-Pac) med eurohål och streckkod, ett perfekt koncept för återförsäljare med butik.
- Model:
- Branch
- Nominal current:
- 10-15 A
- Colour insulation:
- Blue, Yellow, Red
- Grease filling against corrosion:
- No
- Max. number of cores:
- 2 .
- Temperature:
- -40-90 °C
- Interrupt free shifting:
- Yes
- Colour:
- Yellow, Red, Blue
- Material insulation:
- Polypropylene (PP)
- Connector type:
- Spliceing connector

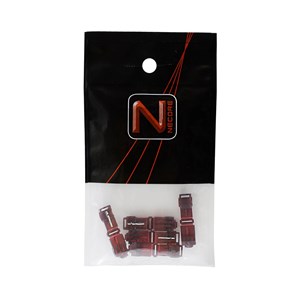

Förgreningskontakter för flatstiftsanslutning i Konsumentförpackning
Honkontakt_för_Flatstift-Pin-Pac_vp
Ett stort urval av kabelskor(isolerade, oisolerade, rör, plåt & limkabelskor) förpackade i påse(Pin-Pac) med eurohål och streckkod, ett perfekt koncept för återförsäljare med butik.
- Model:
- Single-conductor connector
- Colour insulation:
- Blue, Red
- Grease filling against corrosion:
- No
- Max. number of cores:
- 1 .
- Temperature:
- -40-105 °C
- Interrupt free shifting:
- No
- Colour:
- Red, Blue
- Material insulation:
- Polypropylene (PP)
- Connector type:
- Spliceing connector

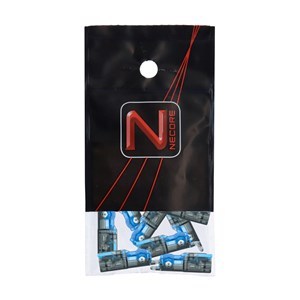

Splicing connectors for tap wires - Consumer pack
Avgreningsklämma_SCT-serien_Pin-pac_vp
Splicing connector for 1 or 2 tap wires from a run through cable. The run through cable is connected with Insulation Displacement Connection (IDC).
Tap wires are connected with lever.
Transparent cover for easy inspection of connector. No tool needed. Solid conductors can be connected when closed.
Stripping range: 10 mm
Contact resistance: ≤0. 015 Ω
Insulation resistance: ≥1000 MΩ
Material
Contact: Copper
Plastic parts: Polycarbonate (PC)
Spring: Stainless steel
- Nominal voltage:
- 450 V
- Nominal current:
- 24 A
- Transparent:
- Yes
- Number of clamp positions:
- 1-2 .
- With operation lever:
- Yes
- Suitable for solid core:
- Yes
- Suitable for flexible core:
- Yes
- Suitable for multi-wire core:
- Yes
- Colour:
- Red, Blue

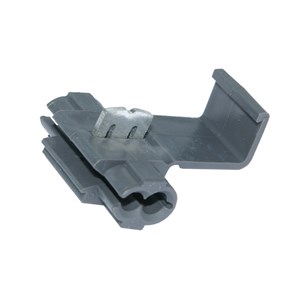

Skarvklämma
Skarvklämma 557_vp
I skarvklämman kan 2 kablar från samma håll skarvas. Kablarna behöver inte skalas innan skarvning. Endast för kopparkabel.
Spänning: 600 V
Self stripping tap connectors
66801
Tap connectors in industrial quality from 3M.
Electrically connects a (tap) wire end to a through (run) wire and insulates the connection. Designed for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems, automotive/boat/RV wiring. Only for copper wires.
Maximum Recommended Voltage Rating: 600 V
Temperature range: Up to 90º C (194º F)
Flameretardant
- Model:
- Branch
- Colour insulation:
- Blue, Brown, Yellow
- Grease filling against corrosion:
- No
- Max. number of cores:
- 2 .
- Temperature:
- -40-90 °C
- Interrupt free shifting:
- Yes
- Colour:
- Yellow, Brown, Blue
- Material insulation:
- Polypropylene (PP)
- Connector type:
- Spliceing connector
Self stripping tap connectors
66803
Tap connectors with male tab connection.
Industrial quality from 3M. Electrically connects a through (run) wire and a male tab. Only for copper wires.
Maximum Recommended Voltage Rating: 600 V
- Model:
- Single-conductor connector
- Colour insulation:
- Blue, Red
- Grease filling against corrosion:
- No
- Max. number of cores:
- 1 .
- Temperature:
- -40-105 °C
- Interrupt free shifting:
- No
- Colour:
- Red, Blue
- Material insulation:
- Polypropylene (PP)
- Connector type:
- Spliceing connector
Self stripping tap connectors
87775
Electrically connects a (tap) wire end to a through (run) wire and insulates the connection. Designed for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems, automotive/boat/RV wiring. Only for copper wires.
Maximum Recommended Voltage Rating: 600 V
Temperature range: Up to 90º C (194º F)
- Model:
- Branch
- Colour insulation:
- Red
- Grease filling against corrosion:
- No
- Max. number of cores:
- 2 .
- Temperature:
- -40-90 °C
- Interrupt free shifting:
- Yes
- Colour:
- Red
- Material insulation:
- Polypropylene (PP)
- Connector type:
- Spliceing connector
- Total: 11
