- Total: 8

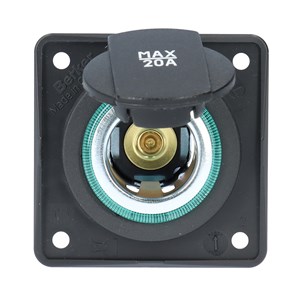

Eluttag 12-24V, Cigg - INTEGRO Berker
Eluttag_12-24V_cigg_Berker_vp
Eluttag av typ Cigg-plugg 12-24 VDC med tryck 20 A för motorfordon.
Max strömuttag: 20A med 2.5 mm² och max 15A med 1.5 mm² kabel.
Flatsiftanslutning: 6.3 x 0.8 mm
Mått: 55.5 mm x 55.5 mm
Installationsdjup exklusive kabelanslutning: 46 mm
Power socket outlet 12V + SAT complete with frame INTEGRO Flow
Berker uttag cigg och sat med ram_vp
Power socket outlet 12V + SAT socket outlet12VDC, Max 10A
Flat connector
Double F-sockets
Installation depht without cable lug: 28mm
This item is delivered in retail package with bar code.

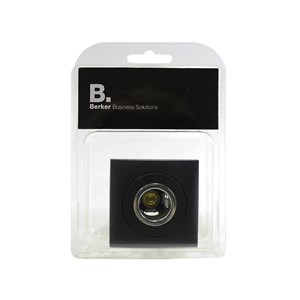

Power socket outlet 12V complete with frame INTEGRO Flow
Berker uttag cigg med ram_vp
Power socket outlet
6-24 VDC
Ratet current: Max 20A with 2,5mm2 and max 15A with 1,5mm2 cable.
Flat connector size 6.3 x 0.8mm
Installation depth without cable lug: 46mmCompliant with: SAE J563 (Feb. 2009), VW standard TL82285 (Apr. 2007)
This item is delivered in retail package with bar code.

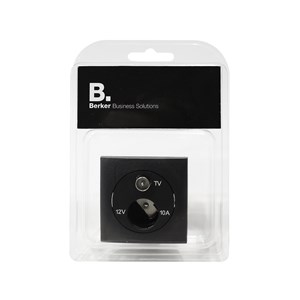

Power socket outlet 12V + TV complete with frame INTEGRO Flow
Berker uttag cigg och TV med ram_vp
Power socket outlet 12V + TV socket outlet12VDC, Max 10A
Flat connector
With IEC jack (male)
Connection in F system on the rear.
Installation depth without cable lug: 28mm
This item is delivered in retail package with bar code.

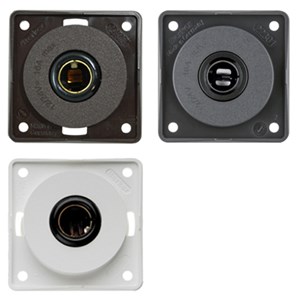

Power socket outlet DIN, 12-24V - INTEGRO Berker
184803
Power socket outlet DIN 16A, 6-24VDC
Size: 55.5 mm x 55.5 mm
Installation depth (without cable lug): 30 mm
Flat connector: 6.3 x 0.8 mm
DIN EN ISO 4165
- Impact strength:
- IK05
- With on/off switch:
- No
- Lockable:
- No
- Eject-mechanism:
- No
- Model:
- Built-in
- Colour:
- Brown, Anthracite, Polar white
- Type of product:
- Uttag
- Variant:
- DIN

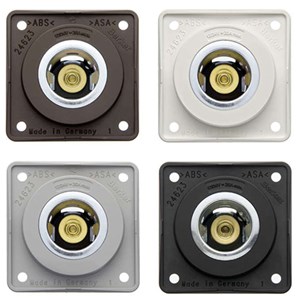

Power socket outlet 12-24V - INTEGRO Berker
99019
Power socket outlet 6-24 VDC
Ratet current: Max 20A with 2.5mm² and max 15A with 1.5mm² cable.
Flat connector size 6.3 x 0.8mm
Size: 55.5mm x 55.5mm
Installation depth without cable lug: 46mm
Compliant with: SAE J563 (Feb. 2009), VW standard TL82285 (Apr. 2007)
- Impact strength:
- IK05
- With on/off switch:
- No
- Metallic colour:
- No
- Lockable:
- No
- Eject-mechanism:
- No
- Min. depth of built-in installation box:
- 46 mm
- Colour:
- Grey, Brown, Anthracite, Polar white
- Type of product:
- Uttag
- Variant:
- Cigg
- Number of phases:
- 1 .

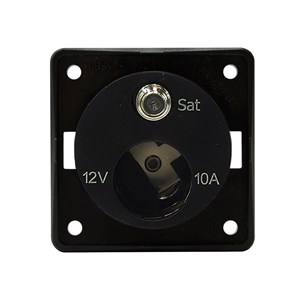

Eluttag, Cigg 12-24V + SAT - INTEGRO Berker
Berker eluttag 12V + SAT_vp
Power socket outlet 12V + SAT socket outlet 12VDC, Max 10A
Flat connector
Double F-sockets
Size: 55.5mm x 55.5mm
Installation depht without cable lug: 28mm
Power socket outlet 12-24V + TV - INTEGRO Berker
Berker eluttag 12V + TV_vp
Power socket outlet 12V + TV socket outlet12VDC, Max 10A
Flat connector
With IEC jack (male)
Connection in F system on the rear.
Size: 55.5mm x 55.5mm
Installation depth without cable lug: 28mm
- Total: 8
