- Total: 6

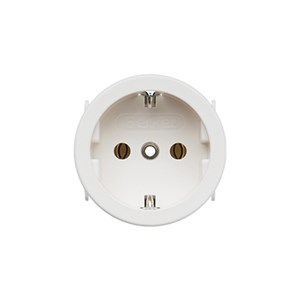

SCHUKO socket outlet 250V complete with frame INTEGRO Flow
Berker uttag 250V med ram_vp
SCHUKO socket outlet with enhanced contact protection
16 A, 250 VAC~
IP21
Screw terminals
Suitable for contact protection box Ø45 mm and Ø49 mm
Standard IEC 60884-1
Enhanced contact protection (child protection) according to IEC 60884-1.
This item is delivered in retail package with bar code.

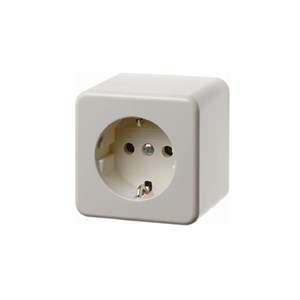

Socket outlet 250V - Berker
Uttag SCHUKO utanpåliggande 250V_vp
Socket outlet Schuko 16 A, 250 VAC IP21
Screwterminals
Width: 61 mm
Height: 61 mm
Depth: 47 mm
- Impact strength:
- IK02
- With on/off switch:
- No
- Lockable:
- No
- Eject-mechanism:
- No
- Number of phases:
- 1 .

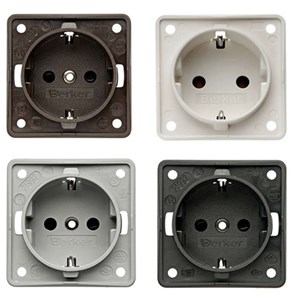

Outlet 250 VAC - INTEGRO Berker
184501
Socket outlet grounded Schuko with child protection 16A, 250 VAC IP21
Screwterminals fits wall boxes Ø45 mm and Ø49 mm
Standard IEC 60884-1
- Impact strength:
- IK05
- With on/off switch:
- No
- Metallic colour:
- No
- Lockable:
- No
- Eject-mechanism:
- No
- Min. depth of built-in installation box:
- 32 mm
- Colour:
- Black, Grey, Brown, White
- Type of product:
- Uttag
- Variant:
- Schuko
- Number of phases:
- 1 .
Outlet 250 VAC - INTEGRO Berker
184502
Socket outlet grounded Schuko with child protection 16A, 250 VAC IP21
Screwterminals fits wall boxes Ø45 mm and Ø49 mm
Standard IEC 60884-1
- Impact strength:
- IK05
- Nominal voltage:
- 250 V
- Connection type:
- Screwed terminal
- Mounting method:
- Flush-mounted
- Over voltage protection:
- No
- With built-in USB power supply:
- No
- With on/off switch:
- No
- Surface finishing:
- Matt
- Rotated central insert:
- No
- Compatible with Apple HomeKit:
- No
- Compatible with Google Assistant:
- No
- Compatible with Amazon Alexa:
- No
- IFTTT support available:
- No
- Imprint/indication:
- None
- With signal lamp:
- No
- Label space/information surface:
- No
- With hinged lid:
- No
- Special power supply:
- No special power supply
- Protective contact:
- Yes
- With enhanced contact protection:
- No
- Metallic colour:
- No
- Lockable:
- No
- Eject-mechanism:
- No
- Insulated mounting:
- No
- With function lighting:
- No
- With orientation lighting:
- No
- Fault current protection:
- No
- With miniature fuse:
- No
- With loop through function:
- No
- Model:
- Protective contact (SCHUKO)
- Nominal current:
- 16 A
- Transparent:
- No
- Type of fastening:
- Mounting with screw
- Min. depth of built-in installation box:
- 32 mm
- Colour:
- Black, Grey, Brown, White
- Surface protection:
- Untreated
- Material:
- Plastic
- Type of product:
- Uttag
- Variant:
- Schuko
- Number of phases:
- 1 .
- Impact strength:
- IK05
- Nominal voltage:
- 125 V
- Connection type:
- Screwed terminal
- Mounting method:
- Flush-mounted
- Over voltage protection:
- No
- With built-in USB power supply:
- No
- With on/off switch:
- No
- Surface finishing:
- Matt
- Rotated central insert:
- No
- Compatible with Apple HomeKit:
- No
- Compatible with Google Assistant:
- No
- Compatible with Amazon Alexa:
- No
- IFTTT support available:
- No
- Imprint/indication:
- None
- With signal lamp:
- No
- Label space/information surface:
- No
- With hinged lid:
- No
- Special power supply:
- No special power supply
- Protective contact:
- Yes
- With enhanced contact protection:
- No
- Metallic colour:
- No
- Lockable:
- No
- Eject-mechanism:
- No
- Insulated mounting:
- No
- With function lighting:
- No
- With orientation lighting:
- No
- Fault current protection:
- No
- With miniature fuse:
- No
- With loop through function:
- No
- Model:
- US/CA (NEMA 5-15) (type B)
- Nominal current:
- 15 A
- Transparent:
- No
- Type of fastening:
- Mounting with screw
- Min. depth of built-in installation box:
- 16-32 mm
- Colour:
- Black, Grey, Brown, White, Anthracite, Polar white
- Surface protection:
- Untreated
- Material:
- Plastic
- Type of product:
- Uttag
- Variant:
- Australien, Danmark, UK, Schweiz, USA/Kanada
- Number of phases:
- 1 .
