Voltage Tester

YCI 616B

YCI 616B_VP

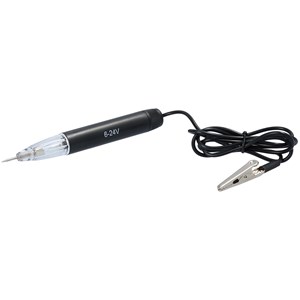

YCI 616B Testmejsel med sladd och krokodilklämma. Den sylvassa spetsen gör att man kan testa direkt genom isoleringen. Längd (mejsel): 115 mm

.

Show filter/search products (1)

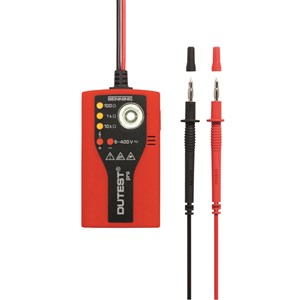

Continuity and Circuit Tester DUTEST® pro For testing of high-and low-resistance the result of the continuity test and diode test is shown via LED and buzzer optical indicator of resistance by 3 LED’s: 0 - 100 Ω/1 kΩ/ 10 kΩ acoustic indication via testing buzzer up to approx. 100 Ω external-voltage indication: 6 V - 400 V polarity indication single-pole external conductor test (phase) non-contact cable break detector pinpointed high luminous power LED torch buzzer and LED power are individual adjustable in 4 steps rear of the unit with magnet and belt clip measurement category: CAT lll 300 V

Measuring circuit category:: CAT III
Type of test:: 2-pole
Voltage indication:: LED
Voltage measuring range:: 6-400 V
Indication of direction of field rotation:: No
Resistance measurement:: 0-100 Ohm
Single pole phase indication:: Yes
Contact less voltage detection:: Yes
Background lighting LC-indication:: No
Test prod protection:: Yes
Measuring point lightning:: No
Continuity test:: No
Current supply:: Battery

.

Show filter/search products (1)

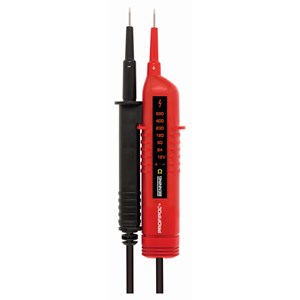

Spänningsprovare, 12-690 V AC/DC

Spänningsprovare 12-690 v ac-dc_vp

Voltage Tester and Continuity Tester PROFIPOL®+, with impact-proof and robust housing. Voltage: 12 V - 690 V AC/ DC (LED) Display stages: 12, 24, 50, 120, 230, 400, 690 V AC / DC (voltage display even in case of empty batteries) Acoustic and optical continuity test up to 100 kΩ (buzzer / yellow Ω-LED) Single-pole external conductor test (phase) (red LED) Polarity indication (+ /- LED) Non-contact phase tester/ detector of cable breaks (yellow LED) Detent pin for one-hand operations e.g. for voltage test in sockets and safe storage of the voltage tester. Protection: IP 54 (dust/splash proof). Built and approved acc. to IEC / EN 61243-3:2015. Over voltage category CAT III 600 V, CAT II 690 V. Incl. 2 x 1.5 V micro batteries (LR03 / AAA)

Measuring circuit category:: CAT III
Type of test:: 2-pole
Voltage indication:: LED
Voltage measuring range:: 12-690 V
Load switchable:: No
Indication of direction of field rotation:: No
Continuity indication:: Optic/acoustic
Single pole phase indication:: Yes
Contact less voltage detection:: No
Data hold:: No
Background lighting LC-indication:: No
Test prod protection:: No
Measuring point lightning:: No
Continuity test:: Yes
Current supply:: With and without battery

.

Show filter/search products (1)

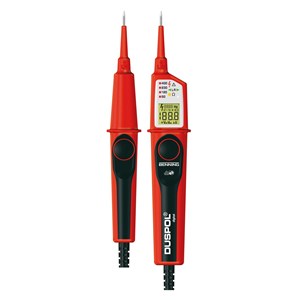

DUSPOL DIGITAL PLUS

DUSPOL DIGITAL PLUS_VP

DUSPOL DIGITAL PLUS Digital spänningsprovare med fasföljdsvisning och lastinkoppling. Belyst 3-siffrig LCD-display för lik- och växelspänning. Fasföljdsvisning och fasprovning på LCD, polaritetsindikering på LED. Vibrationslarm för spänningsavkänning. Punktbelysning för mörka mätplatser. Mäter steglöst lik- och växelspänning från 1.5-750 V. Drivs av 2 st AAA batterier. Temperaturområde: -10º C till +55º C Skyddsklass: IP64 Godkännanden: IEC/EN 61243-3 (DIN VDE 0682-401)

Measuring circuit category:: CAT III
Type of test:: 2-pole
Voltage indication:: LED/LCD
Voltage measuring range:: 1-1000 V
Indication of direction of field rotation:: Yes
Continuity indication:: Optic/acoustic
Resistance measuring range:: 0.1-300 kOhm
Single pole phase indication:: Yes
Contact less voltage detection:: Yes
Background lighting LC-indication:: Yes
Test prod protection:: Yes
Measuring point lightning:: No
Continuity test:: Yes
Current supply:: Battery

.

Show filter/search products (1)

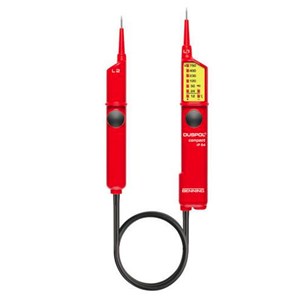

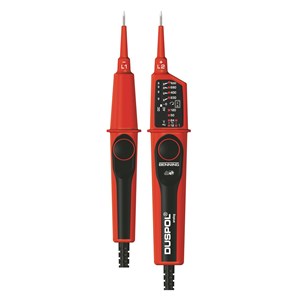

DUSPOL EXPERT

DUSPOL EXPERT_VP

DUSPOL EXPERT Spännings- och genomgångsprovare med fasföljdsvisning och lastinkoppling. Indikeringssteg: 12, 24, 50, 120, 230, 400, 690 V LED Fasföljdsvisning och fasprovning på LCD, polaritetsindikering på LED. Vibrationslarm för spänningsavkänning. Punktbelysning för mörka mätplatser. Drivs av 2 st AAA batterier. Temperaturområde: -10º C till +55º C Skyddsklass: IP64 Godkännanden: IEC/EN 61243-3 (DIN VDE 0682-401)

Measuring circuit category:: CAT III
Type of test:: 2-pole
Voltage indication:: LED
Voltage measuring range:: 12-1000 V
Indication of direction of field rotation:: Yes
Continuity indication:: Optic/acoustic
Single pole phase indication:: Yes
Contact less voltage detection:: Yes
Background lighting LC-indication:: No
Test prod protection:: Yes
Measuring point lightning:: No
Continuity test:: Yes
Current supply:: Battery

.

Show filter/search products (1)

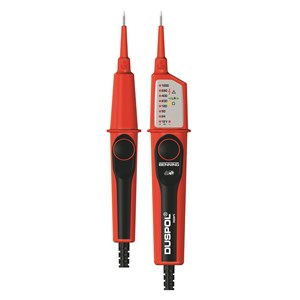

DUSPOL ANALOG

DUSPOL ANALOG_VP

DUSPOL ANALOG Analog spänningsprovare med fasföljdsvisning och lastinkoppling. Indikering av lik- och växelspänning med LED samt steglöst genom en dykspolevisare. Indikeringssteg: 12, 24, 50, 120, 230, 400, 690, 1000 V Fasföljdsvisning och fasprovning på LCD, polaritetsindikering på LED. Mäter likspänning från 12-750 V och växelspänning från 12-690 V. Temperaturområde: -10° C till +55° C Skyddsklass: IP64 Godkännanden: IEC/EN 61243-3 (DIN VDE 0682-401)
