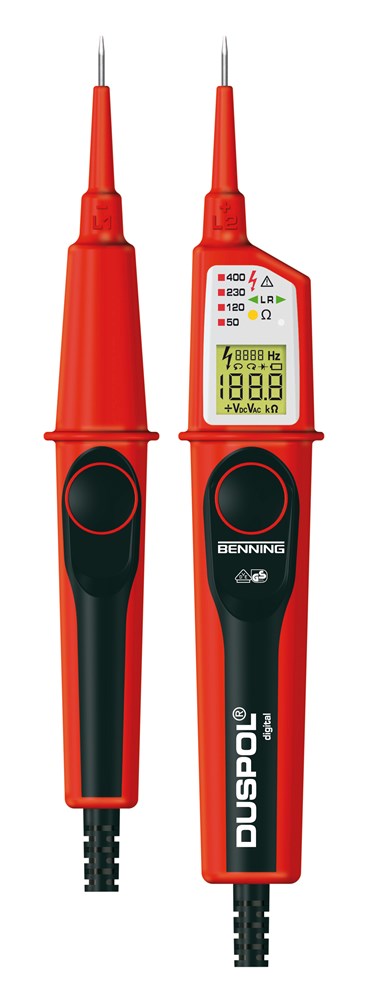

DUSPOL DIGITAL PLUS
DUSPOL DIGITAL PLUS
Digital spänningsprovare med fasföljdsvisning och lastinkoppling.
Belyst 3-siffrig LCD-display för lik- och växelspänning.
Fasföljdsvisning och fasprovning på LCD, polaritetsindikering på LED.
Vibrationslarm för spänningsavkänning.
Punktbelysning för mörka mätplatser.
Mäter steglöst lik- och växelspänning från 1.5-750 V.
Drivs av 2 st AAA batterier.
Temperaturområde: -10º C till +55º C
Skyddsklass: IP64
Godkännanden: IEC/EN 61243-3 (DIN VDE 0682-401)
Technical properties
- Measuring circuit category:
- CAT III
- Type of test:
- 2-pole
- Voltage indication:
- LED/LCD
- Voltage measuring range:
- 1-1000 V
- Indication of direction of field rotation:
- Yes
- Continuity indication:
- Optic/acoustic
- Resistance measuring range:
- 0.1-300 kOhm
- Single pole phase indication:
- Yes
- Contact less voltage detection:
- Yes
- Background lighting LC-indication:
- Yes
- Test prod protection:
- Yes
- Measuring point lightning:
- No
- Continuity test:
- Yes
- Current supply:
- Battery
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|
| DIGITAL SPÄNNINGSPROVARE, MÄTER VDC/VAC 1.5-750 STEGLÖST | 1 . | pcs |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Availability | ||
|---|---|---|---|
| DIGITAL SPÄNNINGSPROVARE, MÄTER VDC/VAC 1.5-750 STEGLÖST |
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Measuring circuit category | Type of test | Voltage indication | Voltage measuring range | Indication of direction of field rotation | Continuity indication | Resistance measuring range | Single pole phase indication | Contact less voltage detection | Background lighting LC-indication | Test prod protection | Measuring point lightning | Continuity test | Current supply | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DIGITAL SPÄNNINGSPROVARE, MÄTER VDC/VAC 1.5-750 STEGLÖST | CAT III | 2-pole | LED/LCD | 1-1000 V | Yes | Optic/acoustic | 0.1-300 kOhm | Yes | Yes | Yes | Yes | No | Yes | Battery |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| DIGITAL SPÄNNINGSPROVARE, MÄTER VDC/VAC 1.5-750 STEGLÖST | EC000494 - Voltage tester | 8.0 |
|
Test tools | DUSPOLDIGITALPLUS |
Yes
|
|
|
- Total: 1
