- Total: 2

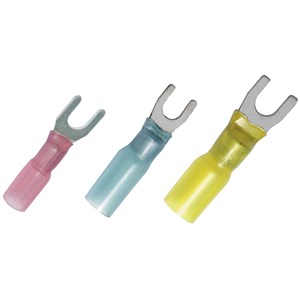

Heat-shrink insulated Spade terminals DS-series
22601
Duraseal krymphylsor DS-serien
Material: Förtent mässing
Isolering: Polyamid (PA) nylon med invändigt lim
Krymptemperatur: 180º C
Temperaturområde: -55° C till +125° C
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19-48 A
- Flange shape:
- Fork shape
- According to DIN:
- No
- Insulation:
- Polyamide (PA)
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Operating temperature:
- -55-125 °C
- Material:
- Copper
- Voltage max:
- 600V
Heat-shrink insulated Spade terminals TS-series
22602
Krymphylsor TS-serien "Lågpris"
Material: Förtent mässing
Isolering: Polyamid (PA) nylon med invändigt lim
Krymptemperatur: 180º C
Temperaturområde: -55° C till +125° C
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19-48 A
- Flange shape:
- Fork shape
- According to DIN:
- No
- Insulation:
- Polyamide (PA)
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Operating temperature:
- -55-125 °C
- Material:
- Copper
- Voltage max:
- 600V
- Total: 2
