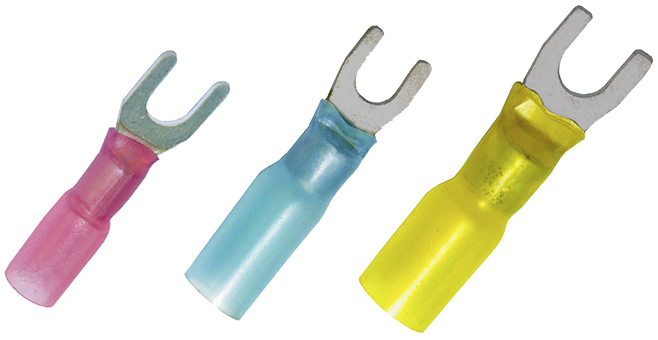

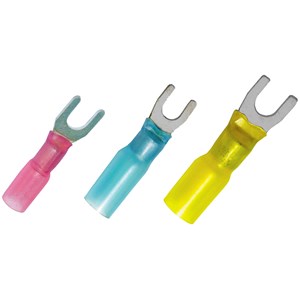

Heat-shrink insulated Spade terminals DS-series
Duraseal krymphylsor DS-serien
Material: Förtent mässing
Isolering: Polyamid (PA) nylon med invändigt lim
Krymptemperatur: 180º C
Temperaturområde: -55° C till +125° C
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19 A, 27 A, 48 A
- Flange shape:
- Fork shape
- According to DIN:
- No
- Insulation:
- Polyamide (PA)
- Colour insulation:
- Red, Blue, Yellow
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Operating temperature:
- -55-125 °C
- Material:
- Copper
- Voltage max:
- 600V
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_DS-Series

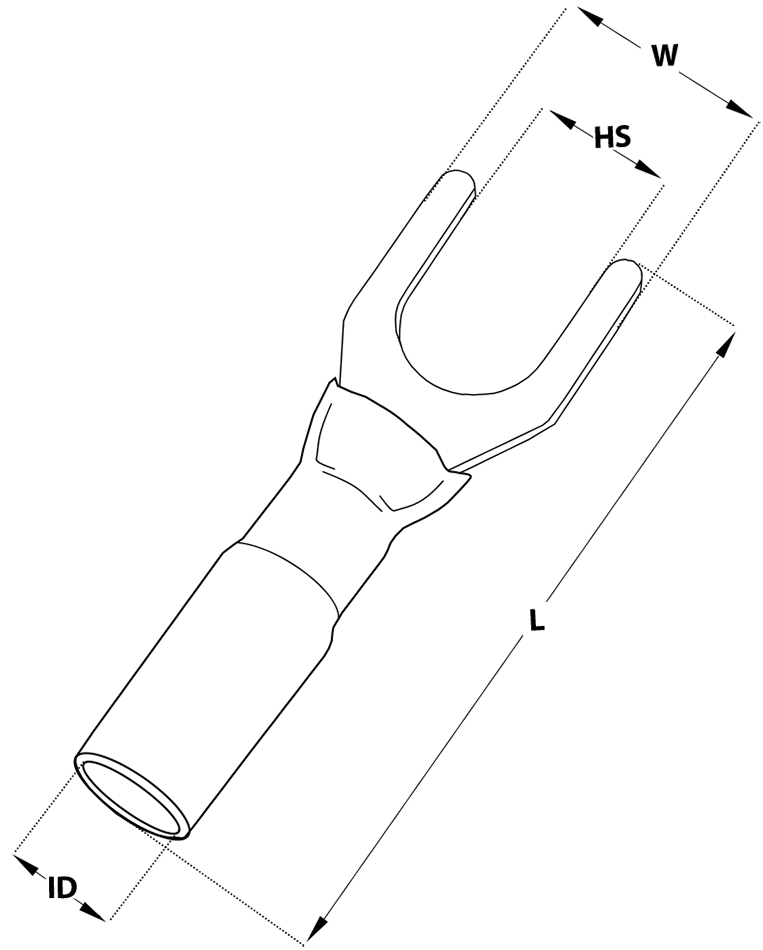

Dimensions
- Total: 5
| Product Description | HS | ID | L | W | MOQ | Unit | Bolt dimension (metric) | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SHRINK INSULATED SPADE TERMINAL RED, M4 | 4.5 mm | 3.8 mm | 31.8 mm | 7.8 mm | 100 . | pcs | 4 . | 0.3-0.75 mm² |
Yes
|
|
|
| SHRINK INSULATED SPADE TERMINAL BLUE, M4 | 4.5 mm | 4.5 mm | 34.8 mm | 7.8 mm | 100 . | pcs | 4 . | 1.04-2.63 mm² |
Yes
|
|
|
| SHRINK INSULATED SPADE TERMINAL BLUE, M5 | 5.5 mm | 4.5 mm | 34.8 mm | 9.8 mm | 100 . | pcs | 5 . | 1.04-2.63 mm² |
Yes
|
|
|
| SHRINK INSULATED SPADE TERMINAL YELLOW, M4 | 4.5 mm | 6.3 mm | 37.8 mm | 7.8 mm | 100 . | pcs | 4 . | 4-6.64 mm² |
Yes
|
|
|
| SHRINK INSULATED SPADE TERMINAL YELLOW, M5 | 5.5 mm | 6.3 mm | 39.8 mm | 9.8 mm | 100 . | pcs | 5 . | 4-6.64 mm² |
Yes
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
| Product Description | Approved according to CE | With approval according to UL | Availability | ||
|---|---|---|---|---|---|
| SHRINK INSULATED SPADE TERMINAL RED, M4 |
|
|
Yes
|
|
|
| SHRINK INSULATED SPADE TERMINAL BLUE, M4 |
|
|
Yes
|
|
|
| SHRINK INSULATED SPADE TERMINAL BLUE, M5 |
|
|
Yes
|
|
|
| SHRINK INSULATED SPADE TERMINAL YELLOW, M4 |
|
|
Yes
|
|
|
| SHRINK INSULATED SPADE TERMINAL YELLOW, M5 |
|
|
Yes
|
|
|
- Total: 5
Technical Properties
- Total: 5
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Reel/roll packaging | Max. current (Imax) | Flange shape | According to DIN | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | Surface protection | Operating temperature | Material | Voltage max | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SHRINK INSULATED SPADE TERMINAL RED, M4 | Yes | Yes | No | 19 A | Fork shape | No | Polyamide (PA) | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | -55-125 °C | Copper | 600V |
Yes
|
|
|
| SHRINK INSULATED SPADE TERMINAL BLUE, M4 | Yes | Yes | No | 27 A | Fork shape | No | Polyamide (PA) | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | -55-125 °C | Copper | 600V |
Yes
|
|
|
| SHRINK INSULATED SPADE TERMINAL BLUE, M5 | Yes | Yes | No | 27 A | Fork shape | No | Polyamide (PA) | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | -55-125 °C | Copper | 600V |
Yes
|
|
|
| SHRINK INSULATED SPADE TERMINAL YELLOW, M4 | Yes | Yes | No | 48 A | Fork shape | No | Polyamide (PA) | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | -55-125 °C | Copper | 600V |
Yes
|
|
|
| SHRINK INSULATED SPADE TERMINAL YELLOW, M5 | Yes | Yes | No | 48 A | Fork shape | No | Polyamide (PA) | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | -55-125 °C | Copper | 600V |
Yes
|
|
|
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SHRINK INSULATED SPADE TERMINAL RED, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Heat-shrink insulated Spade termina | 486501-000 ,TE | DS1543G |
Yes
|
|
|
| SHRINK INSULATED SPADE TERMINAL BLUE, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Heat-shrink insulated Spade termina | 097305-000 ,TE | DS2543G |
Yes
|
|
|
| SHRINK INSULATED SPADE TERMINAL BLUE, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Heat-shrink insulated Spade termina | 533141-000 ,TE | DS2553G |
Yes
|
|
|
| SHRINK INSULATED SPADE TERMINAL YELLOW, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Heat-shrink insulated Spade termina | 709977-000 ,TE | DS4643G |
Yes
|
|
|
| SHRINK INSULATED SPADE TERMINAL YELLOW, M5 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Heat-shrink insulated Spade termina | 702145-000 ,TE | DS4653G |
Yes
|
|
|
- Total: 5
