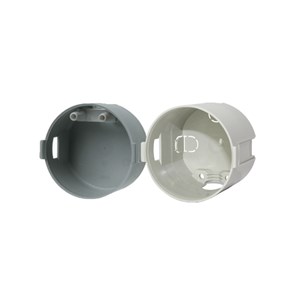

Wallboxes and Accessories - INTEGRO Berker
185102
Wall box Ø45 mm 22 mm deep
Gray box for switches and sockets in Berkers systems Integro.
Depth: 22 mm
Available in versions with and without strain relief.
Non-flammable according to VDE 0606-1
- Sealable:
- No
- Air tight:
- No
- Luminaire hook mounting:
- No
- Colour:
- Grey
- Type of product:
- Dosa
- Variant:
- N/A

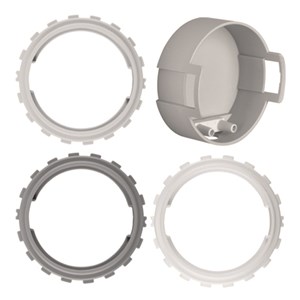

Wallboxes and Accessories - INTEGRO Berker
99002
Fastening ring and Wall box Ø58 mm 35mm deep
Gray box for switches and sockets in Berkers systems Integro.
Available in versions with and without strain relief.
Suitable for fastening ring: 17140818xx
Non-flammable according to VDE 0606-1
- Sealable:
- No
- Air tight:
- No
- Luminaire hook mounting:
- No
- Colour:
- Grey, White
- Type of product:
- Dosa, Tillbehör
- Variant:
- N/A

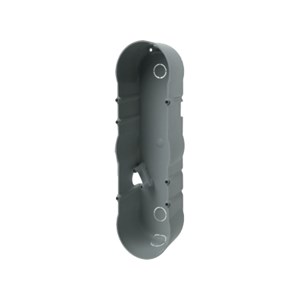

Wallboxes and Accessories - INTEGRO Berker
185105
Wall box 3-way
Gray box for switches and sockets in Berkers systems Integro.
Available in versions with 1, 2 and without strain relief.
Different designs for vertical and horizontal mounting.
Non-flammable according to VDE 0606-1
- Sealable:
- No
- Air tight:
- No
- Luminaire hook mounting:
- No
- Colour:
- Grey
- Type of product:
- Dosa
- Variant:
- N/A
Eluttag 12-24V, Cigg - INTEGRO Berker
Eluttag_12-24V_cigg_Berker_vp
Eluttag av typ Cigg-plugg 12-24 VDC med tryck 20 A för motorfordon.
Max strömuttag: 20A med 2.5 mm² och max 15A med 1.5 mm² kabel.
Flatsiftanslutning: 6.3 x 0.8 mm
Mått: 55.5 mm x 55.5 mm
Installationsdjup exklusive kabelanslutning: 46 mm
- Colour:
- Black, Grey, White, Anthracite, Metallic
- Type of product:
- Uttag
- Variant:
- TV/DATA
Power socket outlet 12V complete with frame INTEGRO Flow
Berker uttag cigg med ram_vp
Power socket outlet
6-24 VDC
Ratet current: Max 20A with 2,5mm2 and max 15A with 1,5mm2 cable.
Flat connector size 6.3 x 0.8mm
Installation depth without cable lug: 46mmCompliant with: SAE J563 (Feb. 2009), VW standard TL82285 (Apr. 2007)
This item is delivered in retail package with bar code.
Power socket outlet 12V + TV complete with frame INTEGRO Flow
Berker uttag cigg och TV med ram_vp
Power socket outlet 12V + TV socket outlet12VDC, Max 10A
Flat connector
With IEC jack (male)
Connection in F system on the rear.
Installation depth without cable lug: 28mm
This item is delivered in retail package with bar code.
Power socket outlet 12V + SAT complete with frame INTEGRO Flow
Berker uttag cigg och sat med ram_vp
Power socket outlet 12V + SAT socket outlet12VDC, Max 10A
Flat connector
Double F-sockets
Installation depht without cable lug: 28mm
This item is delivered in retail package with bar code.
HDMI socket outlet complete with frame INTEGRO Flow
Berker HDMI uttag med ram_vp
HDMI-socket outlet
Resolution: max 1920 x 1080 px
Transmission rate: max 8,16 GBit/s
Video bandwidth: max 165MHz
Frequency range (vertical): 50-85Hz
With HDMI & trade; double jack type A, supports HDMI technology (V 1.3 with Deep Color)
Contacts: 19 pole, gold plated
This item is delivered in retail package with bar code.
USB-A + USB-C uttag med ram i blisterförpackning
Uttag_USB-A_och_USB-C_vp
Matning: 8 – 34 VDC
Utspänning 5V DC (+- 5%).
Max ström 3.6A
Förbrukning i Stand-By läge: <100mW
Mått: 55.5 mm x 55.5 mm
Installationsdjup: 32 mm
Förmonterad med röd/svart kabel 15 cm.
USB charging socket outlet 2x2,5A complete with frame INTEGRO Flow
Berker USB-uttag med ram_vp
USB charging socket outlet
Input voltage: 8-34V
Output voltage: 2x2,5A, 5V
Installation depth: 32mm.
Power consumption, stand by: <100mW
This item is delivered in retail package with bar code.
- Connection type:
- Other
- Mounting method:
- Built-in installation
- Anti-bacterial treatment:
- No
- Model:
- Bus
- Colour:
- Brown, Anthracite, Chrome, Polar white
USB charging socket 12V, 1A - INTEGRO Berker
USB-uttag 1x1A INTEGRO Berker_vp
USB charging socket outlet, type A
Input voltage: 12V
Output voltage: 3x1A, 5V
Power consumption, stand by: <100mW
Size: 55.5 mm x 55.5 mm
Installation depth: 32 mm
- Connection type:
- Other
- Mounting method:
- Built-in installation
- Anti-bacterial treatment:
- No
- Model:
- Bus
- Colour:
- Anthracite
Multiple rocker push-button complete with frame INTEGRO Flow
Berker återfjädrande strömbrytare 1-pol med ram_vp
Återfjädrande strömställare och tryckknapp 1-pol
10 A, 250 VAC
Skruvanslutning av anslutningsledning.
Denna artikel är butiksförpackad med streckkod.
- Nominal voltage:
- 250 V
- Connection type:
- Screwed terminal
- Rated current:
- 10 A
- Mounting method:
- Built-in installation
- Anti-bacterial treatment:
- No
- Surface finishing:
- Glossy, Matt
- Compatible with Apple HomeKit:
- No
- Compatible with Google Assistant:
- No
- Compatible with Amazon Alexa:
- No
- IFTTT support available:
- No
- Assembly arrangement:
- Basic element with complete housing, Basic element with central cover plate
- Wiring system:
- Off switch 1-pole
- Method of operation:
- Rocker/button
- With mounting plate:
- No
- Illumination:
- No
- Feedback-signal contact:
- No
- Heating switch:
- No
- Washing machine switch:
- No
- Type of fastening:
- Screw mounting
- RAL-number (similar):
- 7021-9023 .
- Min. depth of built-in installation box:
- 16 mm
- Colour:
- Brown, White, Anthracite, Chrome
- Material:
- Plastic
- Variant:
- 250V
- Built-in depth:
- 15.5 mm
Aerial connector box TV complete with frame INTEGRO Flow
Berker antennuttag TV med ram_vp
Aerial connector box TV
With IEC jack (male)
For soldering connection
DIN 45325
This item is delivered in retail package with bar code.
Aerial connector box TV/SAT complete with frame INTEGRO Flow
Berker antennuttag TV och sat med ram_vp
Aerial connector box TV/SAT
With IEC and F socket
Connection in F system on the rear.
This item is delivered in retail package with bar code.
Aerial connector box TV F system complete with frame INTEGRO Flow
Berker antennuttag TV F kontakt med ram_vp
Aerial connection box for TV, F connection
With IEC jack (male)
Connection in F system on the rear.
Standard: DIN 45325
This item is delivered in retail package with bar code.
Surface-mounted housing Classic INTEGRO Berker
Förhöjningsdosa Classic INTEGRO Berker_vp
Built-on installation housing
High gloss plastic in performance without strain relief.
Height: 59.5 mm
Width: 59.5 mm
Depth: 41 mm
- Surface finishing:
- Glossy
- Assembly arrangement:
- Surface mounted box
- Suitable for modular domestic switching devices:
- No
- With cover frame:
- No
- With screw gland entry:
- No
- Surface protection:
- Lacquered
Dubbel ON/OFF återfjädrande – INTEGRO BERKER
Berker_återfjädrande_Dubbel ON/OFF_vp
Återfjädrande dubbel ON/OFF strömbrytare 2-pol.
5A, 12V
Mått: 55.5 mm x 55.5 mm
Skruvanslutning av anslutningsledning
- Nominal voltage:
- 12 V
- Connection type:
- Screwed terminal
- Rated current:
- 5 A
- Mounting method:
- Built-in installation
- Anti-bacterial treatment:
- No
- Surface finishing:
- Glossy
- Compatible with Apple HomeKit:
- No
- Compatible with Google Assistant:
- No
- Compatible with Amazon Alexa:
- No
- IFTTT support available:
- No
- Assembly arrangement:
- Basic element with central cover plate
- Wiring system:
- 2-pole switch
- Method of operation:
- Rocker/button
- Illumination:
- No
- Heating switch:
- No
- Washing machine switch:
- No
- Type of fastening:
- Screw mounting
- RAL-number (similar):
- 9023 .
- Min. depth of built-in installation box:
- 16 mm
- Colour:
- Chrome
- Material:
- Plastic
- Built-in depth:
- 15.5 mm
Reverse polarity push.button switch 5-contacts - INTEGRO Berker
99014
Reverse polarity push button, 5 contacts
-e.g. for control of caravan steps.
Imprint: step and arrow symbols
Momentary current: 15A,at 12V
Momentary current: 7,5A,at 24V
5 contacts at the backside
Size: 55.5mm x 55.5mm
Flat connector 4.8 x 0.8mm
- Nominal voltage:
- 12-24 V
- Connection type:
- Screwed terminal
- Rated current:
- 7.5-15 A
- Mounting method:
- Built-in installation
- Anti-bacterial treatment:
- No
- Surface finishing:
- Matt
- Compatible with Apple HomeKit:
- No
- Compatible with Google Assistant:
- No
- Compatible with Amazon Alexa:
- No
- IFTTT support available:
- No
- Assembly arrangement:
- Basic element with central cover plate
- Wiring system:
- Other
- Method of operation:
- Rocker/button
- Illumination:
- No
- Heating switch:
- No
- Washing machine switch:
- No
- Type of fastening:
- Screw mounting
- RAL-number (similar):
- 9006 .
- Min. depth of built-in installation box:
- 16 mm
- Colour:
- Chrome
- Material:
- Plastic
- Type of product:
- Strömbrytare
- Variant:
- 12V
- Built-in depth:
- 15.5 mm
Reverse polarity push.button switch 12-24V for awnings - INTEGRO Berker
99015
Reverse polarity push button, 4 contacts, 12-24V
-e.g. for control of caravan awnings.
Imprint: awning and arrow symbols
Momentary current:15A,at 12V
Momentary current:7,5A,at 24V
4 contacts at the backside
Size: 55.5mm x 55.5mm
Flat connector 4.8 x 0.8mm
- Nominal voltage:
- 12-24 V
- Connection type:
- Screwed terminal
- Rated current:
- 7.5-15 A
- Mounting method:
- Built-in installation
- Anti-bacterial treatment:
- No
- Surface finishing:
- Glossy, Matt
- Compatible with Apple HomeKit:
- No
- Compatible with Google Assistant:
- No
- Compatible with Amazon Alexa:
- No
- IFTTT support available:
- No
- Assembly arrangement:
- Basic element with central cover plate
- Wiring system:
- Other
- Method of operation:
- Rocker/button
- Illumination:
- No
- Heating switch:
- No
- Washing machine switch:
- No
- Type of fastening:
- Screw mounting
- RAL-number (similar):
- 7021-9023 .
- Min. depth of built-in installation box:
- 16 mm
- Colour:
- Anthracite, Chrome
- Material:
- Plastic
- Type of product:
- Strömbrytare
- Variant:
- 12V
- Built-in depth:
- 15.5 mm
Intermediate Switch - INTEGRO FLOW/PURE Berker
99011
Strömställare kors
16A, 250VAC
Size 55.5 mm x 55.5 mm
Screw terminals
- Nominal voltage:
- 250 V
- Connection type:
- Screwed terminal
- Rated current:
- 10 A
- Mounting method:
- Built-in installation
- Anti-bacterial treatment:
- No
- Surface finishing:
- Matt
- Compatible with Apple HomeKit:
- No
- Compatible with Google Assistant:
- No
- Compatible with Amazon Alexa:
- No
- IFTTT support available:
- No
- Assembly arrangement:
- Basic element with central cover plate
- Wiring system:
- Intermediate switch
- Method of operation:
- Rocker/button
- Illumination:
- No
- Heating switch:
- No
- Washing machine switch:
- No
- Type of fastening:
- Screw mounting
- RAL-number (similar):
- 8017 .
- Min. depth of built-in installation box:
- 16 mm
- Colour:
- Brown
- Material:
- Plastic
- Type of product:
- Strömbrytare
- Variant:
- 250V
- Built-in depth:
- 15.5 mm
- Anti-bacterial treatment:
- No
- Surface finishing:
- Glossy, Matt
- Mounting direction:
- Horizontal and vertical
- Label space/information surface:
- No
- With mounting grid:
- No
- Flush-mounted installation:
- Yes
- Suitable for floor box:
- No
- Suitable for built-in installation:
- Yes
- With hinged lid:
- No
- Transparent:
- No
- Type of fastening:
- Engage (snap)
- RAL-number (similar):
- 2008-9023 .
- Colour:
- Black, Green, Grey, Orange, Brown, Red, White, Anthracite, Stainless steel, Chrome
- Surface protection:
- Untreated, Lacquered
- Material:
- Plastic
- Type of product:
- Ram
- Variant:
- N/A
Rocker push-button - INTEGRO Berker
99009
Rocker Push-button, NO contact 1-pole
10 A, 250 VAC
Size: 55.5 mm x 55.5 mm
Screw terminals
- With light source:
- No
- Nominal voltage:
- 250 V
- Connection type:
- Screwed terminal
- Rated current:
- 10 A
- Mounting method:
- Built-in installation
- Anti-bacterial treatment:
- No
- Surface finishing:
- Glossy, Matt
- Compatible with Apple HomeKit:
- No
- Compatible with Google Assistant:
- No
- Compatible with Amazon Alexa:
- No
- IFTTT support available:
- No
- Assembly arrangement:
- Basic element with central cover plate
- Wiring system:
- Off switch 1-pole
- Method of operation:
- Rocker/button, Rocker
- Illumination:
- No
- Heating switch:
- No
- Washing machine switch:
- No
- Contactless type:
- No
- With lighting:
- No
- With signal lamp:
- No
- Label space/information surface:
- No
- Imprint:
- None
- Model:
- Single push button
- Transparent:
- No
- Type of fastening:
- Screw mounting
- RAL-number (similar):
- 7021-9023 .
- Min. depth of built-in installation box:
- 15-16 mm
- Colour:
- Black, Brown, White, Anthracite, Chrome
- Surface protection:
- Untreated, Lacquered
- Material:
- Plastic
- Type of product:
- Strömbrytare
- Variant:
- 250V
- Built-in depth:
- 15.5 mm
USB charging socket outlet 2x2,5A - INTEGRO Berker
99017
USB charging socket outlet
Input voltage: 8-34V
Output voltage: 2x2,5A, 5V
Power consumption, stand by: <100mW
Size: 55.5 mm x 55.5 mm
Installation depth: 32 mm
- Connection type:
- Other
- Mounting method:
- Built-in installation
- Anti-bacterial treatment:
- No
- Model:
- Bus
- Colour:
- Black, Grey, Brown, Anthracite, Polar white
- Type of product:
- Uttag
- Variant:
- USB
