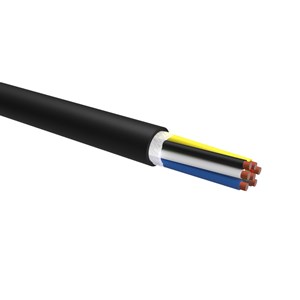

Low-voltage cable in PVC / PVC / PUR for transportation of dangerous material in accordance with DIN 72 570 Teil 10, GGVS / ADR Anhang B2. ADR cable is designed for use in commercial vehicle manufacturing. It is used for electrical installations on various types of trailers and truck trailers for transport of dangerous material as GGVS / ADR. The cables are UV and cold resistant, and thanks to the sheath material of PUR, in large extent it is even oil-, weather- and chemical resistant. The outer sheath of PUR makes the cable rubbing resistant, micro resistant and hydrolysis resistant. The cables are developed according to international standard, ISO 4141. Packaging: Coil/Drum Structure Conductor: Stranded blank copper wire. Conductor insulation: PVC-based conductor insulation. The conductors twisted in layers. Inner Sheath: Special mixture on PVC base. Outer Sheath: Special polyurethan (PUR), black. Color code: According to ISO 4141-3, see pdf under documents. Technical data: Rating peak voltage (not for strong Power): 60V Test voltage: 5 kV, minimum 5 minutes Insulation resistance: 10 Mohm x km Minimum bending radius: 12 x cable diameter Temperature range: -40ºC to +85ºC Conductor Structure: Stranded EN 60288.5 Approvals: ISO 4141 and DIN / ISO 6722ADR / GGVS
