- Total: 7

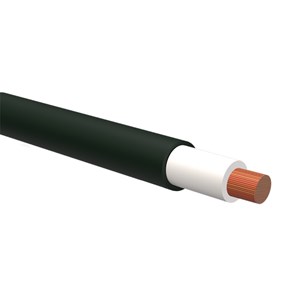

Svetskabel - Dubbelisolerad, bobin
72901
Extra flexible welding cable for use where the mechanical stresses are high. The double insulation prevents corrosion, increases flexibility and improves insulation resistance.
Packaging (YD x Hub x Width):
Drum B5: 200mm x 56mm x 88mm
Structure
Conductor: Extra multi- and fine-threaded, annealed copper
Conductor insulation inner jacket: Special PVC
Outer sheath: Special PVC
Outer sheth color: See table below
Technical data:
Operating voltage: 600V
Test voltage: 2000V
Temperature range: -40ºC to + 80ºC
Minimum bending radius: 15 x cable diameter
Approvals:
IEC 60228-6 IEC 60332-1
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Orange, Red, Black
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -45-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 80 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- No
- Conductor category:
- Class 6 = very flexible
- Single insulated/Double insulated:
- Double insulated
- Colour:
- Black, Orange, Red
- Material insulation:
- Polyvinyl chloride (PVC)
- Operating temperature:
- -40-80 °C
- Core colour:
- Orange, Red, Black
- Conductor surface:
- Bare
- Halogen free:
- No
- Packaging:
- Reel B5
- Min. permitted bending radius, stationary application/permanent installation:
- 43.2-90 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Yellow
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -45-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 80 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- No
- Conductor category:
- Class 6 = very flexible
- Single insulated/Double insulated:
- Double insulated
- Colour:
- Yellow
- Material insulation:
- Polyvinyl chloride (PVC)
- Operating temperature:
- -40-80 °C
- Core colour:
- Yellow
- Conductor surface:
- Bare
- Halogen free:
- No
- Packaging:
- Reel B5
- Min. permitted bending radius, stationary application/permanent installation:
- 43.2-90 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No

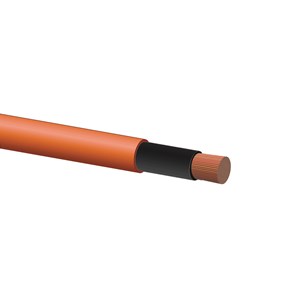

Svetskabel - Dubbelisolerad, ring
Svetskabel dubbelisolerad_ring_vp
Extra flexible welding cable for use where the mechanical stresses are high. The double insulation prevents corrosion, increases flexibility and improves insulation resistance.
Packaging (YD x Hub x Width):
Drum B5: 200mm x 56mm x 88mm
Structure Conductor: Extra multi- and fine-threaded, annealed copper
Conductor insulation inner jacket: Special PVC
Outer sheath: Special PVC
Outer sheth color: See table below
Technical data:
Operating voltage: 600V
Test voltage: 2000V
Temperature range: -40ºC to + 80ºC
Minimum bending radius: 15 x cable diameter
Approvals:
IEC 60228-6 IEC 60332-1
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Yellow, Orange, Red, Black
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -45-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 80 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- No
- Conductor category:
- Class 6 = very flexible
- Single insulated/Double insulated:
- Double insulated
- Colour:
- Black, Orange, Yellow, Red
- Material insulation:
- Polyvinyl chloride (PVC)
- Operating temperature:
- -40-80 °C
- Core colour:
- Yellow, Orange, Red, Black
- Conductor surface:
- Bare
- Halogen free:
- No
- Packaging:
- Ring
- Min. permitted bending radius, stationary application/permanent installation:
- 43.2-90 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
H01N2-D FT - Drum
H01N2_D_FT_Trumma_500m_vp
Oil and weather resistant connection and welding cable. For use where the mechanical stresses are high, in both dry and wet conditions, indoors and outdoors.
Packaging: Drum
Structure:
Conductors: Extra-wide and fine wire tinned copper
Conductor Insulation: Rubber (Neoprene)Sheath
Colour: Black
Packaging: Spool, coil or drum
Technical data
Rating voltage: 100V
Test voltage: 1000V
Temperature range: Fixed min/max: -40ºC to +80ºC (-40ºF to +176ºF)Moving min/max: -25ºC to +80ºC (-13ºF to +176ºF)
Minimum bend radius: 5 x cable diameter
Approvals: CE
- Number of cores:
- 1 .
- Material core insulation:
- Rubber
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Red, Black
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -20-80 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 80 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Halogen free:
- No
- Conductor category:
- Class 6 = very flexible
- Single insulated/Double insulated:
- Single insulated
- Core colour:
- Red, Black
- Conductor surface:
- Tinned
- Min. permitted bending radius, stationary application/permanent installation:
- 66-115.2 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
H01N2-D FT - Spool
H01N2_D_FT_Trumma 25m_vp
Oil and weather resistant connection and welding cable. For use where the mechanical stresses are high, in both dry and wet conditions, indoors and outdoors.
Structure
Conductors: Extra-wide and fine wire tinned copper
Conductor Insulation: Rubber (Neoprene)Sheath
Colour: Black
Packaging: Spool, coil or drum
Technical dataRating voltage: 100V
Test voltage: 1000V
Temperature range: Fixed min/max: -40ºC to +80ºC (-40ºF to +176ºF) Moving min/max: -25ºC to +80ºC (-13ºF to +176ºF)
Minimum bend radius: 5 x cable diameter
Approvals: CE
- Number of cores:
- 1 .
- Material core insulation:
- Rubber
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Red, Black
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -20-80 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 80 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Halogen free:
- No
- Conductor category:
- Class 6 = very flexible
- Single insulated/Double insulated:
- Single insulated
- Core colour:
- Red, Black
- Conductor surface:
- Tinned
- Min. permitted bending radius, stationary application/permanent installation:
- 58.2-115.2 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
DOUFLEX
72801
Extra flexible welding cable for use where the mechanical stresses are high. The double insulation prevents corrosion, increases flexibility and improves insulation resistance.
Packing: Coil
Structure
Conductor: Extra multi- and fine-threaded, annealed copper
Conductor insulation inner jacket: Special PVC
Outer sheath: Special PVC
Outer sheath color: See table below
Technical data:
Operating voltage: 600V
Test voltage: 2000V
Temperature range: -40ºC to + 80ºC
Minimum bending radius: 15 x diameter of the cable
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Orange
- Flame retardant:
- No
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- No
- Conductor category:
- Class 6 = very flexible
- Single insulated/Double insulated:
- Double insulated
- Colour:
- Orange(Black)
- Material insulation:
- Polyvinyl chloride (PVC)
- Operating temperature:
- -40-80 °C
- Core colour:
- Orange
- Conductor surface:
- Bare
- Halogen free:
- No
- Packaging:
- Ring
- Min. permitted bending radius, stationary application/permanent installation:
- 58.4 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
- Availability:
-
No
- Total: 7
