- Total: 9
Slanghållare i plast
83302
AFX-serien
Slanghållare för korrugerad slang, enhålsmontage.
Slangen trycks fast men kan roteras.
Säkerhetslock håller fast slangen.
Material: Polyamid 6
Temperaturområde: -40º C till +120º C
Halogenfri, svart RAL 8022, UV-beständig,
flamavvisande IEC 613386/EN 50086
- Material quality:
- Polyamide (PA)
- Type of fastening:
- Clamp
- Colour:
- Black
- Surface protection:
- Other
- Material:
- Plastic
- Closed:
- Yes
- Tackable:
- No
- With inlay:
- No

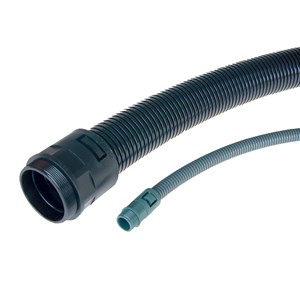

Förskruvning, RSF
143401
Conduit fittings of polyamide with secure two-sidedsnap-lock. Fittings consists only of one part and is therefore easy to install.All metric fittings are supplied including lock nut.Material: Polyamide 6Temperature range: -40 degrees Celsius to +120 degrees Celsius Colour: Black RAL 8022Protection: IP 66Other properties: Halogen free, UV-resistant (black), IEC 613386/EN 50086non-flammable acc. to IEC 613386/EN 50086
- Revolving thread:
- No
- Thread material:
- Polyamide (PA)
- Degree of protection (IP):
- IP66
- Model:
- Straight
- Type of connection:
- Snap connection
- Transparent:
- No
- Thread type:
- Metric, PG
- Construction type:
- External thread
- Colour:
- Black
- Operating temperature:
- -45-120 °C
- Material:
- Polyamide (PA)
- Halogen free:
- Yes
- Suitable in fire resistance areas:
- Yes
- Approved according to Lloyd's Register TA:
- Yes
- Approved according to NF F 16-101:
- Yes
- Approved in combination with protective conduit CSA:
- No
- Approved in combination with protective conduit UR:
- Yes
- Approved in combination with protective conduit VD TÜV/GGVS:
- No
- Approved in combination with protective conduit DIN EN 61386-23:
- Yes
- Approved in combination with protective conduit Lloyd's Register:
- Yes

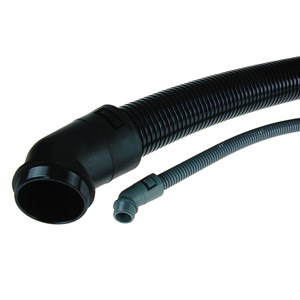

Förskruvning, RAF 45º
143402
Conduit fittings of polyamide with secure two-sidedsnap-lock. Fittings consists only of one part and is therefore easy to install.All metric fittings are supplied including lock nut.Material: Polyamide 6Temperature range: -40 degrees Celsius to +120 degrees Celsius Colour: Black RAL 8022Protection: IP 66Other properties: Halogen free, UV-resistant (black),non-flammable acc. to IEC 613386/EN 50086
- Revolving thread:
- No
- Thread material:
- Polyamide (PA)
- Degree of protection (IP):
- IP66
- Model:
- 45°-Bend
- Type of connection:
- Snap connection
- Transparent:
- No
- Thread type:
- Metric, PG
- Construction type:
- External thread
- Colour:
- Black
- Operating temperature:
- -45-120 °C
- Material:
- Polyamide (PA)
- Approved in combination with protective conduit CSA:
- No
- Approved in combination with protective conduit UR:
- Yes
- Approved in combination with protective conduit VD TÜV/GGVS:
- No
- Approved in combination with protective conduit DIN EN 61386-23:
- Yes
- Approved in combination with protective conduit Lloyd's Register:
- Yes

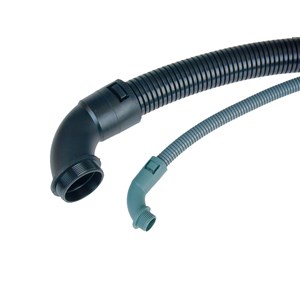

Förskruvning, RAF 90º
143403
RAF 90º
Slangförskruvning av polyamid med säker tvåsidig snäpplåsning. Förskruvningarna består endast av en del och är därför enkla att montera. Alla metriska förskruvningar levereras inklusive kontramutter.
Material: Polyamid 6
Temperaturområde: -40º C till +120º C
Färg: Svart RAL 8022
Skyddsklass: IP 66
Övriga egenskaper: Halogen fri, UV-beständig, flamavvisande enligt IEC 613386/EN 50086
- Revolving thread:
- No
- Thread material:
- Polyamide (PA)
- Degree of protection (IP):
- IP66
- Model:
- 90°-Bend
- Type of connection:
- Snap connection
- Transparent:
- No
- Thread type:
- Metric, PG
- Construction type:
- External thread
- Colour:
- Black
- Operating temperature:
- -45-120 °C
- Material:
- Polyamide (PA)
- Approved in combination with protective conduit CSA:
- No
- Approved in combination with protective conduit UR:
- Yes
- Approved in combination with protective conduit VD TÜV/GGVS:
- No
- Approved in combination with protective conduit DIN EN 61386-23:
- Yes
- Approved in combination with protective conduit Lloyd's Register:
- Yes
Y-koppling
144001
Y-koppling med snäpplåsning
Slangförskruvning av polyamid med säker tvåsidig snäpplåsning. Förskruvningarnabestår endast av en del och är därför enkla att montera.
Material: Polyamid 6
Temperaturområde: -40º C till +120º C
Halogenfri, IP66, svart RAL 8022
UV-beständig
Flamavvisande IEC 613386/ EN 50086
T-koppling
143901
T-koppling med snäppkoppling
Slangförskruvning av polyamid med inspektionslock.
Material: Polyamid 6
Temperaturområde: -40º C till +120º C
Halogenfri, IP 67, svart RAL 8022
UV-beständig
Flamavvisande IEC 613386/ EN 50086

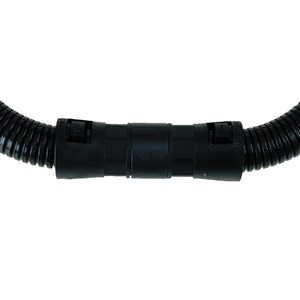

Skarvkoppling
144101
Skarvkoppling
Förskruvning för skarv av plastslang. Snäpplåsning i båda ändar medför snabb montering.
Förskruvningen består endast av en del och är därför enkel att montera. Swiveltyp.
Material: Polyamid 6
Temperaturområde: -40º C till +120º C
Halogenfri, IP 66, svart RAL 8022
UV-beständig
Flamavvisande IEC 613386/ EN 50086
Paso, PA6, Industriella applikationer
79301
Halogen free, self-extinguishing, heat-stable and UV resistant (black). A standard conduit with good flexibility which gives a very good protection for electrical cables against moisture, dirt and mechanical damage. 0-indexed UL 94V 75%.The material is also resistant to oils, grease,solvents and fuels of various kinds. For industrymachinery and equipment and construction vehicles and work-shops.Material: Polyamide 6Temperature range: -40 degrees Celsius to +120 degrees Celsius Colour: Black RAL 8022Other properties: UV-resistant, non-flammable Peak load resistance: 400 N / 50 mm, impact test 6J
- Compressive strength:
- 400 N
- Fire resistance according to UL94:
- V2
- Oil resistant:
- Yes
- Bending strength:
- Flexible
- Lengthwise slotted:
- No
- Closable (two-part):
- No
- With draw wire:
- No
- High conducting inner coating:
- No
- Degree of protection (IP):
- IP69K
- Material quality:
- Polyamide 6
- Colour:
- Black
- Operating temperature:
- -40-120 °C
- Material:
- Polyamide (PA)
- Halogen free:
- Yes
- Suitable in fire resistance areas:
- Yes
- Approved according to DIN EN 61386-23:
- Yes
- Approves according to Vd TÜV/GGVS:
- No
- Approved according to LUL/British Standard:
- Yes
- Approved according to Lloyd's Register TA:
- Yes, No
- Approved according to UTAC:
- No
- Approved according to DIN 5510:
- Yes
- Approved according to NF F 16-101:
- Yes
Robo, PA12, Extra flexibel
79601
Halogenfri, självslocknande och UV-beständig. Robotslang med extra god flexibilitet som även ger ett gott skydd för elektriska ledningar mot fukt, smuts och mekanisk åverkan.
Materialet är dessutom motståndskraftigt mot oljor, fett, lösningsmedel och drivmedel av olika slag. Lämplig för användning inom robottillverkning eller där en slang med utmärkt flexibilitet behövs.
EN45545-2 HL2 - R22 & R23
Tryckhållfasthet: 320 N / 50 mm, slag 2J
- Compressive strength:
- 320 N
- Fire resistance according to UL94:
- V2
- Oil resistant:
- Yes
- Bending strength:
- Flexible
- Lengthwise slotted:
- No
- Closable (two-part):
- No
- With draw wire:
- No
- High conducting inner coating:
- No
- Degree of protection (IP):
- IP69K
- Material quality:
- Polyamide 12
- Colour:
- Black
- Operating temperature:
- -50-110 °C
- Material:
- Polyamide (PA)
- Halogen free:
- Yes
- Suitable in fire resistance areas:
- Yes
- Approved according to DIN EN 61386-23:
- Yes
- Approved according to LUL/British Standard:
- Yes
- Approved according to Lloyd's Register TA:
- No
- Approved according to UTAC:
- No
- Approved according to DIN 5510:
- Yes
- Approved according to NF F 16-101:
- Yes
- Total: 9
