MKKB
73601
Cable used mainly in motor vehicles as ignition cable. It is built of a multi-wire standard copper conductor and insulation and sheath of standard PVC that can withstand temperature range -25 -C to + 70ºC.
Packaging (YD x Hub x Width)
Bobin B3: 160mm x 56mm x 50mm
Max voltage: 15kV
Outer diameter: 5.2mm
Structure
Conductor: Stranded copper
Outer sheath: PVC, double insulated
Coat color: Black or Red
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Red, Black
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 60 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Double insulated
- Colour:
- Black, Red
- Operating temperature:
- -25-70 °C
- Core colour:
- Red, Black
- Conductor surface:
- Bare
- Packaging:

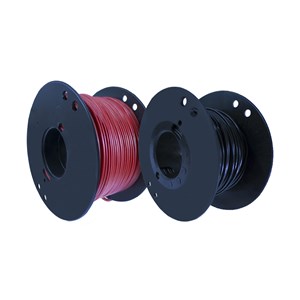

- Reel B3
- Min. permitted bending radius, stationary application/permanent installation:
- 21 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
