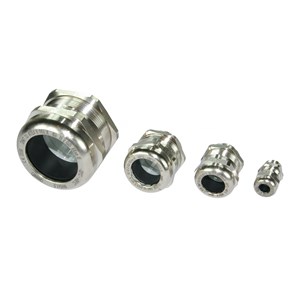

HSK-M-EMV EX, tillbakaviken skärm
155601
EMI compatible standard strain relief fittings for hazardous locations.Material: Nickel plated brassClamping insert: PA (Nylon)Seal: Buna-NO-ring: Buna-NProtection: IP 68 - 10 bar / IP 69K(NEMA 6 - 150 PSIG) within the specified clamping rangeOperating temperature: -20 degrees Celsius to +95 degrees Celsius PG are not VDE approved.
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Brass
- RAL-number:
- 0 N/A
- Thread type:
- Metric
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- Yes
- For armoured cable:
- No
- EMC-version:
- Yes
- Screened:
- Yes
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- 1, 2
- For Ex-Zone dust:
- 20, 21, 22
- Colour:
- Brass
- Surface protection:
- Nickel-plated
- Operating temperature:
- -20-95 °C
- Material:
- Metal
- Halogen free:
- Yes
- Wrench width:
- 14-50 mm
