- Total: 8
Batteridrivet multiverktyg
NMBT MAT_VP
Battery tool for multiple applications with interchangeable heads. The battery tool is sold as one article no. The accessories are sold as separate items so there is no need to invest in applications not needed for the end user.
Tool can be used for following applications- Hole punch head for 19.1mm rod. MAT PH- DIN-Rail cutter. MAT DRC- Cutter for threaded bolt. MAT TR- Head for crimp dies. MAT NH- Cable cutter for Aluminum, Copper & ACSR-cable. MAT CC
MAT ADAPTER is needed to fit MAT TR and MAT CC.
The Tool comes in a plastic case together with a Li-Ion battery and a charger from Bosch.
Pressure: 700barForce: 6.7 tonLength: 410mmWeight: 3.9kg
- Grip design:
- Other
- With impact protection:
- No
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 0 .
- With automatic return:
- No
- Cycle time:
- 5 s
- Compression force:
- 67 kN
- Suitable for:
- Various applications
- Suitable for steel wire braiding:
- Yes, No
- Replaceable cutting head:
- Yes
- Cutting jaws exchangeable:
- Yes
- With strip function:
- No
- Insulated:
- No
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Accumulator-hydraulic
- For component:
- Non-insulated Cu tube and sheet terminals
- Isolation protection 1000 V:
- No
- With spring:
- N/A
- Compression shape:
- Universal (exchangeable inserts)
- VDE tested:
- No
- Application:
- Pipe cable lug and connectors
- Compression shape:
- Hexagon, Round compression
Batteridrivet pressverktyg för presshuvud och pressbackar
CS 150_VP
CS 150 är ett batteridrivet pressverktyg med ett 90° vridbart huvud. Verktyget levereras med batteri och batteriladdare i en stryktålig plastväska.
Grundverktyget skall kompleteras med någon av nedan tillbehör. CSE 30 presshuvud som sedan kan bestyckas med en CS30 pressback. CS30 backar finns till ex. i följande verktygsserier: NRB, NSA, NKB & NWB. CS 200 Adapter som sedan kan hålla en CSV-back eller 1142-back.
Batteri: Vikt: 1.3 kg
Presstid: ca 2 sekunder
Presskraft: 1.5 ton (13 kN)
Kapacitet: ca 150 pressningar per laddning
Laddtid: 40 min
Arbetstemperatur: -20° C till +40° C
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 0 .
- With automatic return:
- No
- Cycle time:
- 3 s
- Suitable for:
- Various applications
- Construction/operation:
- Accumulator-hydraulic
- For component:
- Shrink terminals, End sleeves, Turned contacts, Deutsch, Insulated terminals, Non-insulated terminals, roller compaction, Coaxial, Non-insulated Cu tube and sheet terminals, Modularplugg, Wirelås, D-Sub, Plastdon
- Compression shape:
- Oval pressing, Universal (exchangeable inserts)
UP RAM
UP RAM_VP
UP RAM

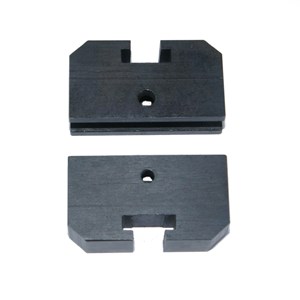

Backhållare för DHD- och DRG-backar.
Passar till UP 42 och UP 55. För att passa till UP 55 är också UPA 55 nödvändig.
UPB 55
UPB 55_VP
UPB 55

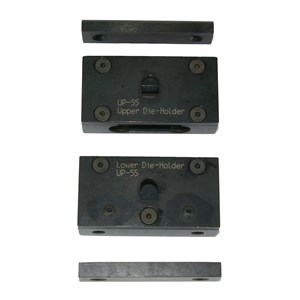

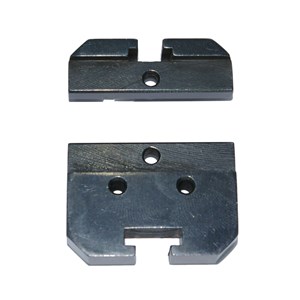

Hållare för UP 55 DW-serien pressbackar.
För HEX och W-crimp. Levereras inkl. fingerskydd.
Passar till UP 55.
- Total: 8
