- Total: 17

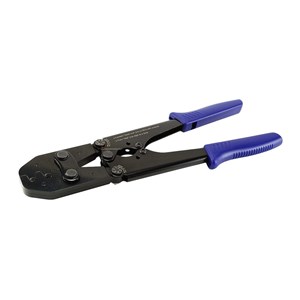

Crimp tools for End-sleeves
84702
KH 55WF / KH 95WF / KH 150WF
3 different crimping tools for end-sleeves.
Type of crimping: Trapezoid crimp
Capacity:
KH 55WF: 10-50 mm²
KH 95WF: 50-95 mm²
KH 150WF: 120-150 mm²
Length: 330 mm / 330 mm / 385 mm
3 different crimping tools for end-sleeves.
Type of crimping: Trapezoid crimp
Capacity:
KH 55WF: 10-50 mm²
KH 95WF: 50-95 mm²
KH 150WF: 120-150 mm²
Length: 330 mm / 330 mm / 385 mm
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable end sleeves
- Construction/operation:
- Mechanical
- For component:
- End sleeves
- Compression shape:
- Trapezoid compression

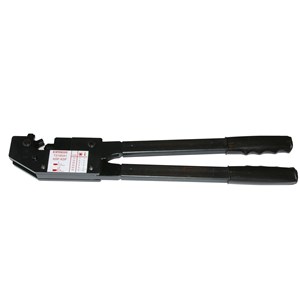

Copper lugs & metal sheet terminals, HDD 06120, K 1095
Rör plåtkabelskor HDD 06120 K 1095
Simpler hexagon crimping tool.
HDD 06120: 6-120 mm² copper lugs type KRT and metal sheet terminals (DIN)
K 1095: 6-95 mm² copper lugs type KRF
Length: 660 mm
HDD 06120: 6-120 mm² copper lugs type KRT and metal sheet terminals (DIN)
K 1095: 6-95 mm² copper lugs type KRF
Length: 660 mm
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Hexagon

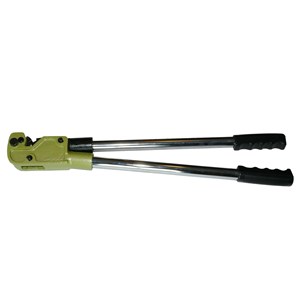

NP 695
NP695
Indent crimp tool for cable lugs, splices and uninsulated DIN terminals. Stepless settings of crimping dies depending on cable series and area of cable lug.
Standard scale for:
KS / KR 6.0 mm²
KSF / KRF 10-70 mm²
KST / KRT 10-95 mm²
KSD / KRD 16-95 mm²
DIN 46234 6.0-70 mm²
KRDIN/KSDIN 10-95 mm²
Crimps made with this tool fulfills IEC 61238-1.
Built-in ratchet and release button. Completed crimps with settings according to scale on tool will fulfill SS-EN 61238-1.
Length: 525 mm.
Standard scale for:
KS / KR 6.0 mm²
KSF / KRF 10-70 mm²
KST / KRT 10-95 mm²
KSD / KRD 16-95 mm²
DIN 46234 6.0-70 mm²
KRDIN/KSDIN 10-95 mm²
Crimps made with this tool fulfills IEC 61238-1.
Built-in ratchet and release button. Completed crimps with settings according to scale on tool will fulfill SS-EN 61238-1.
Length: 525 mm.
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- Compression shape:
- Arbour clamping
YCI R150
YCI R150_VP
YCI R150 is a simpler crimping tool for 10-150 mm² copper lugs type KRT and metal sheet terminals (DIN).
The area is set continuously against the scale which allows over-crimp, in applications needed.
Length: 670 mm
The area is set continuously against the scale which allows over-crimp, in applications needed.
Length: 670 mm
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Arbour clamping
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Hexagon
HDD 0650
HDD 0650_VP
HDD 0650 is a simpler hexagon crimping tool for 6-50 mm² copper lugs type KRT and metal sheet terminals (DIN).
Length: 390 mm
Length: 390 mm
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Hexagon
Crimping tools - HD BGD3
HD BGD3_VP
Crimp Tonol for Burndy.
Crimp slots: BG & D3
Press force: 4.5 ton
Length: 645 mm
Weight: 3.2 kg
Crimp dies: KW (in D3 slot)
Available dies: BG, O, C, K840, 161, 162, 163, 164, 165, 166, 171, 237, 243, 247, 249, 702
Delivered in plastic case.
Crimp slots: BG & D3
Press force: 4.5 ton
Length: 645 mm
Weight: 3.2 kg
Crimp dies: KW (in D3 slot)
Available dies: BG, O, C, K840, 161, 162, 163, 164, 165, 166, 171, 237, 243, 247, 249, 702
Delivered in plastic case.
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Round compression
HD 120
HD 120_VP
HD 120 is a simpler thorn-crimping tool for 10-120 mm² copper lugs type KRT and metal sheet terminals (DIN).
The area is set continuously against the scale which allows over-crimp, in applications needed.
Length: 650 mm
The area is set continuously against the scale which allows over-crimp, in applications needed.
Length: 650 mm
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Arbour clamping
CT 38
CT 38_VP
CT 38 is a simpler thorn-crimping tool for 10.0-35.0 mm² copper lugs type KRF/KRT/KRD and metal sheet terminals (DIN).
There are 4 die nests:
Nest 8: Metal sheet 10, KRT 10
Nest 14: Metal sheet 16, KRF 10 & 16, KRT 16, KRD 16 & 25
Nest 22: Metal sheet 25, KRF 25, KRT 25, KRD 35
Nest 38: Metal sheet 35, KRF 35, KRT 35
Length: 550 mm
There are 4 die nests:
Nest 8: Metal sheet 10, KRT 10
Nest 14: Metal sheet 16, KRF 10 & 16, KRT 16, KRD 16 & 25
Nest 22: Metal sheet 25, KRF 25, KRT 25, KRD 35
Nest 38: Metal sheet 35, KRF 35, KRT 35
Length: 550 mm
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Arbour clamping
Crimp tool - K 2
K 2_VP
Pressverktyg för rörkabelskor och plåtkabelskor, utrustad med ergonomiska 2-komponenthandtag och långa skänklar för att underlätta pressningen.
En ratchettång med inbyggd returspärr som garanterar att kontaktpressningen fullföljs.
En ratchettång med inbyggd returspärr som garanterar att kontaktpressningen fullföljs.
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Arbour clamping
Crimp tool - HD 25
Pressverktyg HD 25L_HD 25X_vp
Pressverktyg med större ram för oisolerade rör och plåtkabelskor upp till 25mm².
Ratchettång med inbyggd returspärr som garanterar att kontaktpressningen fullföljs.
Ratchettång med inbyggd returspärr som garanterar att kontaktpressningen fullföljs.
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Hexagon, Arbour clamping
TBM-8
TBM-8_VP
TBM-8 is a crimping tool for C-sleeves in the 54700-series.
The tool is supplied together with 8 dies in a robust plastic case.
For copper conductors 8.4 till 253.4 mm².
Length: 650 mm
Weight: 9.3 kg
The tool is supplied together with 8 dies in a robust plastic case.
For copper conductors 8.4 till 253.4 mm².
Length: 650 mm
Weight: 9.3 kg
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 8 .
- With automatic return:
- No
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- C-clamps
- Compression shape:
- Round compression
3165 A
3165 A_VP
3165 A is a crimping tool for 6-70 mm² copper lugs type KRF made in industrial quality.
The tool has a ratchet system to guarantee a fully closed crimp.
Length: 500 m
The tool has a ratchet system to guarantee a fully closed crimp.
Length: 500 m
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Arbour clamping
Pressverktyg mekaniskt för NH-BACK
Pressverktyg mekaniskt_NH-BACK_vp
RHX 185
RHX 185 är ett mekaniskt 6-kants pressverktyg för 10-120 mm² KRF, 10-150 mm² KRT, 10-150 mm² KRD samt 10-50 mm² Cu-förgreningar.
NH-backar används.
Längd: 470 mm
OBS! Pressbackar ingår ej.
RHX 185 är ett mekaniskt 6-kants pressverktyg för 10-120 mm² KRF, 10-150 mm² KRT, 10-150 mm² KRD samt 10-50 mm² Cu-förgreningar.
NH-backar används.
Längd: 470 mm
OBS! Pressbackar ingår ej.
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 0 .
- With automatic return:
- No
- Cycle time:
- 10 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Hexagon
EAP 240
EAP 240_VP
EAP 240 is a thorn-crimping tool for 25-240 mm² end-sleeves.
Length: 625 mm
Crimp dies are not included!
Length: 625 mm
Crimp dies are not included!
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 0 .
- With automatic return:
- No
- Cycle time:
- 2 s
- Suitable for:
- Cable end sleeves
- Construction/operation:
- Mechanical
- For component:
- End sleeves
- Compression shape:
- Arbour clamping
AA-35C
AA-35C_VP
AA-35C is a symmetrical crimping tool for 10.0-35.0 mm² insulated terminals.
Also crimps uninsulated terminals from 10.0-35.0 mm².
There is 4 die nests:
1: 10.0 mm²
2: 16.0 mm²
3: 25.0 mm²
4: 35.0 mm²
Length: 490 mm
Also crimps uninsulated terminals from 10.0-35.0 mm².
There is 4 die nests:
1: 10.0 mm²
2: 16.0 mm²
3: 25.0 mm²
4: 35.0 mm²
Length: 490 mm
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Insulated terminals
- Compression shape:
- Oval pressing
Pressverktyg Rullpressning
TN_1016_vp
Pressverktyg för rullpressning med två uttag för 10 respektive 16 mm².
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- Compression shape:
- Roll compression (shrinking)
- Total: 17
