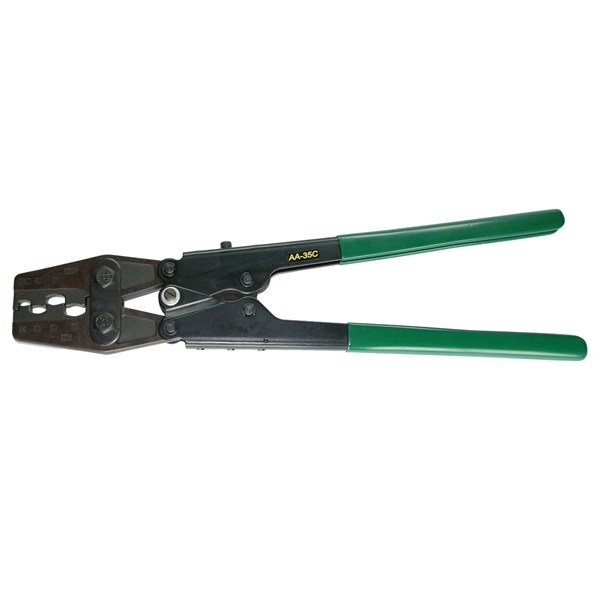

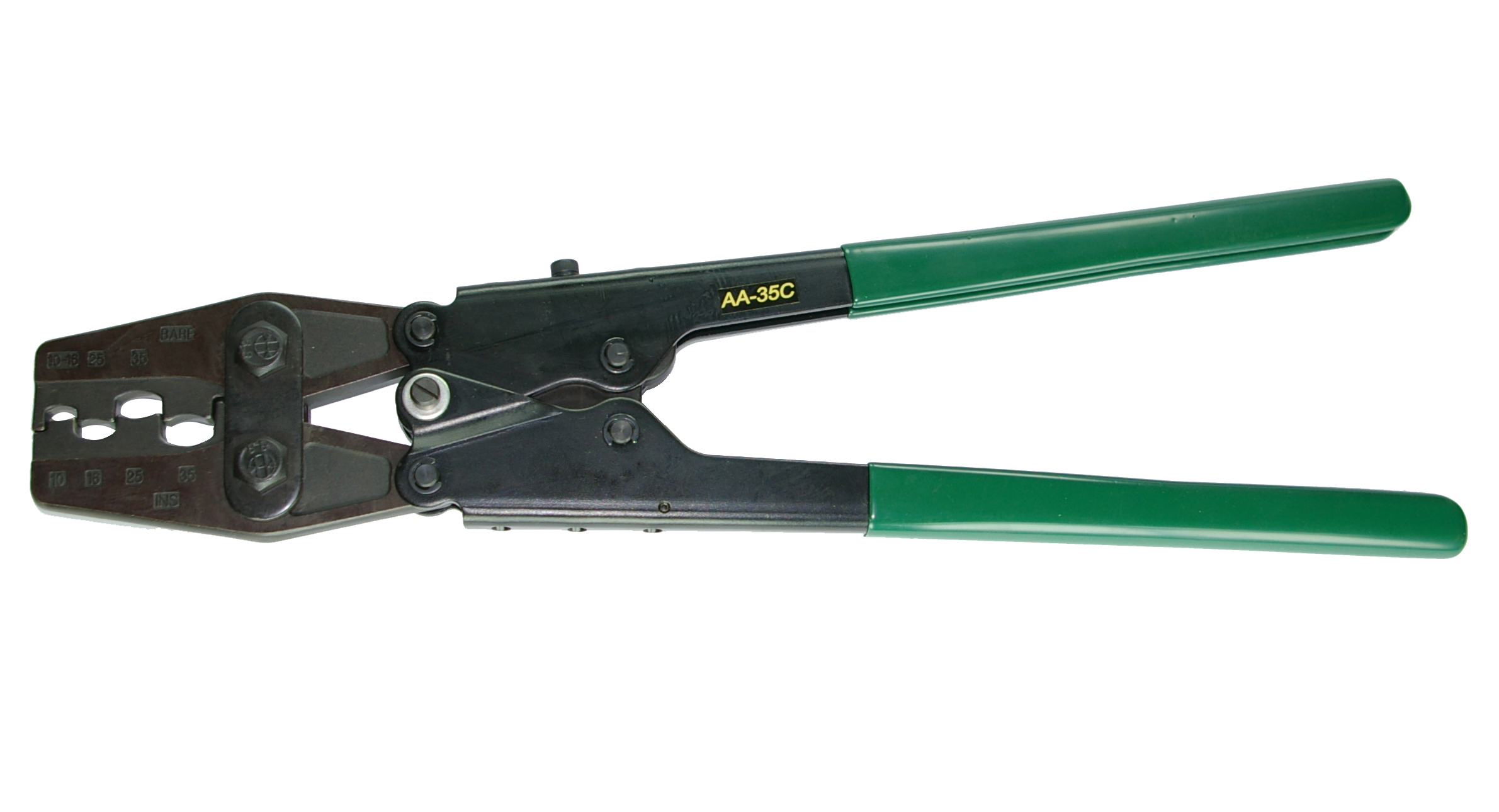

AA-35C
AA-35C is a symmetrical crimping tool for 10.0-35.0 mm² insulated terminals.
Also crimps uninsulated terminals from 10.0-35.0 mm².
There is 4 die nests:
1: 10.0 mm²
2: 16.0 mm²
3: 25.0 mm²
4: 35.0 mm²
Length: 490 mm
Technical properties
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Insulated terminals
- Compression shape:
- Oval pressing
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | Cross section | MOQ | Unit | Length | Availability | ||
|---|---|---|---|---|---|---|---|
| CRIMP TOOL INSULATED TERMINALS 10.0-35.0mm2, SYMMETRICAL | 10-35 mm² | 1 . | pcs | 490 mm |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Availability | ||
|---|---|---|---|
| CRIMP TOOL INSULATED TERMINALS 10.0-35.0mm2, SYMMETRICAL |
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | With locking device (for mechanical tools) | Inserts exchangeable | Number of included inserts | With automatic return | Cycle time | Suitable for | Construction/operation | For component | Compression shape | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CRIMP TOOL INSULATED TERMINALS 10.0-35.0mm2, SYMMETRICAL | No | No | 1 . | No | 2 s | Cable lugs and connectors | Mechanical | Insulated terminals | Oval pressing |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CRIMP TOOL INSULATED TERMINALS 10.0-35.0mm2, SYMMETRICAL | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
Two Hand (mechanical) | PRESSVERKTYG ISOLERADE KABELSKOR | AA-35C |
Yes
|
|
|
- Total: 1
