Hiprojacket Aero, Thermal protection
336 Hiprojacket
The ultimate heatprotection for cables and hoses. This solid braided glassfi ber sleeving, with thick silicone cover, is constructed according to the Aerospace Standard SAE AS1072 and allows qualified hose assemblies to pass the AS1055 testing. This Hiprojacket offers superior short term flame protection and excellent temperature reduction. In the fi eld of cable protection, a complete program of Hiprojacket fittings is available for easy installation. Resistant to hydraulic fl uids, lubricating oils and fuels, Hiprojacket protects against molten splash, occasional flames, heat radiation, energy loss in piping and hoses; also protects employees
from burns. Hiprojacket is typically used in the Aerospaceindustry, steelworks, glass and ceramics industry, as well as in the machine- and apparatus-building.
- Heat-resistant:
- Yes
- Stretch sleeve:
- No
- Max temperature under flame:
- 800°C for approx. 20 minutes
- Max temperature radiation heat:
- 800°C approx. 20 minutes
- Max temperature molten metal splash:
- 1640°C approx. 15-30 seconds
- Colour:
- Red
- Operating temperature:
- -55-260 °C

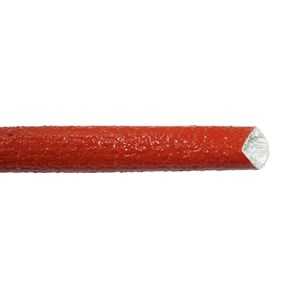

Hiprojacket Light, Thermal Protection
Hiprojacket värmeskyddsslang_röd_vp
Hiprojacket Light is a heat protective hose for cables and conduits.
Made of glass fibre and silicone rubber cover that protects from hydraulic fluids, lubricating oils and fuels.
Is often used to protect cables and wires in the machine- and apparatus-building.
- Heat-resistant:
- Yes
- Stretch sleeve:
- No
- Max temperature under flame:
- 538°C approx. 20 minutes
- Max temperature radiation heat:
- 538°C i approx. 20 minutes
- Max temperature molten metal splash:
- 1200°C approx. 15-30 seconds
- Colour:
- Red
- Operating temperature:
- -55-260 °C
