- Total: 2

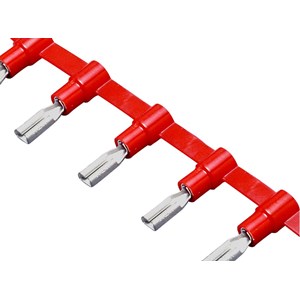

Receptacle on reel, ICTDN-series
Bandvara isolerade flatstiftshylsor ICTDN FL_vp
Insulated terminals on reel from Nichifu.
Brazed seam
Easy entry
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 15 A
- Insulation:
- Partially isolated
- Colour insulation:
- Red
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -40-75 °C
- Material:
- Brass
- Voltage max:
- 300V
- Packaging:
- Tape on Reel
- UL-File No.:
- E78965
Receptacle on reel, ICTDV-series
Bandvara isolerade flatstifthylsor ICTDV FL_vp
Insulated terminals on reel from Nichifu.
Brazed seam
Easy entry
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 15 A
- Insulation:
- Partially isolated
- Colour insulation:
- Red
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-75 °C
- Material:
- Brass
- Voltage max:
- 300V
- Packaging:
- Tape on Reel
- UL-File No.:
- E78965
- Total: 2
