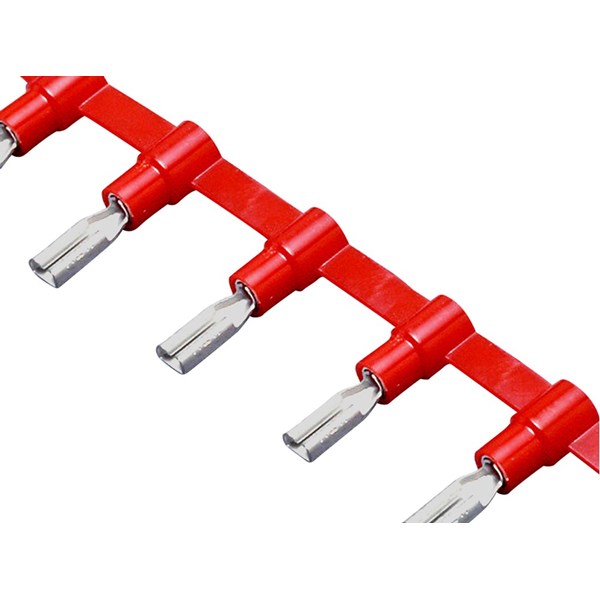

Receptacle on reel, ICTDV-series
Insulated terminals on reel from Nichifu.
Brazed seam
Easy entry
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 15 A
- Insulation:
- Partially isolated
- Colour insulation:
- Red
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-75 °C
- Material:
- Brass
- Voltage max:
- 300V
- Packaging:
- Tape on Reel
Show more
Item List
- Total: 2
- Total: 2
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_ICTDV-Series
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 2
| Product Description | MOQ | Unit | Nominal cross section | AWG-range | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|---|
| INSULATED RECEPTACLE RED, 4.8x0.8mm, PVC, REEL | 1500 . | pcs | 0.5-1.65 mm² | 22-16 . | Flat 4.8x0.8 mm |
Yes
|
|
|
| INSULATED RECEPTACLE RED, 2.8x0.5mm, PVC, REEL | 1500 . | pcs |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | UL-File No. | Approved according to CE | With approval according to UL | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|---|
| INSULATED RECEPTACLE RED, 4.8x0.8mm, PVC, REEL | E78965 |
|
|
|
Yes
|
|
|
| INSULATED RECEPTACLE RED, 2.8x0.5mm, PVC, REEL | E78965 |
|
|
|
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Fire classification | Operating temperature | Material | Voltage max | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED RECEPTACLE RED, 4.8x0.8mm, PVC, REEL | Yes | Yes | Bushing | 15 A | Partially isolated | Red | No | No | Polyvinyl chloride (PVC) | According to UL94V2 | -40-75 °C | Brass | 300V | Tape on Reel |
Yes
|
|
|
| INSULATED RECEPTACLE RED, 2.8x0.5mm, PVC, REEL | Yes | Yes | Partially isolated | Polyvinyl chloride (PVC) | According to UL94V2 | 300V |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| INSULATED RECEPTACLE RED, 4.8x0.8mm, PVC, REEL | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Receptacle - Reel | ISOL. FLATSTIFTSH., BV | ICTDV1504FL-8 |
Yes
|
|
|
| INSULATED RECEPTACLE RED, 2.8x0.5mm, PVC, REEL | EC000516 - Round or flat plug/receptacle | 9.0 | Receptacle - Reel | ISOL. FLATSTIFTSH., BV | ICTDV0503FL-5 |
Yes
|
|
|
- Total: 2
