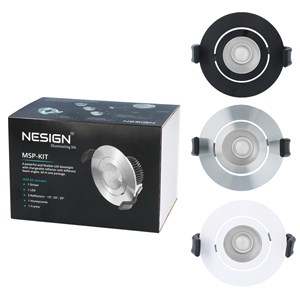

MSP Downlight 1-Pack
MSP Downlight
A very powerful LED in frame which can tilt.The optic angle can be changed by switching between included reflectors. Honey comb is included to reduce blinding.
Delivered in a complete kit including spotlight, frame, driver, three different reflectors, 15°, 25° and 35° and honey comb.Available in white, black or aluminum color.
Technical data:
Power: 12W
Lumen: See below.
Dimmable: Yes
Light beam spread: See below.
Color temp: See below.
IP rating: IP20
Temp. Range: -10°C to +50°C
Life-span: 70% after 50.000 h
Amperage: 350mA (constant)
Amount of LED’s: 1pcs
Type of LED: COB, CREE
CRI: 90
Optics: Reflector with a prism in front of the LED.
Energy rating: A++
Cable: 400 mm AWG20
Size: Diameter = 93 mm, Depth = 65 mm
Installation: In holes sized 78-88 mm.
Springs with rubber protection. Parallel connector can be used if 12W is too powerful. Can be driven at 50% or 33% of full performance if 1 or 2 extra downlights are installed with parallel connector using the same driver.
Recommended drivers: LDD185 = 1 spotlight. Included in the kit.
- Dimmable:
- Yes
- Dimming 0-10 V:
- No
- Dimming 1-10 V:
- No
- Dimming DALI:
- No
- Dimming DSI:
- No
- Dimming DMX:
- No
- Dimming potentiometer (integrated):
- No
- Dimming GPRS:
- No
- Dimming LineSwitch:
- No
- Dimming manufacturer's proprietary system:
- No
- Dimming mains voltage modulation:
- No
- Dimming phase cut-off (trailing edge):
- Yes
- Dimming phase cut-on (leading edge):
- Yes
- Dimming programmable:
- No
- Dimming RF:
- No
- Dimming Sine Wave Reduction:
- No
- Dimming Touch and Dim:
- No
- Dimming Zigbee:
- No
- Dimming with push-button:
- No
- Protection class according to IEC 61140:
- III
- Housing material:
- Aluminium
- Suitable for surface mounting:
- No
- Suitable for built-in mounting:
- Yes
- Suitable for wall mounting:
- No
- Suitable for suspended mounting:
- No
- Suitable for ceiling mounting:
- Yes
- Suitable for traverse mounting:
- No
- Suitable for pedestal/floor mounting:
- No
- Suitable for light-track mounting:
- No
- Suitable for clamp-mounting:
- No
- Suitable for low voltage cable system:
- No
- Adjustability:
- Rotatable
- With movement sensor:
- No
- With light sensor:
- No
- Lamp type:
- LED not exchangeable
- With light source:
- Yes
- Suitable for number of light sources:
- 1 .
- Lamp holder:
- None
- Housing colour:
- Aluminium, Black, White
- Material cover:
- None
- Surface brushed:
- Yes, No
- Voltage type:
- AC
- Nominal voltage:
- 220-240 V
- Type of control gear:
- LED operating device current-controlled
- With control gear:
- Yes
- Dimming depending on control gear:
- Yes
- Reflector:
- High-gloss
- Light distributor:
- Reflector
- Light distribution:
- Symmetric
- Beam angle:
- Variable beam angle
- Light outlet:
- Direct
- Energy efficiency class of the built-in lamp:
- A++, A+, A (LED)
- Degree of protection (NEMA):
- Other
- Suitable for lamp power:
- 0 N/A
- Max. system power:
- 13 W
- Colour of light:
- White
- Colour temperature:
- 3000 K
- Colour rendering index CRI:
- 90-100
- Luminous flux:
- 1170 lm
- Lamp efficacy:
- 90 lm/W
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:
- No
- Suitable for workplace according to EN 12464-1:
- No
- Covering of the luminaire with thermally insulating material possible:
- Yes
- Connection type:
- Crimping
- Frame shape:
- Round
- Degree of protection (IP):
- IP20
- Surface protection:
- Other, Powder coating
- Rated luminous flux according to IEC 62722-2-1:
- 1170 lm

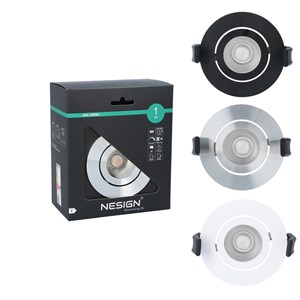

MSP Downlight 3CCT
MSP_Downlight_3CCT_vp
A very powerful LED in frame which can tilt. The optic angle can be changed by switching between included reflectors. Honey comb is included to reduce blinding.
Delivered in a complete kit including spotlight, frame, driver, three different reflectors, 15°, 25° and 35° and honey comb.
Available in white, black or aluminum color.
Technical data:
Power: 9W
Lumen: See below.
Dimmable: Yes
Light beam spread: See below.
Color temp: See below.
IP rating: IP20
Temp. Range: -10°C to +50°C
Life-span: 70% after 50.000 h
Amperage: 350 mA (constant)
Amount of LED’s: 1 pcs
Type of LED: COB, CREECRI: 90
Optics: Reflector with a prism in front of the LED.
Energy rating: A++
Cable: 400mm AWG20
Size: Diameter = 93 mm, Depth = 65 mm
Installation: In holes sized 78-88 mm.
Springs with rubber protection. Parallel connector can be used if 9W is too powerful. Can be driven at 50% or 33% of full performance if 1 or 2 extra downlights are installed with parallel connector using the same driver.
Recommended drivers: LDD185 = 1 spotlight. Included in the kit.
- Dimmable:
- Yes
- Dimming 0-10 V:
- No
- Dimming 1-10 V:
- No
- Dimming DALI:
- No
- Dimming DSI:
- No
- Dimming DMX:
- No
- Dimming potentiometer (integrated):
- No
- Dimming GPRS:
- No
- Dimming LineSwitch:
- No
- Dimming manufacturer's proprietary system:
- No
- Dimming mains voltage modulation:
- No
- Dimming phase cut-off (trailing edge):
- Yes
- Dimming phase cut-on (leading edge):
- Yes
- Dimming programmable:
- No
- Dimming RF:
- No
- Dimming Sine Wave Reduction:
- No
- Dimming Touch and Dim:
- No
- Dimming Zigbee:
- No
- Dimming with push-button:
- No
- Protection class according to IEC 61140:
- III
- Housing material:
- Aluminium
- Suitable for surface mounting:
- No
- Suitable for built-in mounting:
- Yes
- Suitable for wall mounting:
- No
- Suitable for suspended mounting:
- No
- Suitable for ceiling mounting:
- Yes
- Suitable for traverse mounting:
- No
- Suitable for pedestal/floor mounting:
- No
- Suitable for light-track mounting:
- No
- Suitable for clamp-mounting:
- No
- Suitable for low voltage cable system:
- No
- Adjustability:
- Rotatable
- With movement sensor:
- No
- With light sensor:
- No
- Lamp type:
- LED not exchangeable
- With light source:
- Yes
- Suitable for number of light sources:
- 1 .
- Lamp holder:
- None
- Housing colour:
- Aluminium, Black, White
- Material cover:
- None
- Surface brushed:
- Yes, No
- Voltage type:
- AC
- Nominal voltage:
- 220-240 V
- Type of control gear:
- LED operating device current-controlled
- With control gear:
- Yes
- Dimming depending on control gear:
- Yes
- Reflector:
- High-gloss
- Light distributor:
- Reflector
- Light distribution:
- Symmetric
- Beam angle:
- Variable beam angle
- Light outlet:
- Direct
- Energy efficiency class of the built-in lamp:
- F
- Degree of protection (NEMA):
- Other
- Suitable for lamp power:
- 0 N/A
- Max. system power:
- 9 W
- Colour of light:
- White
- Colour temperature:
- 2400-3000 K
- Colour rendering index CRI:
- 90-100
- Luminous flux:
- 863 lm
- Lamp efficacy:
- 90 lm/W
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:
- No
- Suitable for workplace according to EN 12464-1:
- No
- Covering of the luminaire with thermally insulating material possible:
- Yes
- Connection type:
- Crimping
- Frame shape:
- Round
- Degree of protection (IP):
- IP20
- Surface protection:
- Other, Powder coating
- Rated luminous flux according to IEC 62722-2-1:
- 863 lm
