- Total: 3

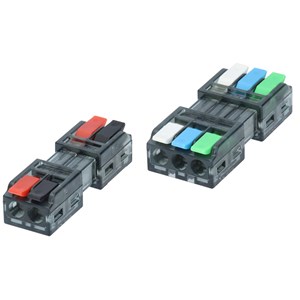

Splicing connector with lever
Öppningsbar_toppklämma_vp
Splicing connector for both solid and stranded cable.
Transparent cover for easy inspection of connector. No tool needed. Solid cables can be pushed in without opening the lever.
Stripping range: 11 mm
Contact resistance: ≤0. 015 Ω
Insulation resistance: ≥1000 MΩ
Material
Contact: Copper
Plastic parts: Polycarbonate (PC)
Spring: Stainless steel
- Nominal voltage:
- 450 V
- Nominal current:
- 32 A
- Transparent:
- Yes
- Number of clamp positions:
- 2-5 .
- With operation lever:
- Yes
- Suitable for solid core:
- Yes
- Suitable for flexible core:
- Yes
- Suitable for multi-wire core:
- Yes
- Colour:
- Green
- Operating temperature:
- -40-105 °C
- Connector type:
- Toppklämma, öppningsbar
- Packaging:
- Bag
Terminal block with lever, 1-3 Poles
Öppningsbara_skarvklämmor_SC-serien_vp
Terminal block for both solid and stranded cable.
Transparent cover for easy inspection of connector. No tool needed. Solid conductors can be connected when closed.
Stripping range: 12 mm
Contact resistance: ≤0. 015 Ω
Insulation resistance: ≥1000 MΩ
Material
Contact: Copper
Plastic parts: Polycarbonate (PC)
Spring: Stainless steel
- Nominal voltage:
- 450 V
- Nominal current:
- 32 A
- Transparent:
- Yes
- Number of clamp positions:
- 2-6 .
- With operation lever:
- Yes
- Suitable for solid core:
- Yes
- Suitable for flexible core:
- Yes
- Suitable for multi-wire core:
- Yes
- Colour:
- Green
- Operating temperature:
- -40-105 °C
- Connector type:
- Spliceing connector
- Packaging:
- Bag

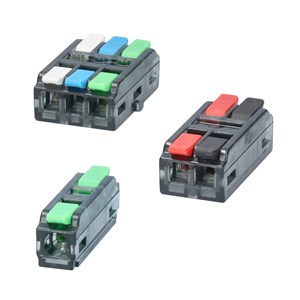

Öppningsbara Toppklämmor
Toppklämmor öppningsbara
Kabelklämmor för både solid och flertrådig kabel.
Genomskinligt skal för lätt inspektion av koppling. Inget verktyg behövs för montering av kabel. Solida ledare kan föras in även när klämman är stängd.
Spänning: 450 V
Ström: 24A
Temperatur: 120° C
Kabelarea 0.2-2.5 mm²
- Nominal voltage:
- 450 V
- Nominal current:
- 24 A
- Transparent:
- Yes
- Number of clamp positions:
- 2 .
- With operation lever:
- Yes
- Suitable for solid core:
- Yes
- Suitable for flexible core:
- Yes
- Suitable for multi-wire core:
- Yes
- Colour:
- Blue
- Operating temperature:
- -60-120 °C
- Connector type:
- Toppklämma, öppningsbar
- Packaging:
- Carton (box)
- Total: 3
