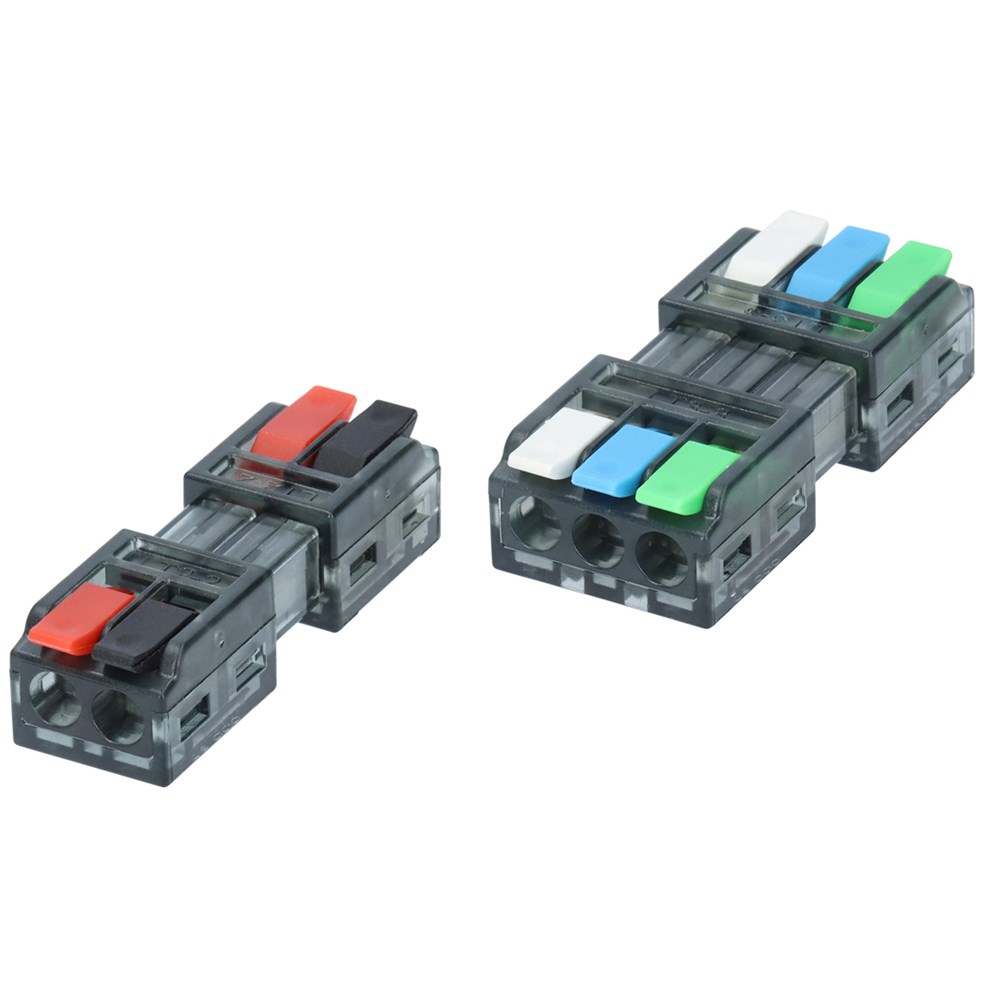

Skarvkontakter 2-3 Poler
Skarvkontakter för både solid och flertrådig kabel.
Genomskinligt skal för lätt inspektion av koppling. Inget verktyg behövs för kontaktering. Kontakteringen av resp kabel är öppningsbar för enkel omkoppling. Solida ledare kan föras in även när klämman är stängd.
Skallängd: 12 mm
Kontakt motstånd: ≤0. 015 Ω
Isolationsmotstånd: ≥1000 MΩ
Material
Kontakt: Koppar
Plast: Polykarbonat (PC)
Fjäder: Rostfritt stål
Technical properties
- Nominal voltage:
- 450 V
- Nominal current:
- 32 A
- Transparent:
- Yes
- Number of clamp positions:
- 4 ., 6 .
- With operation lever:
- Yes
- Suitable for solid core:
- Yes
- Suitable for flexible core:
- Yes
- Suitable for multi-wire core:
- Yes
- Colour:
- Multi-coloured
Show more
Item List
- Total: 2
- Total: 2
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 2
| Product Description | Cable diameter | Conductor cross section flexible (fine-strand) with cable end sleeve | Conductor cross section solid (solid, stranded) | MOQ | Unit | Nominal cross section | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| SPLICING CONNECTOR DISCONNECTS, 2-POLE, 0.5-4.0mm2 AWG 20-14, WITH LEVER, RED/BLACK | 1-4 mm | 0.5-4 mm² | 0.5-4 mm² | 25 . | pcs | 0.5-4 mm² | 450 V |
Yes
|
|
|
| SPLICING CONNECTOR DISCONNECTS, 3-POLE, 0.5-4.0mm2 AWG 20-14, WITH LEVER, WHITE/BLUE/GREEN | 1-4 mm | 0.5-4 mm² | 0.5-4 mm² | 25 . | pcs | 0.5-4 mm² | 450 V |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
- Total: 2
Technical Properties
- Total: 2
| Product Description | Nominal voltage | Nominal current | Transparent | Number of clamp positions | With operation lever | Suitable for solid core | Suitable for flexible core | Suitable for multi-wire core | Colour | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPLICING CONNECTOR DISCONNECTS, 2-POLE, 0.5-4.0mm2 AWG 20-14, WITH LEVER, RED/BLACK | 450 V | 32 A | Yes | 4 . | Yes | Yes | Yes | Yes | Multi-coloured |
Yes
|
|
|
| SPLICING CONNECTOR DISCONNECTS, 3-POLE, 0.5-4.0mm2 AWG 20-14, WITH LEVER, WHITE/BLUE/GREEN | 450 V | 32 A | Yes | 6 . | Yes | Yes | Yes | Yes | Multi-coloured |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Product Group | Search Description | Alternative SKU | E-no | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SPLICING CONNECTOR DISCONNECTS, 2-POLE, 0.5-4.0mm2 AWG 20-14, WITH LEVER, RED/BLACK | EC000446 - Screwless terminal | 9.0 | Skarv & Toppklämmor - Standard Pack | SKV2025EJ | SCD-40540-S | E1441361 |
Yes
|
|
|
| SPLICING CONNECTOR DISCONNECTS, 3-POLE, 0.5-4.0mm2 AWG 20-14, WITH LEVER, WHITE/BLUE/GREEN | EC000446 - Screwless terminal | 9.0 | Skarv & Toppklämmor - Standard Pack | SKV2025EJ | SCD-60540-S | E1441362 |
Yes
|
|
|
- Total: 2
