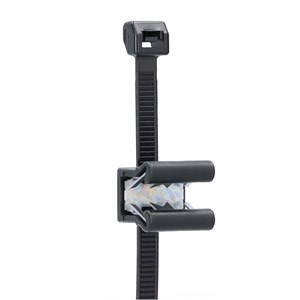

Cable tie with edge clips - Top mounted & inside serrated
Buntband_med_kantklips-Toppmontage_inv.tandning_vp
Cable ties with edge clips can, for example, be used where there is no possibility of mounting holes or where there are difficulties for adhesive to adhere. These products are used for fixing cables, hoses & pipes. Commonly used in the automotive industry, cable manufacturers, cabinet builders, and other industries. The clips come pre-assembled on the cable ties.
The following combinations of cable ties with clips are available:
- Clips for edge thickness 1-3 mm or 3-6 mm.
- Cable ties with inner or outer serrations.
- Side-mounted or top-mounted cable ties.
- Cable ties can run along or across the edge(direction can be turned).
More combinations can be developed if needed.
Material cable ties: PA66HS UV
Material edge clips: PA66HIRHS UV
- Detectable:
- No
- Min. tensile strength:
- 180-230 N
- Model:
- Internal toothing
- Material quality:
- Polyamide (PA)
- Band closure:
- Plastic lip/-cam
- Transparent:
- No
- Fluorescent:
- No
- Solvable fastener:
- No
- Text strip:
- None
- Type of fastening:
- Edge clip
- Colour:
- Black
- Material:
- Plastic
- Max. tensile force:
- 180-230 N
- MIL approval:
- No
- VG approval:
- No
- UL approval:
- No
- Approved according to CE:
- No
- With approval according to UL:
- No
- Inflammability class of insulation material according to with UL94:
- Other, HB
- Approved according to DNV:
- No

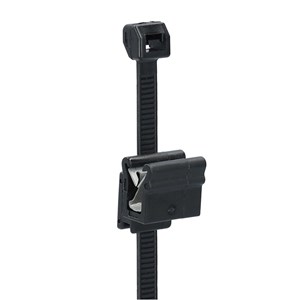

Cable tie with edge clips - Side mounted & outside serrated
Buntband_med_kantklips-Sidmontage_utv.tandning_vp
Cable ties with edge clips can, for example, be used where there is no possibility of mounting holes or where there are difficulties for adhesive to adhere. These products are used for fixing cables, hoses & pipes. Commonly used in the automotive industry, cable manufacturers, cabinet builders, and other industries. The clips come pre-assembled on the cable ties.
The following combinations of cable ties with clips are available:
- Clips for edge thickness 1-3mm or 3-6mm.
- Cable ties with inner or outer serrations.
- Side-mounted or top-mounted cable ties.
- Cable ties can run along or across the edge (direction can be turned).
More combinations can be developed if needed.
Material cable ties: PA66HS UV
Material edge clips: PA66HIRHS UV
- Detectable:
- No
- Min. tensile strength:
- 230 N
- Model:
- Internal toothing
- Material quality:
- Polyamide (PA)
- Band closure:
- Plastic lip/-cam
- Transparent:
- No
- Fluorescent:
- No
- Solvable fastener:
- No
- Text strip:
- None
- Type of fastening:
- Edge clip
- Colour:
- Black
- Material:
- Plastic
- Max. tensile force:
- 230 N
- MIL approval:
- No
- VG approval:
- No
- UL approval:
- No
- Approved according to CE:
- No
- With approval according to UL:
- No
- Inflammability class of insulation material according to with UL94:
- Other
- Approved according to DNV:
- No

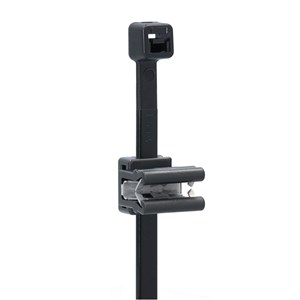

Cable tie with edge clips - Top mounted & outside serrated
Buntband_med_kantklips-Toppmontage_utv.tandning_vp
Cable ties with edge clips can, for example, be used where there is no possibility of mounting holes or where there are difficulties for adhesive to adhere. These products are used for fixing cables, hoses & pipes. Commonly used in the automotive industry, cable manufacturers, cabinet builders, and other industries. The clips come pre-assembled on the cable ties.
The following combinations of cable ties with clips are available:
- Clips for edge thickness 1-3mm or 3-6 mm.
- Cable ties with inner or outer serrations.
- Side-mounted or top-mounted cable ties.
- Cable ties can run along or across the edge(direction can be turned).
More combinations can be developed if needed.
Material cable ties: PA66HS UV
Material edge clips: PA66HIRHS UV
- Detectable:
- No
- Min. tensile strength:
- 230 N
- Model:
- Internal toothing
- Material quality:
- Polyamide (PA)
- Band closure:
- Plastic lip/-cam
- Transparent:
- No
- Fluorescent:
- No
- Solvable fastener:
- No
- Text strip:
- None
- Type of fastening:
- Edge clip
- Colour:
- Black
- Material:
- Plastic
- Max. tensile force:
- 230 N
- MIL approval:
- No
- VG approval:
- No
- UL approval:
- No
- Approved according to CE:
- No
- With approval according to UL:
- No
- Inflammability class of insulation material according to with UL94:
- Other
- Approved according to DNV:
- No

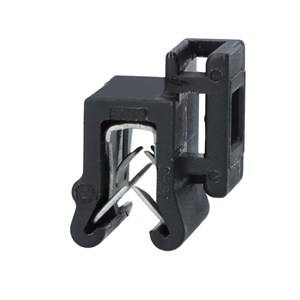

Edge clips - Side mounted
Kantklips_EC_S13_vp
Edge clips can, for example, be used where there is no possibility of mounting holes or where there are difficulties for adhesive to adhere. These products are used for fixing cables, hoses & pipes. Commonly used in the automotive industry, cable manufacturers, cabinet builders, and other industries.
The clips comes without cable ties.
- For Edge thickness 1-3mm or 3-6mm.
- Cable ties with inner or outer serrations can be used.
- Cable ties can run along or across the edge (direction can be turned).
- For 3.6 or 4.8mm cable ties.
Material edge clips: PA66HIRHS UV

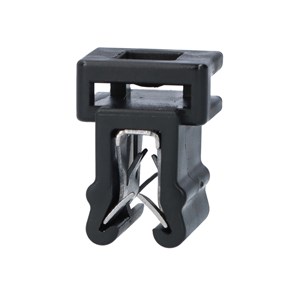

Edge clips - Top Mounted
Kantklips_Topmontage_vp
Edge clips can, for example, be used where there is no possibility of mounting holes or where there are difficulties for adhesive to adhere. These products are used for fixing cables, hoses & pipes. Commonly used in the automotive industry, cable manufacturers, cabinet builders, and other industries.
The clips comes without cable ties.
- For Edge thickness 1-3mm or 3-6mm.
- Cable ties with inner or outer serrations can be used.
- Cable ties can run along or across the edge (direction can be turned).
- For 3.6 or 4.8mm cable ties.
Material edge clips: PA66HIRHS UV
Pastic cable ties with 2 part fixing straps with edge clips
66637
Cable ties with 2 part fixing straps with edge clips 1-3 mm.
Cable tie head can be moved after bundling.
Material: Heat resistant Polyamid 6.6
Flammability class: UL 94 HB
- Detectable:
- No
- Min. tensile strength:
- 135-225 N
- Model:
- Internal toothing, External toothing
- Material quality:
- Polyamide (PA)
- Operating temperature:
- -40-105 °C
- Band closure:
- Plastic lip/-cam
- UV-stable acc. ASTM D6779:
- Yes
- Transparent:
- No
- Fluorescent:
- No
- Solvable fastener:
- No
- Text strip:
- None
- Type of fastening:
- Edge clip
- Colour:
- Black
- Surface protection:
- Untreated
- Material:
- Plastic
- Halogen free:
- Yes
- Max. tensile force:
- 135-225 N
- Inflammability class of insulation material according to with UL94:
- Other
