- Total: 7

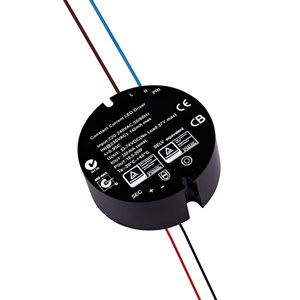

Driver for LED 18.5-26W
LED DRIVDON 350mA 18.5-26W
Drivers for LED downlights.
Technical data:
Voltage: 220-240 VAC
Frequency: 50-60 Hz
Size (LxWxH): See table below.
Power: See table below.
Temperature range: -20°C to +50°
CIP rating: IP65
Cable: Input: 100mm, 0.5mm2. Output: 200mm, AWG22.
LDD26S: Suited for 6-8 LED from the LSP-series or 2 LED from the MSP-series. See accessories below for appropriate connectors.
- Suitable for outdoor use:
- Yes
- Dimming phase cut-off (trailing edge):
- No
- Dimming phase cut-on (leading edge):
- No
- Housing:
- Plastic housing
- Suitable for constant current:
- Yes
- Suitable for constant voltage:
- No
- Output voltage:
- 53-74 V
- Output current:
- 350 mA
- Output power:
- 18.5-26 W
- Protection class according to IEC 61140:
- III
- Degree of protection (IP):
- IP65
- Model:
- Dynamic
Dimbara drivdon konstant ström
LED DRIVDON DIMM 350mA
Drivers for LED downlights.
Technical data:
Voltage: 220-240 VAC
Frequency: 50-60 Hz
Size (LxWxH): See table below.
Power: See table below.
Temp. Range: -20°C to +50°C
IP rating: IP65
Dimming: Leading or Trailing Edge
Cable:Input: 100mm, 0.5mm2.
Output: 200mm, AWG22.
LDD04S: Suited for 1 LED’s from the LSP-series.
LDD08S: Suited for 2 LED’s from the LSP-series.
LDD12S: Suited for 2-3 LED’s from the LSP-series.
LDD19S: Suited for 3-5 LED’s from the LSP-series.
See accessories below for appropriate connectors.
- Suitable for outdoor use:
- Yes
- Dimming phase cut-off (trailing edge):
- Yes
- Dimming phase cut-on (leading edge):
- Yes
- Housing:
- Plastic housing
- Suitable for constant current:
- Yes
- Suitable for constant voltage:
- No
- Output voltage:
- 6.5-11.5 V
- Output current:
- 350 mA
- Output power:
- 2.5-4 W
- Protection class according to IEC 61140:
- III
- Degree of protection (IP):
- IP65
- Model:
- Dynamic
Dimbart drivdon konstant spänning

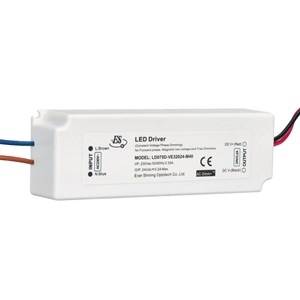

LDD75CV_VP
Drivers for LED StripsTechnical data:Voltage: 220-240 VACFrequency: 50-60 HzSize (LxWxH): 135x45x32mmTemp. Range: -20°C to +50°CIP rating: IP65Dimming: Leading Edge & TRIACIP rating: IP65
Installation:Cables for both input and output are 150mm, 1.5mm2.Suitable to be installed on top of suspended ceilings, inside lockers etc.See accessories below for appropriate connector.
- Suitable for outdoor use:
- Yes
- Dimming phase cut-off (trailing edge):
- Yes
- Dimming phase cut-on (leading edge):
- Yes
- Housing:
- Plastic housing
- Suitable for constant current:
- No
- Suitable for constant voltage:
- Yes
- Output voltage:
- 24 V
- Output current:
- 0-3200 mA
- Output power:
- 0-75 W
- Protection class according to IEC 61140:
- III
- Degree of protection (IP):
- IP65
- Model:
- Dynamic
- Availability:
-
Yes
Dimbara drivdon konstant ström
LED DRIVDON DIMM 350mA_Bulk_vp
Passar ovan undertak, i skåp eller i dosor.
Matning: 220-240VAC, 50-60Hz.
Storlek: Se nedan tabell
Effekt: Se nedan tabell
Temperaturområde: -20° C till +50° C
IP65
Dimmning: Leading or Trailing Edge
Kabel: Matningssida 100 mm, 0.5 mm².
Utspänning 200mm, AWG22.
LDD04S-BULK. Passar till 1st LED från LSP-Serien.
LDD08S-BULK. Passar till 2st LED från LSP-serien.
LDD12S-BULK. Passar till 3-4st LED från LSP-serien.
LDD18S-BULK. Passar till 4-5st LED från LSP-serien eller 1st från MSP-serien.
LDD19S. Passar till 4-6st LED från LSP-serien eller 1st från MSP-serien.
LDD26S-BULK. Passar till 6-7st LED från LSP-serien eller 2st från MSP-serien.
- Availability:
-
Yes
