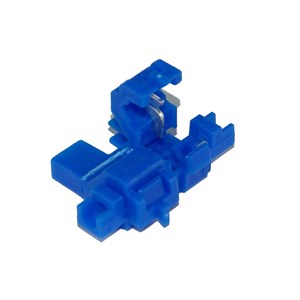

Self stripping tap connectors
66803
Tap connectors with male tab connection.
Industrial quality from 3M. Electrically connects a through (run) wire and a male tab. Only for copper wires.
Maximum Recommended Voltage Rating: 600 V
- Model:
- Single-conductor connector
- Colour insulation:
- Blue, Red
- Grease filling against corrosion:
- No
- Max. number of cores:
- 1 .
- Temperature:
- -40-105 °C
- Interrupt free shifting:
- No
- Colour:
- Red, Blue
- Material insulation:
- Polypropylene (PP)
- Connector type:
- Spliceing connector
- Packaging:
- Loose piece, Bulk
Self stripping tap connectors
66801
Tap connectors in industrial quality from 3M.
Electrically connects a (tap) wire end to a through (run) wire and insulates the connection. Designed for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems, automotive/boat/RV wiring. Only for copper wires.
Maximum Recommended Voltage Rating: 600 V
Temperature range: Up to 90º C (194º F)
Flameretardant
- Model:
- Branch
- Colour insulation:
- Blue, Brown, Yellow
- Grease filling against corrosion:
- No
- Max. number of cores:
- 2 .
- Temperature:
- -40-90 °C
- Interrupt free shifting:
- Yes
- Colour:
- Yellow, Brown, Blue
- Material insulation:
- Polypropylene (PP)
- Connector type:
- Spliceing connector
- Packaging:
- Loose piece, Bulk
Self stripping tap connectors
87775
Electrically connects a (tap) wire end to a through (run) wire and insulates the connection. Designed for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems, automotive/boat/RV wiring. Only for copper wires.
Maximum Recommended Voltage Rating: 600 V
Temperature range: Up to 90º C (194º F)
- Model:
- Branch
- Colour insulation:
- Red
- Grease filling against corrosion:
- No
- Max. number of cores:
- 2 .
- Temperature:
- -40-90 °C
- Interrupt free shifting:
- Yes
- Colour:
- Red
- Material insulation:
- Polypropylene (PP)
- Connector type:
- Spliceing connector
- Packaging:
- Loose piece, Bulk
Skarvklämma
Skarvklämma 557_vp
I skarvklämman kan 2 kablar från samma håll skarvas. Kablarna behöver inte skalas innan skarvning. Endast för kopparkabel.
Spänning: 600 V
Self stripping pigtail wire splice connector
SKARVKLÄMMA VATTENTÄT IDC
Insulation Displacement Connector (IDC) for conenction of 2 or 3 wires.
Simply press the sharp insert through the cable jacket and create a quick and secure termination.
Gel filled to prevent corrosion and promotes sealing.
Only to use with cupper cable.
Max voltage: 600V
- Model:
- Single-conductor connector
- Colour insulation:
- Blue
- Grease filling against corrosion:
- Yes
- Max. number of cores:
- 3 .
- Temperature:
- -40-105 °C
- Interrupt free shifting:
- No
- Material insulation:
- Polyamide (PA)
Electrical tape - Temflex 155
Temflex 155_vp
3M™ Temflex™ Tape 155 is an affordable solution for everyday cable marking, insulation and bundling in various environments.
Perfect for general daily taping needs.
- Self-adhesive fabric tape:
- No
- Tearable by hand:
- Yes
- Magnetic:
- No
- Double-sided:
- No
- Insulating:
- Yes
- Temperature resistance:
- 0-80 °C
- Self sticking/amalgamating:
- No
- Suitable for high voltage:
- No
- Vulcanizing:
- No
- Transparent:
- No
- Fluorescent:
- No
- Colour:
- Black
- Material:
- Polyvinyl chloride (PVC)
- Suitable in fire resistance areas:
- Yes
Electrical tape - Temflex 165 Colors
Temflex 165_10 färger_vp
3M™ Temflex™ 165 Vinyl Electrical Tape is a good quality, 0.15 mm thick, multi‑purpose vinyl insulating tape.
It has a great resistance to moisture and varying weather conditions. It is a polyvinyl chloride (PVC) that is flame-retardant and comfortable. 3M™ Temflex™ 165
- Self-adhesive fabric tape:
- No
- Tearable by hand:
- Yes
- Magnetic:
- No
- Double-sided:
- No
- Insulating:
- Yes
- Temperature resistance:
- 0-90 °C
- Self sticking/amalgamating:
- No
- Suitable for high voltage:
- No
- Vulcanizing:
- No
- Transparent:
- No
- Fluorescent:
- No
- Colour:
- Other
- Material:
- Polyvinyl chloride (PVC)
- Suitable in fire resistance areas:
- Yes
Electrical tape - Temflex 175
Temflex 175_vp
3M™ Temflex™ 175 Vinyl Electrical Tape is a premium grade, 0.18 mm thick, high-performance general-purpose flame-retardant vinyl insulating tape.
It is designed to perform in ambient temperatures up to 90°C. The tape is conformable for cold weather application down to -10°C. It has excellent resistance to abrasion, moisture, alkalis, acid, copper corrosion and varying weather conditions. The combination of an elastic PVC backing and pressure-sensitive rubber-based adhesive provides electrical and mechanical protection with minimum bulk.
- Self-adhesive fabric tape:
- No
- Tearable by hand:
- Yes
- Magnetic:
- No
- Double-sided:
- No
- Insulating:
- Yes
- Temperature resistance:
- -10-90 °C
- Self sticking/amalgamating:
- No
- Suitable for high voltage:
- No
- Vulcanizing:
- No
- Transparent:
- No
- Fluorescent:
- No
- Colour:
- Black
- Material:
- Polyvinyl chloride (PVC)
- Suitable in fire resistance areas:
- Yes
Electrical tape - Super 33+
Eltejp Super 33+_vp
For your most demanding electrical maintenance and repair jobs where reliable performance and quality are essential, use Scotch® Super 33+™ Vinyl Electrical Tape.
The unique combination of aggressive, adhesive rubber and elastic PVC back material provides a moisture-proof, both electrical and mechanical protection. Its excellent strength, flexibility and recovery allows it to be stretched up to 250% without breaking.
- Self-adhesive fabric tape:
- No
- Tearable by hand:
- Yes
- Magnetic:
- No
- Double-sided:
- No
- Insulating:
- Yes
- Temperature resistance:
- -18-105 °C
- Self sticking/amalgamating:
- No
- Suitable for high voltage:
- No
- Vulcanizing:
- No
- Transparent:
- No
- Fluorescent:
- No
- Colour:
- Black
- Material:
- Polyvinyl chloride (PVC)
- Suitable in fire resistance areas:
- Yes
Electrical tape - Temflex 165 Black
Temflex 165_svart_vp
3M™ Temflex™ 165 Vinyl Electrical Tape is a good quality, 0.15 mm thick, multi‑purpose vinyl insulating tape.
It has a great resistance to moisture and varying weather conditions. It is a polyvinyl chloride (PVC) that is flame-retardant and comfortable. 3M™ Temflex™ 165
- Self-adhesive fabric tape:
- No
- Tearable by hand:
- Yes
- Magnetic:
- No
- Double-sided:
- No
- Insulating:
- Yes
- Temperature resistance:
- 0-90 °C
- Self sticking/amalgamating:
- No
- Suitable for high voltage:
- No
- Vulcanizing:
- No
- Transparent:
- No
- Fluorescent:
- No
- Colour:
- Black
- Material:
- Polyvinyl chloride (PVC)
- Suitable in fire resistance areas:
- Yes
Electrical tape - Scotch 35
ELTEJP_35_vp
Scotch® 35™ Vinyl Electrical Tape is a polyvinyl chloride (PVC) colour coding tape. Outstanding electrical and mechanical properties make this tape suitable for use in phase identification, colour coding of motor leads and piping systems, and for marking safety areas. Scotch® 35™ Vinyl Electrical Tape operates over a wide range of temperatures up to 105°C. The tape is conformable for cold weather applications down to -10°C.
UL-Listed, CSA approved and has a VDE Marks License for IEC 60454-3-1-6/F-PVC P/90.
This tape is available in nine fades resistant colours.
- Self-adhesive fabric tape:
- No
- Tearable by hand:
- Yes
- Magnetic:
- No
- Double-sided:
- No
- Insulating:
- Yes
- Self-extinguishing:
- No
- Temperature resistance:
- -10-105 °C
- Self sticking/amalgamating:
- No
- Suitable for high voltage:
- Yes
- Vulcanizing:
- No
- Transparent:
- No
- Fluorescent:
- No
- Colour:
- Green, Grey, Orange, Yellow, Brown, Red, White, Blue, Pink
- Material:
- Polyvinyl chloride (PVC)
- Suitable in fire resistance areas:
- Yes
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Plug
- Max. current (Imax):
- 10-24 A
- Insulation:
- Fully isolated
- Colour insulation:
- Blue, Red
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -60-105 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- Yes
- Packaging:
- Loose piece
- Total: 13
