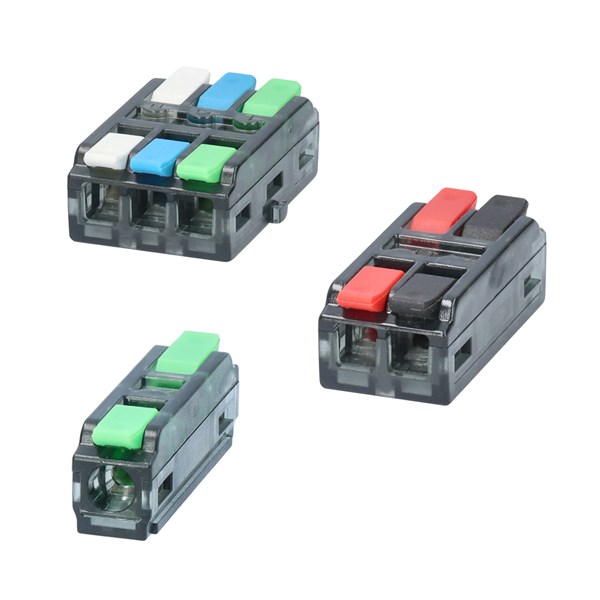

Terminal block with lever, 1-3 Poles
Terminal block for both solid and stranded cable.
Transparent cover for easy inspection of connector. No tool needed. Solid conductors can be connected when closed.
Stripping range: 12 mm
Contact resistance: ≤0. 015 Ω
Insulation resistance: ≥1000 MΩ
Material
Contact: Copper
Plastic parts: Polycarbonate (PC)
Spring: Stainless steel
Technical properties
- Nominal voltage:
- 450 V
- Nominal current:
- 32 A
- Transparent:
- Yes
- Number of clamp positions:
- 2 ., 4 ., 6 .
- With operation lever:
- Yes
- Suitable for solid core:
- Yes
- Suitable for flexible core:
- Yes
- Suitable for multi-wire core:
- Yes
- Colour:
- Green
- Operating temperature:
- -40-105 °C
- Connector type:
- Spliceing connector
- Packaging:
- Bag
Show more
Item List
- Total: 4
- Total: 4
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Declaration of Conformity_SC Serien
Dimensions
- Total: 4
| Product Description | Cable diameter | Conductor cross section flexible (fine-strand) with cable end sleeve | MOQ | Unit | Nominal cross section | AWG-range | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| SPLICING CONNECTOR, 1-POL, 0.5-2.5mm2 AWG 20-14, WITH LEVER, GREEN | 1-4 mm | 0.5-2.5 mm² | 50 . | pcs | 0.5-2.5 mm² | 20-14 . | 450 V |
Yes
|
|
|
| SPLICING CONNECTOR, 2-POL, 0.5-2.5mm2 AWG 20-14, WITH LEVER, RED/BLACK | 1-4 mm | 0.5-2.5 mm² | 50 . | pcs | 0.5-2.5 mm² | 20-14 . | 450 V |
Yes
|
|
|
| SPLICING CONNECTOR, 3-POL, 0.5-2.5mm2 AWG 20-14, WITH LEVER, WHITE/BLUE/GREEN | 1-4 mm | 0.5-2.5 mm² | 25 . | pcs | 0.5-2.5 mm² | 20-14 . | 450 V |
Yes
|
|
|
| HOLDER FOR SC-4 0240-S & SC-6 0240-S HOLE 3.2mm | 100 . | pcs |
Yes
|
|
|
- Total: 4
Similar Options
Approvals
- Total: 4
| Product Description | Approved according to CE | Approved according to UKCA | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|
| SPLICING CONNECTOR, 1-POL, 0.5-2.5mm2 AWG 20-14, WITH LEVER, GREEN |
|
|
|
Yes
|
|
|
| SPLICING CONNECTOR, 2-POL, 0.5-2.5mm2 AWG 20-14, WITH LEVER, RED/BLACK |
|
|
|
Yes
|
|
|
| SPLICING CONNECTOR, 3-POL, 0.5-2.5mm2 AWG 20-14, WITH LEVER, WHITE/BLUE/GREEN |
|
|
|
Yes
|
|
|
| HOLDER FOR SC-4 0240-S & SC-6 0240-S HOLE 3.2mm |
|
Yes
|
|
|
- Total: 4
Technical Properties
- Total: 4
| Product Description | Nominal voltage | Nominal current | Transparent | Number of clamp positions | With operation lever | Suitable for solid core | Suitable for flexible core | Suitable for multi-wire core | Colour | Operating temperature | Connector type | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPLICING CONNECTOR, 1-POL, 0.5-2.5mm2 AWG 20-14, WITH LEVER, GREEN | 450 V | 32 A | Yes | 2 . | Yes | Yes | Yes | Yes | Green | -40-105 °C | Spliceing connector | Bag |
Yes
|
|
|
| SPLICING CONNECTOR, 2-POL, 0.5-2.5mm2 AWG 20-14, WITH LEVER, RED/BLACK | 450 V | 32 A | Yes | 4 . | Yes | Yes | Yes | Yes | Green | -40-105 °C | Spliceing connector |
Yes
|
|
|
|
| SPLICING CONNECTOR, 3-POL, 0.5-2.5mm2 AWG 20-14, WITH LEVER, WHITE/BLUE/GREEN | 450 V | 32 A | Yes | 6 . | Yes | Yes | Yes | Yes | Green | -40-105 °C | Spliceing connector |
Yes
|
|
|
|
| HOLDER FOR SC-4 0240-S & SC-6 0240-S HOLE 3.2mm |
Yes
|
|
|
- Total: 4
Other information
- Total: 4
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SPLICING CONNECTOR, 1-POL, 0.5-2.5mm2 AWG 20-14, WITH LEVER, GREEN | EC000446 - Screwless terminal | 9.0 |
|
102010 | SKH2023ERIK1 ENR2023V | SC-20525-S |
Yes
|
|
|
| SPLICING CONNECTOR, 2-POL, 0.5-2.5mm2 AWG 20-14, WITH LEVER, RED/BLACK | EC000446 - Screwless terminal | 9.0 |
|
102010 | ENR2023H SKV2024ERIK2 | SC-40525-S |
Yes
|
|
|
| SPLICING CONNECTOR, 3-POL, 0.5-2.5mm2 AWG 20-14, WITH LEVER, WHITE/BLUE/GREEN | EC000446 - Screwless terminal | 9.0 |
|
102010 | ENR2023H SKV2024ERIK2 | SC-60525-S |
Yes
|
|
|
| HOLDER FOR SC-4 0240-S & SC-6 0240-S HOLE 3.2mm | EC000446 - Screwless terminal | 9.0 |
|
102010 | SKV2024ERIK3 | SCH-S-3.2 |
Yes
|
|
|
- Total: 4
