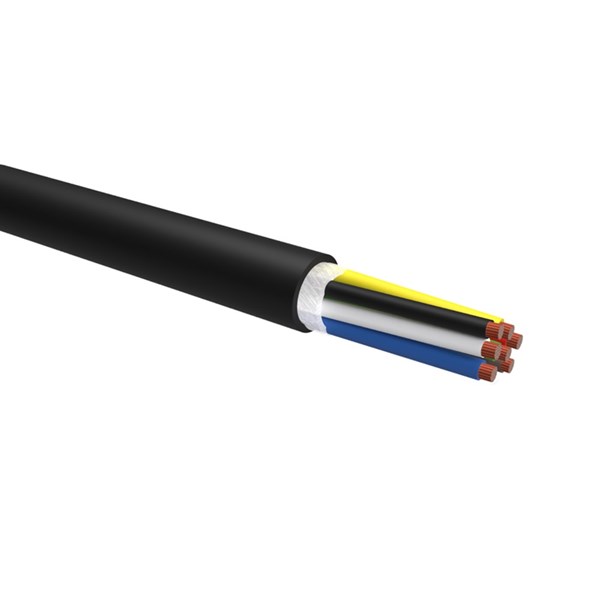

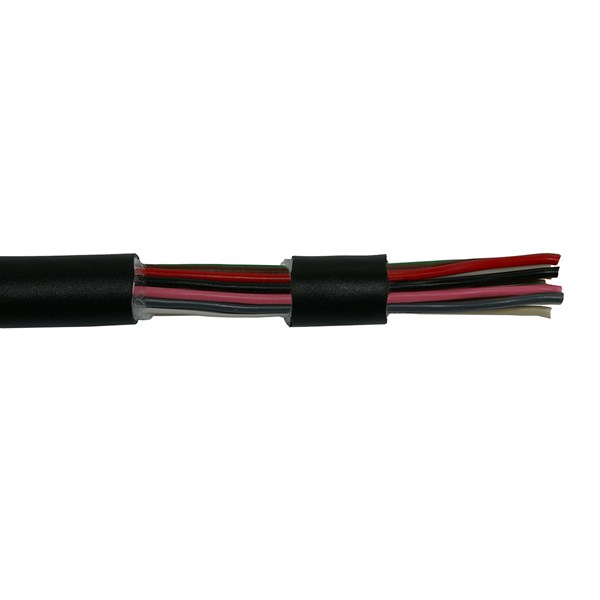

ADR-kabel
Low-voltage cable in PVC / PVC / PUR for transportation of dangerous material in accordance with DIN 72 570 Teil 10, GGVS / ADR Anhang B2. ADR cable is designed for use in commercial vehicle manufacturing. It is used for electrical installations on various types of trailers and truck trailers for transport of dangerous material as GGVS / ADR. The cables are UV and cold resistant, and thanks to the sheath material of PUR, in large extent it is even oil-, weather- and chemical resistant. The outer sheath of PUR makes the cable rubbing resistant, micro resistant and hydrolysis resistant. The cables are developed according to international standard, ISO 4141.
Packaging: Coil/Drum
Structure
Conductor: Stranded blank copper wire.
Conductor insulation: PVC-based conductor insulation. The conductors twisted in layers.
Inner Sheath: Special mixture on PVC base.
Outer Sheath: Special polyurethan (PUR), black.
Color code: According to ISO 4141-3, see pdf under documents.
Technical data:
Rating peak voltage (not for strong Power): 60V
Test voltage: 5 kV, minimum 5 minutes
Insulation resistance: 10 Mohm x km
Minimum bending radius: 12 x cable diameter
Temperature range: -40ºC to +85ºC
Conductor Structure: Stranded EN 60288.5
Approvals: ISO 4141 and DIN / ISO 6722ADR / GGVS
Technical properties
- Number of cores:
- 2 ., 9 ., 3 ., 5 ., 15 ., 4 ., 7 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyurethane (PUR)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- No
- Permitted cable outer temperature after assembling without vibration:
- -30-85 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 85 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 60 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Double insulated
- Colour:
- Black
- Operating temperature:
- -40-80 °C
- Core colour:
- Several
- Conductor surface:
- Bare
- Packaging:
- Ring
- Min. permitted bending radius, stationary application/permanent installation:
- 66.56 mm, 134.16 mm, 85.28 mm, 118.56 mm, 170.56 mm, 93.6 mm, 124.8 mm, 101.92 mm, 120.64 mm, 112.32 mm, 54.08 mm
Show more
Item List
- Total: 15
- Total: 15
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Color code ISO 4141-3_ADR cable
Dimensions
- Total: 15
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Diameter conductor | Nominal cross section pilot/reduced core | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ADR, 2x1.0mm2,BLACK DRUM,60V,PUR/PVC/PVC, 85C | 1 mm² | 500 . | 5.2 mm | 54.08 mm | 2.1 mm | m |
Yes
|
|
|
||
| ADR, 2x1.0mm2,BLACK SPOOL 100 M,60V,PUR/PVC/PVC, 85C | 1 mm² | 100 . | 5.2 mm | 54.08 mm | 2.1 mm | m |
Yes
|
|
|
||
| ADR, 2x1.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | 1.5 mm² | 100 . | 6.4 mm | 66.56 mm | 2.6 mm | m | 60 V |
Yes
|
|
|
|
| ADR, 3x1.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | 1.5 mm² | 100 . | 8.2 mm | 85.28 mm | 2.6 mm | m | 60 V |
Yes
|
|
|
|
| ADR, 3x1.5mm2 + 2x2.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | 1.5 mm² | 50 . | 11.4 mm | 118.56 mm | 1.5 mm | 2.5 mm² | m | 60 V |
Yes
|
|
|
| ADR, 4x1.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | 1.5 mm² | 100 . | 9 mm | 93.6 mm | 2.6 mm | m | 60 V |
Yes
|
|
|
|
| ADR, 3x1.5mm2 + 2x4mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | 1.5 mm² | 50 . | 12 mm | 124.8 mm | 1.5 mm | 4 mm² | m | 60 V |
Yes
|
|
|
| ADR, 4x1.5mm2 +1x2.5mm2 + 2x4mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | 1.5 mm² | 50 . | 12 mm | 124.8 mm | 2.6 mm | m |
Yes
|
|
|
||
| ADR, 5x1.5mm2, BLACK BOBIN, 60V, PUR/PVC/PVC, 85C | 1.5 mm² | 50 . | 9.8 mm | 101.92 mm | 2.6 mm | m | 60 V |
Yes
|
|
|
|
| ADR, 5x1.5mm2 + 2x4mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | 1.5 mm² | 50 . | 12 mm | 124.8 mm | 1.5 mm | 4 mm² | m | 60 V |
Yes
|
|
|
| ADR, 5x1.5mm2 +2x6mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | 1.5 mm² | 100 . | 11.6 mm | 120.64 mm | 1.5 mm | 6 mm² | m | 60 V |
Yes
|
|
|
| ADR, 7x1.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | 1.5 mm² | 50 . | 10.8 mm | 112.32 mm | 2.6 mm | m | 60 V |
Yes
|
|
|
|
| ADR, 8x1.5mm2 +1x2.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | 1.5 mm² | 50 . | 12.9 mm | 134.16 mm | 1.5 mm | 2.5 mm² | m | 60 V |
Yes
|
|
|
| ADR, 11x1.5mm2 + 4x2.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | 1.5 mm² | 50 . | 16.4 mm | 170.56 mm | 1.5 mm | 2.5 mm² | m | 60 V |
Yes
|
|
|
| ADR, 12x1.5mm2 + 3x2.5mm2, BLACK SPOOL, 60V, PUR/PVC/PVC, 85C | 1.5 mm² | 50 . | 16 mm | 170.56 mm | 2.6 mm | m |
Yes
|
|
|
- Total: 15
Similar Options
Approvals
- Total: 15
| Product Description | Approved according to DIN 72570 | Reaction-to-fire class according to EN 13501-6 | Smoke development class according to EN 13501-6 | Euro class flaming droplets/particles according to EN 13501-6 | Euro class acidity according to EN 13501-6 | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant (according to EN 60811-404) | Flame retardant | Approved according to CE | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ADR, 2x1.0mm2,BLACK DRUM,60V,PUR/PVC/PVC, 85C | N/A | N/A | N/A | N/A | No | No | No | No | No |
|
Yes
|
|
|
|
| ADR, 2x1.0mm2,BLACK SPOOL 100 M,60V,PUR/PVC/PVC, 85C | N/A | N/A | N/A | N/A | No | No | No | No | No |
|
Yes
|
|
|
|
| ADR, 2x1.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | No |
|
Yes
|
|
|
| ADR, 3x1.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | No |
|
Yes
|
|
|
| ADR, 3x1.5mm2 + 2x2.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | No |
|
Yes
|
|
|
| ADR, 4x1.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | No |
|
Yes
|
|
|
| ADR, 3x1.5mm2 + 2x4mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | No |
|
Yes
|
|
|
| ADR, 4x1.5mm2 +1x2.5mm2 + 2x4mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | N/A | N/A | N/A | N/A | No | No | No | No | No |
Yes
|
|
|
||
| ADR, 5x1.5mm2, BLACK BOBIN, 60V, PUR/PVC/PVC, 85C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | No |
|
Yes
|
|
|
| ADR, 5x1.5mm2 + 2x4mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | No |
|
Yes
|
|
|
| ADR, 5x1.5mm2 +2x6mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | No |
|
Yes
|
|
|
| ADR, 7x1.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | No |
|
Yes
|
|
|
| ADR, 8x1.5mm2 +1x2.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | No |
|
Yes
|
|
|
| ADR, 11x1.5mm2 + 4x2.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | Yes | N/A | N/A | N/A | N/A | No | No | No | No | No |
|
Yes
|
|
|
| ADR, 12x1.5mm2 + 3x2.5mm2, BLACK SPOOL, 60V, PUR/PVC/PVC, 85C | N/A | N/A | N/A | N/A | No | No | No | No | No |
Yes
|
|
|
- Total: 15
Technical Properties
- Total: 15
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Flame retardant | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Single insulated/Double insulated | Colour | Operating temperature | Core colour | Conductor surface | Packaging | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ADR, 2x1.0mm2,BLACK DRUM,60V,PUR/PVC/PVC, 85C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyurethane (PUR) | Other | Other | No | -30-85 °C | Copper | No | 85 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Double insulated | Several | Bare | 54.08 mm |
Yes
|
|
|
||||
| ADR, 2x1.0mm2,BLACK SPOOL 100 M,60V,PUR/PVC/PVC, 85C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyurethane (PUR) | Other | Other | No | -30-85 °C | Copper | No | 85 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Double insulated | Several | Bare | 54.08 mm |
Yes
|
|
|
||||
| ADR, 2x1.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | 2 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyurethane (PUR) | Other | Other | No | -30-85 °C | Copper | No | 85 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -40-80 °C | Several | Bare | Ring | 66.56 mm |
Yes
|
|
|
| ADR, 3x1.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | 3 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyurethane (PUR) | Other | Other | No | -30-85 °C | Copper | No | 85 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -40-80 °C | Several | Bare | Ring | 85.28 mm |
Yes
|
|
|
| ADR, 3x1.5mm2 + 2x2.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | 5 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyurethane (PUR) | Other | Other | No | -30-85 °C | Copper | No | 85 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -40-85 °C | Several | Bare | Ring | 118.56 mm |
Yes
|
|
|
| ADR, 4x1.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyurethane (PUR) | Other | Other | No | -30-85 °C | Copper | No | 85 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -40-85 °C | Several | Bare | Ring | 93.6 mm |
Yes
|
|
|
| ADR, 3x1.5mm2 + 2x4mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | 5 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyurethane (PUR) | Other | Other | No | -30-85 °C | Copper | No | 85 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -40-85 °C | Several | Bare | Ring | 124.8 mm |
Yes
|
|
|
| ADR, 4x1.5mm2 +1x2.5mm2 + 2x4mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | Polyvinyl chloride (PVC) | Other | Colour | No | Polyurethane (PUR) | Other | Other | No | -30-85 °C | Copper | No | 85 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Bare | 124.8 mm |
Yes
|
|
|
||||||
| ADR, 5x1.5mm2, BLACK BOBIN, 60V, PUR/PVC/PVC, 85C | 5 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyurethane (PUR) | Other | Other | No | -30-85 °C | Copper | No | 85 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -40-85 °C | Several | Bare | Ring | 101.92 mm |
Yes
|
|
|
| ADR, 5x1.5mm2 + 2x4mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | 7 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyurethane (PUR) | Other | Other | No | -30-85 °C | Copper | No | 85 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -40-85 °C | Several | Bare | Ring | 124.8 mm |
Yes
|
|
|
| ADR, 5x1.5mm2 +2x6mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | 7 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyurethane (PUR) | Other | Other | No | -30-85 °C | Copper | No | 85 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -40-85 °C | Several | Bare | Ring | 120.64 mm |
Yes
|
|
|
| ADR, 7x1.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | 7 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyurethane (PUR) | Other | Other | No | -30-85 °C | Copper | No | 85 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -40-85 °C | Several | Bare | Ring | 112.32 mm |
Yes
|
|
|
| ADR, 8x1.5mm2 +1x2.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | 9 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyurethane (PUR) | Other | Other | No | -30-85 °C | Copper | No | 85 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -40-85 °C | Several | Bare | Ring | 134.16 mm |
Yes
|
|
|
| ADR, 11x1.5mm2 + 4x2.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | 15 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyurethane (PUR) | Other | Other | No | -30-85 °C | Copper | No | 85 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -40-85 °C | Several | Bare | Ring | 170.56 mm |
Yes
|
|
|
| ADR, 12x1.5mm2 + 3x2.5mm2, BLACK SPOOL, 60V, PUR/PVC/PVC, 85C | Polyvinyl chloride (PVC) | Other | Colour | No | Polyurethane (PUR) | Other | Other | No | -30-85 °C | Copper | No | 85 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Bare | 170.56 mm |
Yes
|
|
|
- Total: 15
Other information
- Total: 15
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| ADR, 2x1.0mm2,BLACK DRUM,60V,PUR/PVC/PVC, 85C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - ADR | ADR, 2X1.0MM2,SVART FÄRG LEDARE:BLÅ,BRUN | 0502001-500 |
Yes
|
|
|
| ADR, 2x1.0mm2,BLACK SPOOL 100 M,60V,PUR/PVC/PVC, 85C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - ADR | ADR, 2X1.0MM2,SVART FÄRG LEDARE:BLÅ,BRUN | 0502001-100 |
Yes
|
|
|
| ADR, 2x1.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - ADR | ADR, 2X1.5MM2, SVART FÄRGKOD:VIT,BRUN | 0501001 |
Yes
|
|
|
| ADR, 3x1.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - ADR | ADR, 3X1.5MM2, SVART FÄRGKOD:SVART,BRUN,BLÅ | 0501002 |
Yes
|
|
|
| ADR, 3x1.5mm2 + 2x2.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - ADR | 05010021 |
Yes
|
|
|
|
| ADR, 4x1.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - ADR | ADR, 4X1.5MM2, SVART FÄRGKOD:VIT,SVART,RÖD,BRUN, | 0501003 |
Yes
|
|
|
| ADR, 3x1.5mm2 + 2x4mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - ADR | ADR, 3X1.5MM2 + 2X4MM2, SVART | 05010031 |
Yes
|
|
|
| ADR, 4x1.5mm2 +1x2.5mm2 + 2x4mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - ADR | ADR, 4X1.5MM2 +1X2.5MM2 + 2X4MM2, SVART | 05010030 |
Yes
|
|
|
| ADR, 5x1.5mm2, BLACK BOBIN, 60V, PUR/PVC/PVC, 85C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - ADR | ADR, 5X1.5MM2, SVART FÄRGKOD:VIT,BRUN,GRÖN,RÖD,GRÅ | 0501004 |
Yes
|
|
|
| ADR, 5x1.5mm2 + 2x4mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - ADR | ADR, 5X1.5MM2 + 2X4MM2, SVART | 05010032 |
Yes
|
|
|
| ADR, 5x1.5mm2 +2x6mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - ADR | ADR, 5X1.5MM2 +2X6MM2, SVART | 05010042 |
Yes
|
|
|
| ADR, 7x1.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - ADR | ADR, 7X1.5MM2, SVART FÄRGK:VI,SV,GU,RÖ,GRÖ,BR,BL, | 0501006 |
Yes
|
|
|
| ADR, 8x1.5mm2 +1x2.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - ADR | 05010011 |
Yes
|
|
|
|
| ADR, 11x1.5mm2 + 4x2.5mm2, BLACK COIL, 60V, PUR/PVC/PVC, 85C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - ADR | ADR, 11X1.5MM2 + 4X2.5MM2, SVART | 05010023 |
Yes
|
|
|
| ADR, 12x1.5mm2 + 3x2.5mm2, BLACK SPOOL, 60V, PUR/PVC/PVC, 85C | EC003248 - Power cable < 1 kV, for permanent installation | 7.0 |
|
Cable - ADR | ADR, 12X1.5MM2 + 3X2.5MM2, SVART | 05010024 |
Yes
|
|
|
- Total: 15
