Blidplattor för Integro Flow/Pure/Classic i olika färger.

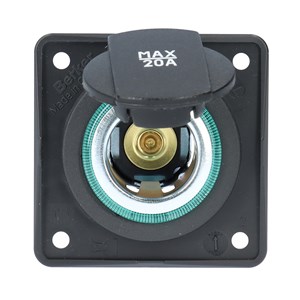

Eluttag av typ Cigg-plugg 12-24 VDC med tryck 20 A för motorfordon. Max strömuttag: 20A med 2.5 mm² och max 15A med 1.5 mm² kabel. Flatsiftanslutning: 6.3 x 0.8 mm Mått: 55.5 mm x 55.5 mm Installationsdjup exklusive kabelanslutning: 46 mm

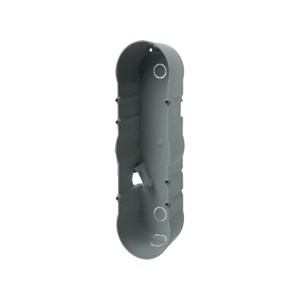

Wall box 3-way Gray box for switches and sockets in Berkers systems Integro. Available in versions with 1, 2 and without strain relief. Different designs for vertical and horizontal mounting. Non-flammable according to VDE 0606-1

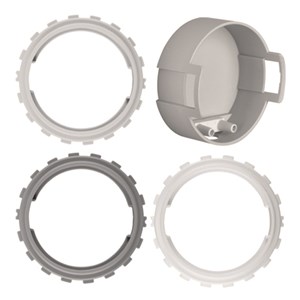

Fastening ring and Wall box Ø58 mm 35mm deep Gray box for switches and sockets in Berkers systems Integro. Available in versions with and without strain relief. Suitable for fastening ring: 17140818xx Non-flammable according to VDE 0606-1

Power socket outlet 6-24 VDC Ratet current: Max 20A with 2.5mm² and max 15A with 1.5mm² cable. Flat connector size 6.3 x 0.8mm Size: 55.5mm x 55.5mm Installation depth without cable lug: 46mm Compliant with: SAE J563 (Feb. 2009), VW standard TL82285 (Apr. 2007)

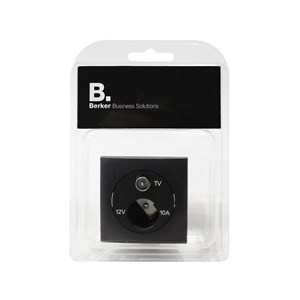

Power socket outlet 12V + TV socket outlet12VDC, Max 10A Flat connector With IEC jack (male) Connection in F system on the rear. Size: 55.5mm x 55.5mm Installation depth without cable lug: 28mm

HDMI-socket outlet Resolution: max 1920 x 1080 px Transmission rate: max 8,16 GBit/s Video bandwidth: max 165MHz Frequency range (vertical): 50-85Hz With HDMI™ double jack type A, supports HDMI technology (V 1.3 with Deep Color) Contacts: 19 pole, gold plated Size: 55.5 mm x 55.5 mm

USB charging socket outlet Input voltage: 8-34V Output voltage: 2x2,5A, 5V Installation depth: 32mm. Power consumption, stand by: <100mW This item is delivered in retail package with bar code.

USB charging socket outlet, type A Input voltage: 12V Output voltage: 3x1A, 5V Power consumption, stand by: <100mW Size: 55.5 mm x 55.5 mm Installation depth: 32 mm

Input voltage: 8 – 34 VDC Out voltage: 5V DC (+- 5%). Max Current: 3.6A Power in stand-by: <100mW Measures: 55.5 mm x 55.5 mm Installation depth: 32 mm Pre-wired with 15cm red/black cable.

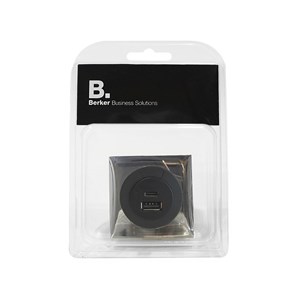

The Berker USB charging station features both USB-A and USB-C ports, enabling you to charge two devices simultaneously with a total power output of up to 3 A. Input voltage: 230 VAC Frequency: 50/60 Hz Out voltage: 5 V DC (+- 5%). Max Current: 3 A Power in stand-by: <100 mW Measures: 55.5 mm x 55.5 mm Installation depth: 31 mm

Matning: 8 – 34 VDC Utspänning 5V DC (+- 5%). Max ström 3.6A Förbrukning i Stand-By läge: <100mW Mått: 55.5 mm x 55.5 mm Installationsdjup: 32 mm Förmonterad med röd/svart kabel 15 cm.

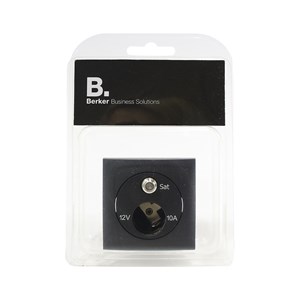

Power socket outlet 12V + SAT socket outlet12VDC, Max 10A Flat connector Double F-sockets Installation depht without cable lug: 28mm This item is delivered in retail package with bar code.

HDMI-socket outlet Resolution: max 1920 x 1080 px Transmission rate: max 8,16 GBit/s Video bandwidth: max 165MHz Frequency range (vertical): 50-85Hz With HDMI & trade; double jack type A, supports HDMI technology (V 1.3 with Deep Color) Contacts: 19 pole, gold plated This item is delivered in retail package with bar code.

USB charging socket outlet Input voltage: 8-34V Output voltage: 2x2,5A, 5V Power consumption, stand by: <100mW Size: 55.5 mm x 55.5 mm Installation depth: 32 mm

For vertical and horizontal mounting.

For vertical and horizontal mounting.

For vertical and horizontal mounting. Size: 59.5 mm x178.5 mm

For vertical and horizontal mounting. Size: 59.5 mm x 119 mm

Size: 59.5 mm x 59.5 mm

Frame TWIN 1, 2, 3-gang frame

On/Off Rocker Switch 1-pole 16 A, 250 VAC Size: 55.5 mm x 55.5 mm Screw terminals
