Spänningsprovare, 12-690 V AC/DC

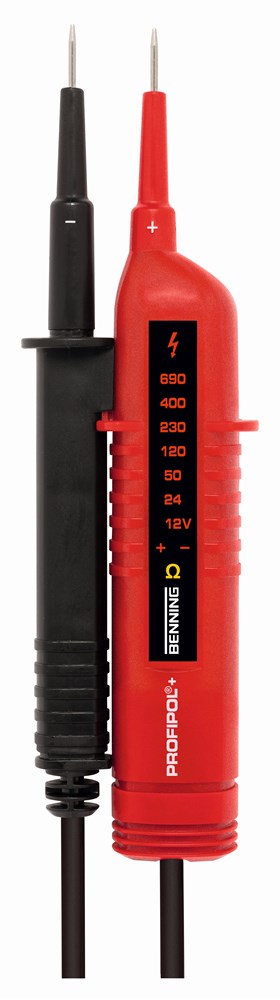

Voltage Tester and Continuity Tester PROFIPOL®+, with impact-proof and robust housing.
Voltage: 12 V - 690 V AC/ DC (LED)
Display stages: 12, 24, 50, 120, 230, 400, 690 V AC / DC (voltage display even in case of empty batteries)
Acoustic and optical continuity test up to 100 kΩ (buzzer / yellow Ω-LED)
Single-pole external conductor test (phase) (red LED)
Polarity indication (+ /- LED)
Non-contact phase tester/ detector of cable breaks (yellow LED)
Detent pin for one-hand operations e.g. for voltage test in sockets and safe storage of the voltage tester.
Protection: IP 54 (dust/splash proof). Built and approved acc. to IEC / EN 61243-3:2015. Over voltage category CAT III 600 V, CAT II 690 V.
Incl. 2 x 1.5 V micro batteries (LR03 / AAA)
Technical properties
- Measuring circuit category:
- CAT III
- Type of test:
- 2-pole
- Voltage indication:
- LED
- Voltage measuring range:
- 12-690 V
- Load switchable:
- No
- Indication of direction of field rotation:
- No
- Continuity indication:
- Optic/acoustic
- Single pole phase indication:
- Yes
- Contact less voltage detection:
- No
- Data hold:
- No
- Background lighting LC-indication:
- No
- Test prod protection:
- No
- Measuring point lightning:
- No
- Continuity test:
- Yes
- Current supply:
- With and without battery
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|
| SPÄNNINGSPROVARE, 12-690 V AC/DC | 1 . | pcs |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
Technical Properties
- Total: 1
| Product Description | Measuring circuit category | Type of test | Voltage indication | Voltage measuring range | Load switchable | Indication of direction of field rotation | Continuity indication | Single pole phase indication | Contact less voltage detection | Data hold | Background lighting LC-indication | Test prod protection | Measuring point lightning | Continuity test | Current supply | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPÄNNINGSPROVARE, 12-690 V AC/DC | CAT III | 2-pole | LED | 12-690 V | No | No | Optic/acoustic | Yes | No | No | No | No | No | Yes | With and without battery |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| SPÄNNINGSPROVARE, 12-690 V AC/DC | EC000494 - Voltage tester | 9.0 |
|
Test tools | PROFIPOLPLUS |
Yes
|
|
|
- Total: 1
