LEDNINGSPROVARE DUTEST PRO

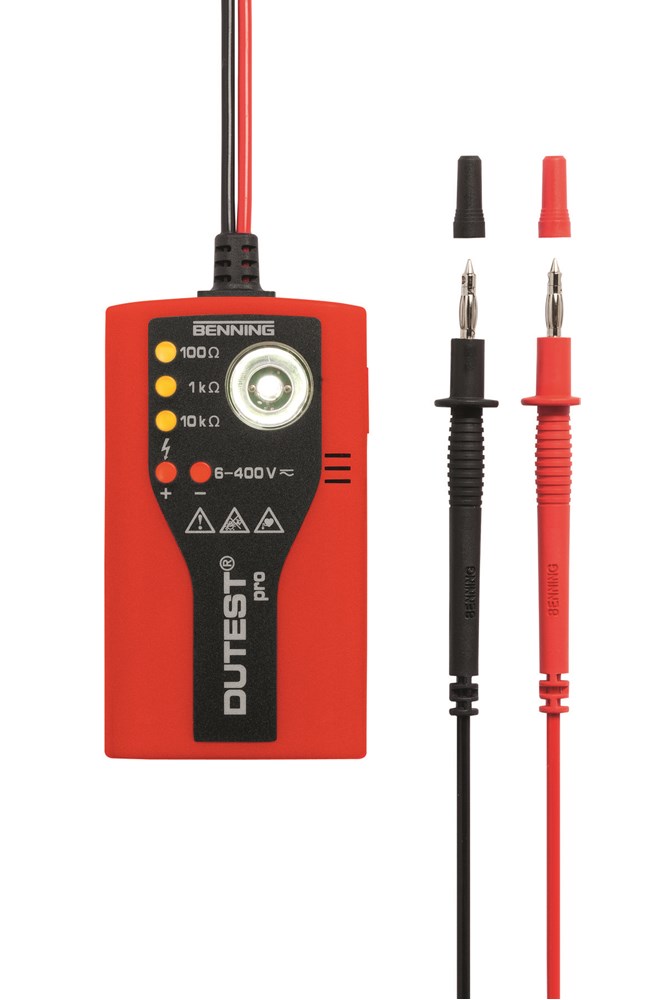

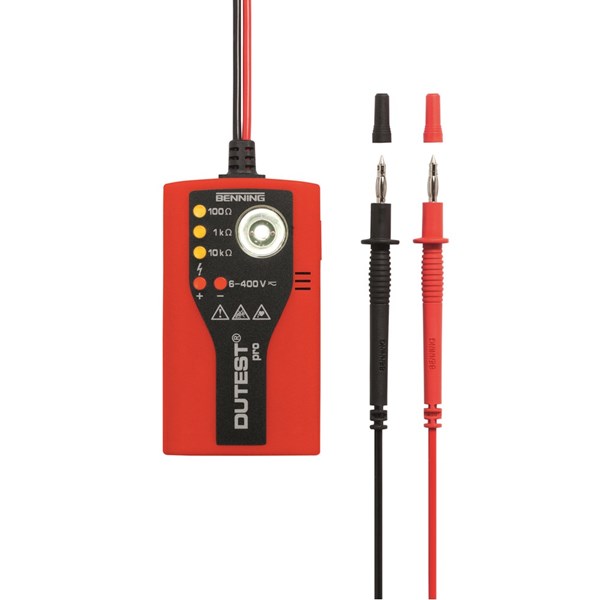

Continuity and Circuit Tester DUTEST® pro
For testing of high-and low-resistance
the result of the continuity test and diode test is shown via LED and buzzer
optical indicator of resistance by 3 LED’s: 0 - 100 Ω/1 kΩ/ 10 kΩ
acoustic indication via testing buzzer up to approx. 100 Ω
external-voltage indication: 6 V - 400 V
polarity indication
single-pole external conductor test (phase)
non-contact cable break detector
pinpointed high luminous power LED torch
buzzer and LED power are individual adjustable in 4 steps
rear of the unit with magnet and belt clip
measurement category: CAT lll 300 V
Technical properties
- Measuring circuit category:
- CAT III
- Type of test:
- 2-pole
- Voltage indication:
- LED
- Voltage measuring range:
- 6-400 V
- Indication of direction of field rotation:
- No
- Resistance measurement:
- 0-100 Ohm
- Single pole phase indication:
- Yes
- Contact less voltage detection:
- Yes
- Background lighting LC-indication:
- No
- Test prod protection:
- Yes
- Measuring point lightning:
- No
- Continuity test:
- No
- Current supply:
- Battery
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|
| LEDNINGSPROVARE MED LED OCH SUMMER, SPÄNNINGSSÄKER UPP TILL 400VAC/VDC | 1 . | pcs |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Availability | ||
|---|---|---|---|
| LEDNINGSPROVARE MED LED OCH SUMMER, SPÄNNINGSSÄKER UPP TILL 400VAC/VDC |
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Measuring circuit category | Type of test | Voltage indication | Voltage measuring range | Indication of direction of field rotation | Resistance measurement | Single pole phase indication | Contact less voltage detection | Background lighting LC-indication | Test prod protection | Measuring point lightning | Continuity test | Current supply | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LEDNINGSPROVARE MED LED OCH SUMMER, SPÄNNINGSSÄKER UPP TILL 400VAC/VDC | CAT III | 2-pole | LED | 6-400 V | No | 0-100 Ohm | Yes | Yes | No | Yes | No | No | Battery |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| LEDNINGSPROVARE MED LED OCH SUMMER, SPÄNNINGSSÄKER UPP TILL 400VAC/VDC | EC000494 - Voltage tester | 9.0 |
|
Test tools | LEDNINGSPROVARE MED LED OCH SUMMER | DUTESTPRO |
Yes
|
|
|
