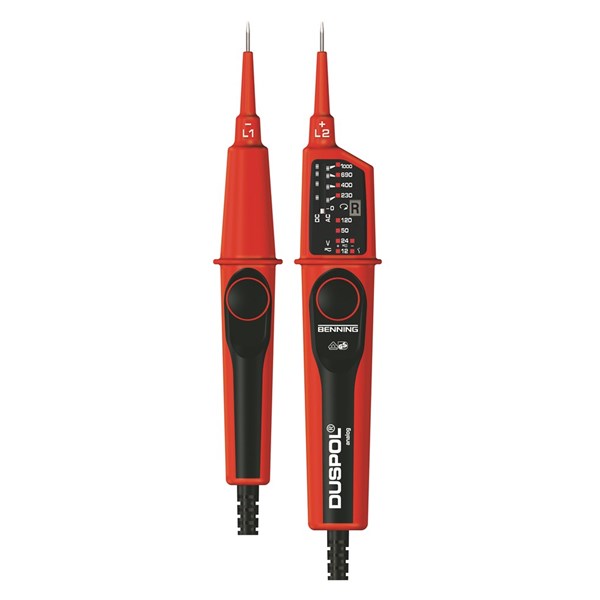

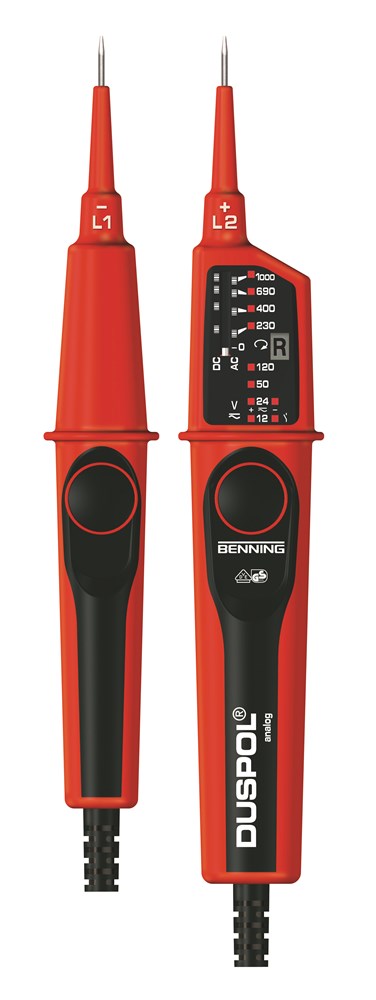

DUSPOL ANALOG
DUSPOL ANALOG
Analog spänningsprovare med fasföljdsvisning och lastinkoppling. Indikering av lik- och växelspänning med LED samt steglöst genom en dykspolevisare.
Indikeringssteg: 12, 24, 50, 120, 230, 400, 690, 1000 V
Fasföljdsvisning och fasprovning på LCD, polaritetsindikering på LED.
Mäter likspänning från 12-750 V och växelspänning från 12-690 V.
Temperaturområde: -10° C till +55° C
Skyddsklass: IP64
Godkännanden: IEC/EN 61243-3 (DIN VDE 0682-401)
Technical properties
- Measuring circuit category:
- CAT III
- Type of test:
- 2-pole
- Voltage indication:
- LED/LCD
- Voltage measuring range:
- 12-100 V
- Indication of direction of field rotation:
- Yes
- Single pole phase indication:
- Yes
- Contact less voltage detection:
- No
- Background lighting LC-indication:
- Yes
- Test prod protection:
- Yes
- Measuring point lightning:
- No
- Continuity test:
- No
- Current supply:
- From test object (without battery)
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|
| SPÄNNINGSPROVARE, MÄTER 12-1000 V AC/DC | 1 . | pcs |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
Technical Properties
- Total: 1
| Product Description | Measuring circuit category | Type of test | Voltage indication | Voltage measuring range | Indication of direction of field rotation | Single pole phase indication | Contact less voltage detection | Background lighting LC-indication | Test prod protection | Measuring point lightning | Continuity test | Current supply | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPÄNNINGSPROVARE, MÄTER 12-1000 V AC/DC | CAT III | 2-pole | LED/LCD | 12-100 V | Yes | Yes | No | Yes | Yes | No | No | From test object (without battery) |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| SPÄNNINGSPROVARE, MÄTER 12-1000 V AC/DC | EC000494 - Voltage tester | 9.0 |
|
Test tools | DUSPOLANALOG |
Yes
|
|
|
- Total: 1
