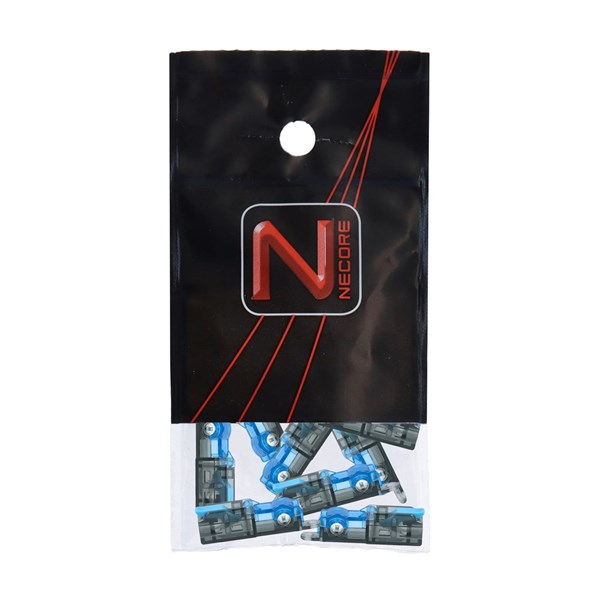

Splicing connectors for tap wires - Consumer pack
Splicing connector for 1 or 2 tap wires from a run through cable. The run through cable is connected with Insulation Displacement Connection (IDC).
Tap wires are connected with lever.
Transparent cover for easy inspection of connector. No tool needed. Solid conductors can be connected when closed.
Stripping range: 10 mm
Contact resistance: ≤0. 015 Ω
Insulation resistance: ≥1000 MΩ
Material
Contact: Copper
Plastic parts: Polycarbonate (PC)
Spring: Stainless steel
Boundary wire for robotic lawn mowers
Technical properties
Show more
Item List
- Total: 4
- Total: 4
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 4
| Product Description | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|
| AVGRENINGSKLÄMMA IDC för KABEL 1.0-1.5mm2, 1xAVGRENING 0.5-2.5mm2(4mm2 Solid), 10ST/FRP | 10 . | pck |
No
|
|
|
| AVGRENINGSKLÄMMA IDC för KABEL 0.5-1.0mm2, 1xAVGRENING 0.5-2.5mm2(4mm2 Solid), 10ST/FRP | 10 . | pck |
No
|
|
|
| AVGRENINGSKLÄMMA IDC för KABEL 1.0-1.5mm2, 2xAVGRENING 0.5-2.5mm2(4mm2 Solid), 10ST/FRP | 10 . | pck |
No
|
|
|
| AVGRENINGSKLÄMMA IDC för KABEL 0.5-1.0mm2, 2xAVGRENING 0.5-2.5mm2(4mm2 Solid), 10ST/FRP | 10 . | pck |
No
|
|
|
- Total: 4
Similar Options
Approvals
- Total: 4
- Total: 4
Technical Properties
- Total: 4
- Total: 4
Other information
- Total: 4
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| AVGRENINGSKLÄMMA IDC för KABEL 1.0-1.5mm2, 1xAVGRENING 0.5-2.5mm2(4mm2 Solid), 10ST/FRP | EC000446 - Screwless terminal | 9.0 |
|
Self stripping tap connectors | SKV2024ERIK2 | SCT-1B-PP10 |
No
|
|
|
| AVGRENINGSKLÄMMA IDC för KABEL 0.5-1.0mm2, 1xAVGRENING 0.5-2.5mm2(4mm2 Solid), 10ST/FRP | EC000446 - Screwless terminal | 9.0 |
|
Self stripping tap connectors | SKV2024ERIK2 | SCT-1R-PP10 |
No
|
|
|
| AVGRENINGSKLÄMMA IDC för KABEL 1.0-1.5mm2, 2xAVGRENING 0.5-2.5mm2(4mm2 Solid), 10ST/FRP | EC000446 - Screwless terminal | 9.0 |
|
Self stripping tap connectors | SKV2024ERIK2 | SCT-2B-PP10 |
No
|
|
|
| AVGRENINGSKLÄMMA IDC för KABEL 0.5-1.0mm2, 2xAVGRENING 0.5-2.5mm2(4mm2 Solid), 10ST/FRP | EC000446 - Screwless terminal | 9.0 |
|
Self stripping tap connectors | SKV2024ERIK2 | SCT-2R-PP10 |
No
|
|
|
