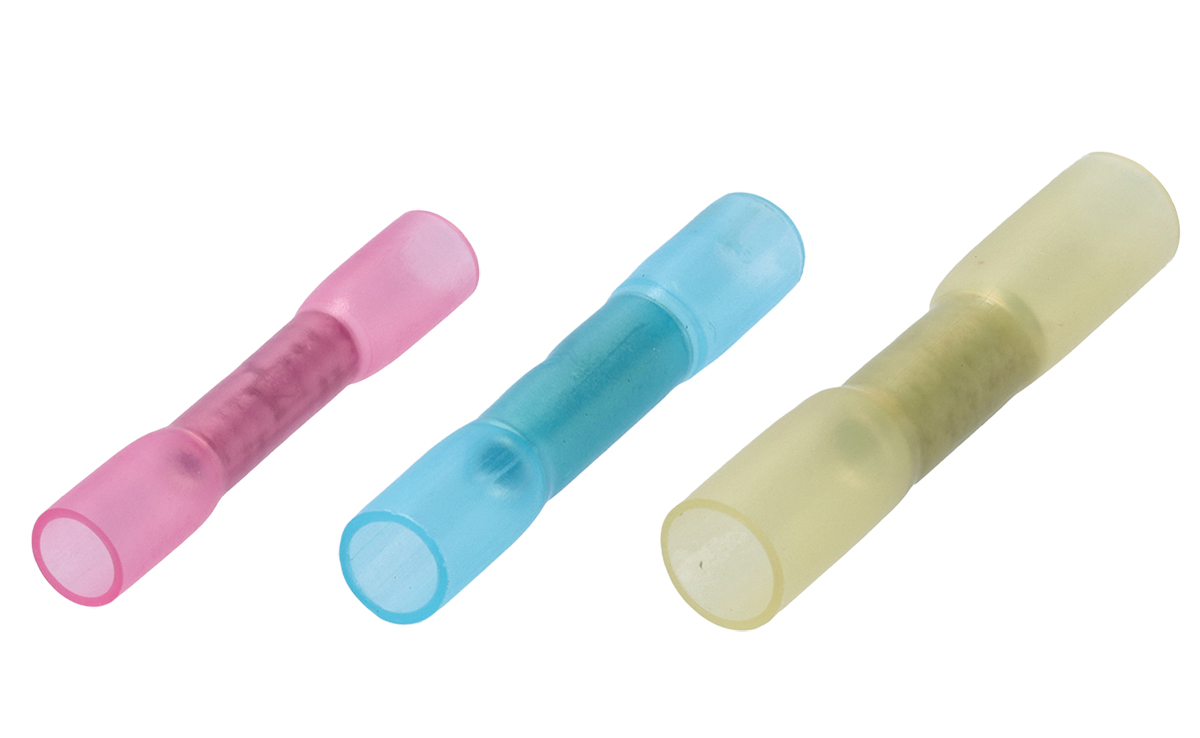

Heat Shrink Butt TS-series

Features
Protects splices from water, condensation, salt, and corrosion
Provides strain relief
Protects against vibration in rugged environments
Completely insulates and protects electrical connections
Has adhesive lining for protection that is more reliable than conventional splices

Applications
Automotive/truck wiring repair and maintenance.
Automotive accessory installations.
OEM automotive/truck/RV wire harness fabrication
Marine electronics.
Fleet maintenance.
Commercial wiring (pumps/pools/spas).

Insulation: Polyamid (PA) nylon with meltable adhesive
Shrink temperature: 120° C
Shrink ratio: 3:1
Halogen free

Show item list

Technical properties

Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Model:
Standard version
Max. current (Imax):
19 A, 27 A, 48 A
Number of branches:
0 N/A
Insulation:
Shrink insulation PE
Colour insulation:
Red, Blue, Yellow
Sleeve form:
Short
Suitable for solid cores:
Yes
Suitable for stranded conductors:
Yes
Suitable for fine strand conductors:
Yes
Suitable for high temperatures (to 650 °C):
No
Suitable for insulated varnish:
No
Suitable for round conductors:
Yes
Suitable for flat conductors:
No
For pull protected connections:
No
Voltage level:
Up to 600 V
Type of connection:
Other
Oil stop/centre bar:
No
Surface protection:
Tinned
Operating temperature:
-40-105 °C
Material:
Copper
Voltage max:
600V
Packaging:
Loose piece

Show more

  • Total: 3

TS 1525 SK

Availability:
Yes

TS 2527 SK

Availability:
Yes

TS 4652 SK

Availability:
Yes
  • Total: 3
  • Total: 3
Product Description Availability
SHRINK INSULATED BUTT SPLICE RED, 35mm
Yes
SHRINK INSULATED BUTT SPLICE BLUE, 35mm
Yes
SHRINK INSULATED BUTT SPLICE YELLOW, 42mm
Yes
  • Total: 3
  • Total: 3
Product Description Availability
SHRINK INSULATED BUTT SPLICE RED, 35mm
Yes
SHRINK INSULATED BUTT SPLICE BLUE, 35mm
Yes
SHRINK INSULATED BUTT SPLICE YELLOW, 42mm
Yes
  • Total: 3
  • Total: 3
Product Description Availability
SHRINK INSULATED BUTT SPLICE RED, 35mm
Yes
SHRINK INSULATED BUTT SPLICE BLUE, 35mm
Yes
SHRINK INSULATED BUTT SPLICE YELLOW, 42mm
Yes
  • Total: 3
  • Total: 3
Product Description Availability
SHRINK INSULATED BUTT SPLICE RED, 35mm
Yes
SHRINK INSULATED BUTT SPLICE BLUE, 35mm
Yes
SHRINK INSULATED BUTT SPLICE YELLOW, 42mm
Yes
  • Total: 3
