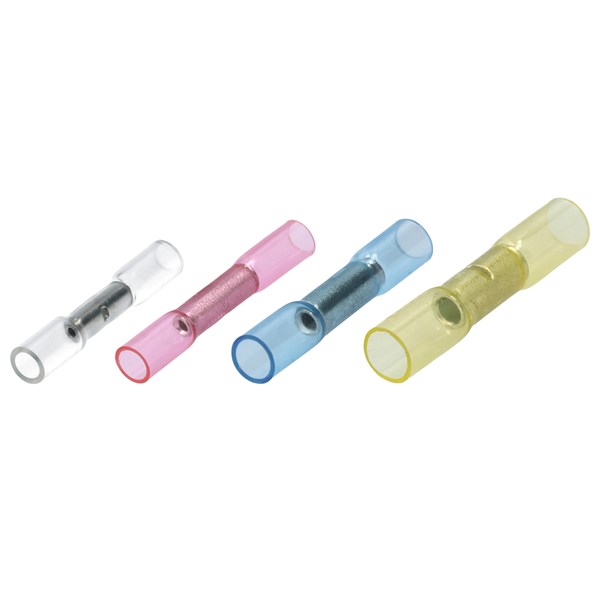

Shrink Splice Sleeves CS-series
Features
Protects splices from water, condensation, salt, and corrosion
Provides strain relief.
Protects against vibration in rugged environments.
Completely insulates and protects electrical connections
Has adhesive lining for protection that is more reliable than conventional splices
Applications
Automotive/truck wiring repair and maintenance.
Automotive accessory installations.
OEM automotive/truck/RV wire harness fabricationMarine electronics.
Fleet maintenance.
Commercial wiring (pumps/pools/spas).
Insulation: Polyethylene (PE) Ethylene Vinyl Acetate (EVAc)
Internal adhesive: PE-LD
Shrinkage temperature: 100 °C
Shrinkage rate: 3:1
Halogen-free
Transparent insulation, which means that visual inspection can be done after shrinkage.
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- UL model
- Number of branches:
- 0 N/A
- Insulation:
- Shrink insulation PE
- Colour insulation:
- Red, Blue, Yellow
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 600 V
- Type of connection:
- Other
- Oil stop/centre bar:
- No
- Surface protection:
- Tinned
- Operating temperature:
- -55-125 °C
- Material:
- Copper
- Voltage max:
- 600V
- Packaging:
- Loose piece
Show more
Item List
- Total: 4
- Total: 4
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_CS-Series
Dimensions
- Total: 4
| Product Description | ID1 | ID (recovered) | ID (expanded) | L | L1 | N | MOQ | Unit | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SHRINK INSULATED BUTT SPLICE TRANSPARENT, | 1.2 mm | 1 mm | 3.7-4 mm | 28.5-31 mm | 7.5-10.5 mm | 11.5-13.2 mm | 100 . | pcs | 0.1-0.5 mm² |
Yes
|
|
|
| SHRINK INSULATED BUTT SPLICE RED, 36mm | 1.6 mm | 1.4 mm | 4.3-4.6 mm | 34-37.5 mm | 8.5-11.5 mm | 14.5-15.2 mm | 100 . | pcs | 0.5-1.5 mm² |
Yes
|
|
|
| SHRINK INSULATED BUTT SPLICE BLUE, 36mm | 2.3 mm | 1.8 mm | 5-5.3 mm | 34-37.5 mm | 8.5-11.5 mm | 14.5-15.2 mm | 100 . | pcs | 1.5-2.5 mm² |
Yes
|
|
|
| SHRINK INSULATED BUTT SPLICE YELLOW, 40mm | 3.6 mm | 2.2 mm | 6.5-6.8 mm | 39-42.5 mm | 11-14 mm | 14.5-15.2 mm | 100 . | pcs | 4-6 mm² |
Yes
|
|
|
- Total: 4
Similar Options
Approvals
- Total: 4
| Product Description | Approved according to CE | Availability | ||
|---|---|---|---|---|
| SHRINK INSULATED BUTT SPLICE TRANSPARENT, |
|
Yes
|
|
|
| SHRINK INSULATED BUTT SPLICE RED, 36mm |
|
Yes
|
|
|
| SHRINK INSULATED BUTT SPLICE BLUE, 36mm |
|
Yes
|
|
|
| SHRINK INSULATED BUTT SPLICE YELLOW, 40mm |
|
Yes
|
|
|
- Total: 4
Technical Properties
- Total: 4
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Model | Number of branches | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | For pull protected connections | Voltage level | Type of connection | Oil stop/centre bar | Surface protection | Operating temperature | Material | Voltage max | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SHRINK INSULATED BUTT SPLICE TRANSPARENT, | Yes | Yes | UL model | 0 N/A | Shrink insulation PE | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 600 V | Other | No | Tinned | -55-125 °C | Copper | 600V | Loose piece |
Yes
|
|
|
|
| SHRINK INSULATED BUTT SPLICE RED, 36mm | Yes | Yes | UL model | 0 N/A | Shrink insulation PE | Red | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 600 V | Other | No | Tinned | -55-125 °C | Copper | 600V | Loose piece |
Yes
|
|
|
| SHRINK INSULATED BUTT SPLICE BLUE, 36mm | Yes | Yes | UL model | 0 N/A | Shrink insulation PE | Blue | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 600 V | Other | No | Tinned | -55-125 °C | Copper | 600V | Loose piece |
Yes
|
|
|
| SHRINK INSULATED BUTT SPLICE YELLOW, 40mm | Yes | Yes | UL model | 0 N/A | Shrink insulation PE | Yellow | Short | Yes | Yes | Yes | No | No | Yes | No | No | Up to 600 V | Other | No | Tinned | -55-125 °C | Copper | 600V | Loose piece |
Yes
|
|
|
- Total: 4
Other information
- Total: 4
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SHRINK INSULATED BUTT SPLICE TRANSPARENT, | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Heat-Shrink Sealable Crimp Splice | BUTT CONNECTOR ENR2023V | CS0824SK |
Yes
|
|
|
| SHRINK INSULATED BUTT SPLICE RED, 36mm | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Heat-Shrink Sealable Crimp Splice | ENR2023V, EFO2024V | CS1525SK |
Yes
|
|
|
| SHRINK INSULATED BUTT SPLICE BLUE, 36mm | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Heat-Shrink Sealable Crimp Splice | ENR2023V, EFO2024V | CS2527SK |
Yes
|
|
|
| SHRINK INSULATED BUTT SPLICE YELLOW, 40mm | EC001059 - Crimp splices for copper conductor | 9.0 |
|
Heat-Shrink Sealable Crimp Splice | ENR2023V, EFO2024V | CS4652SK |
Yes
|
|
|
- Total: 4
