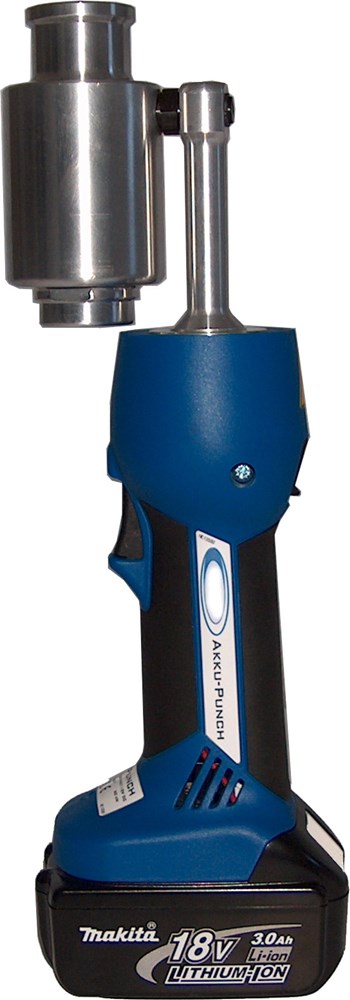

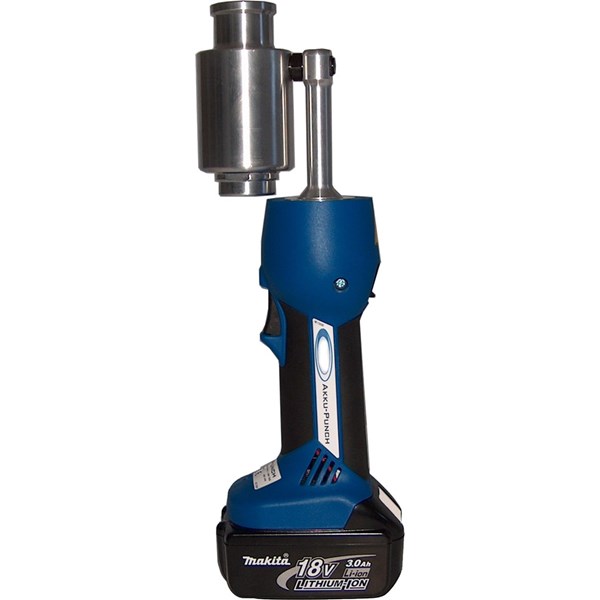

Akku-Punch

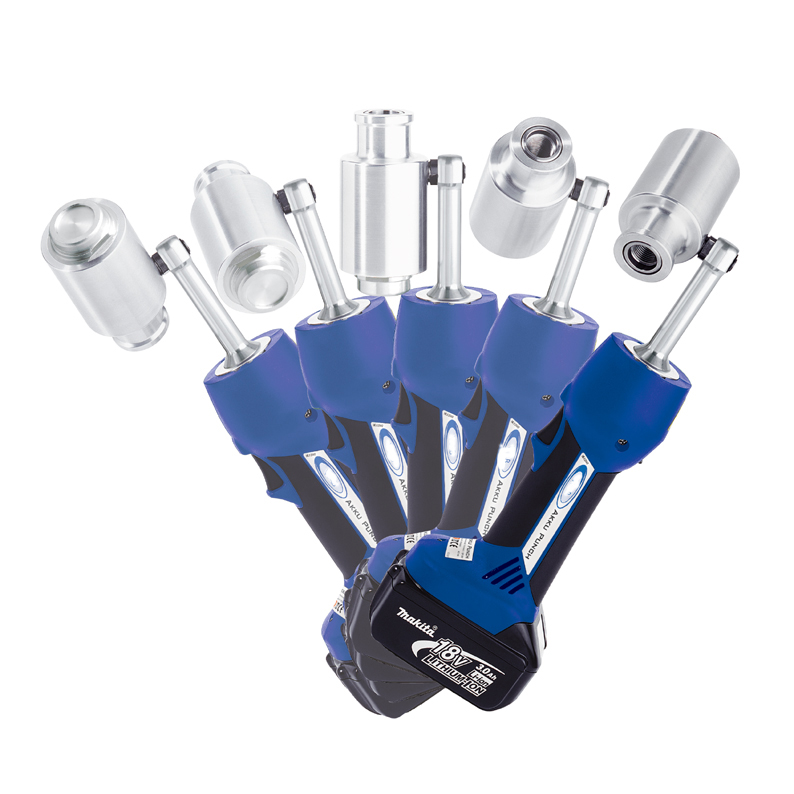

High-capacity Akku Hydraulic Punch Driver including lithium-ion battery. Hydraulic cylinder rotates for maximum flexibility. Easy handling and low weight of 2 kg enable fatigue-free punching.
When using AKKU PUNCH, the hydraulic cylinder will not be bottomed out and knockout punches will not be damaged. The punching process is monitored electronically. When the punching process is complete, AKKU PUNCH is switched off automatically.

Max. mild steel sheet thickness (punching capacities)
Round Punches up to 63.5 mm 3.0 mm
Round Punches up to 82.0 mm 2.5 mm
Square Punches up to 68.0 × 68.0 mm 3.0 mm
Square Punches up to 92.0 × 92.0 mm 2.5 mm
Rectangular Punches up to 46.0 × 92.0 mm 2.5 mm

Max. stainless steel sheet thickness (punching
capacities)
Round Punches up to 63.5 mm 2.5 mm
Square Punches up to 68.0 × 68.0 mm 1.5 mm
Rectangular Punches up to 46.0 × 92.0 mm 1.5 mm

Technical data:

Weight 2 kg
Punching capacity 60 KN
Battery voltage 18 V DC
Battery capacity 3 Ah
Battery charging time 22 min

Built-in lamp

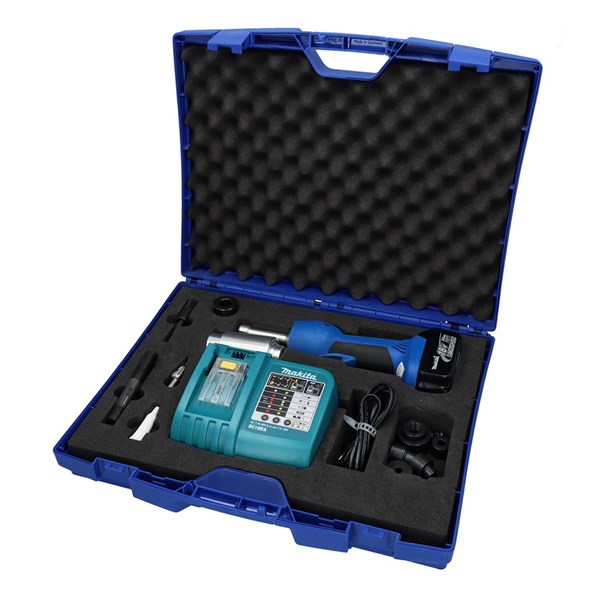

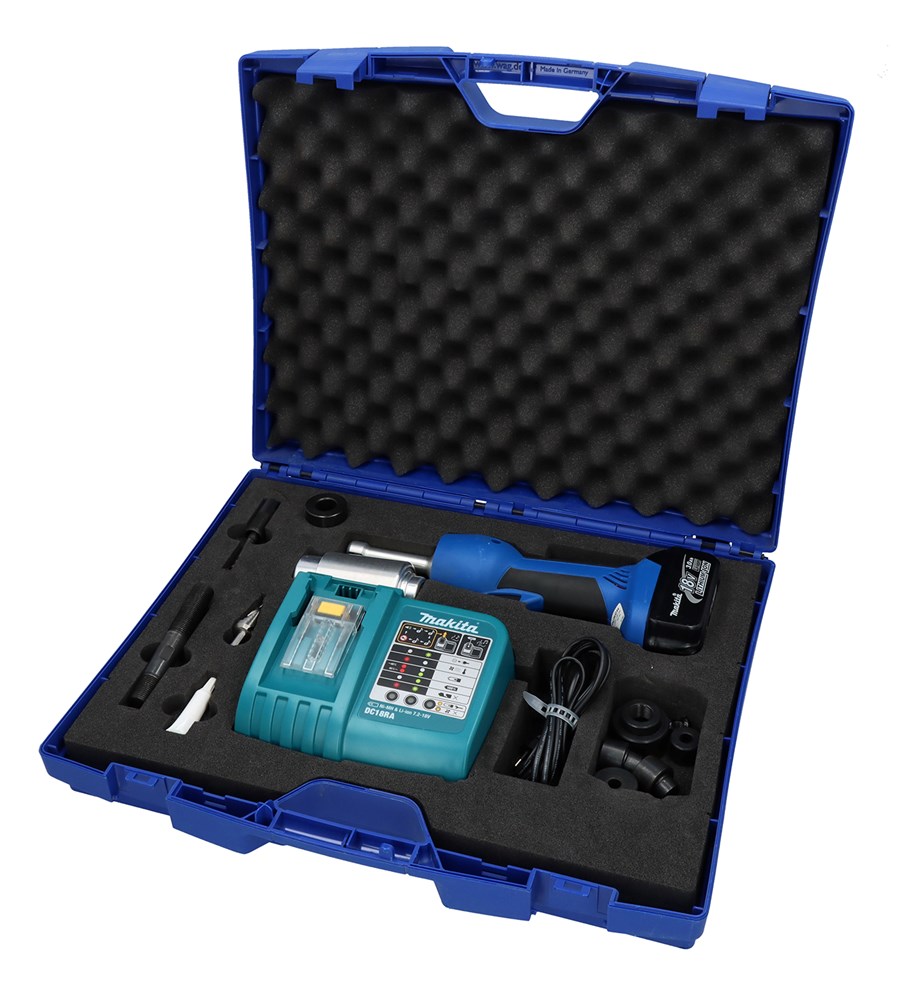

Supplied in plastic case including Knockout
Punch Set POWER SPLIT (Slug Splitting Knockout Punches, three point design, for mild steel).

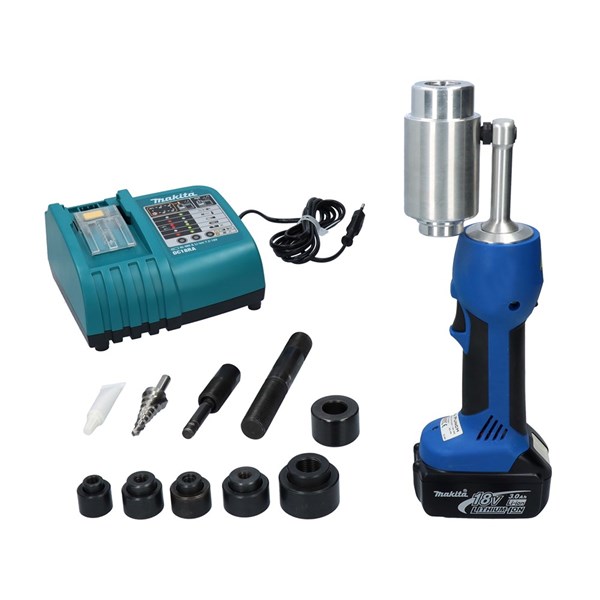

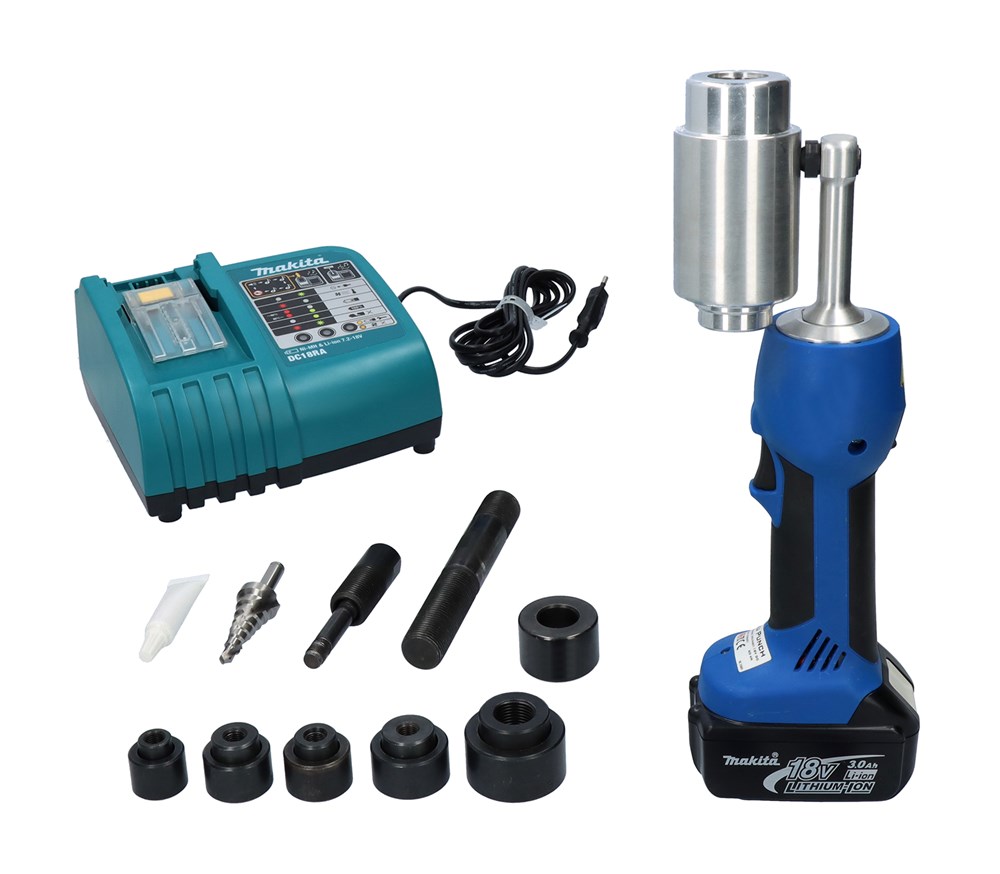

Scope of supply/delivery:
• 1 AKKU PUNCH Hydraulic Punch Driver
• 1 lithium-ion battery 18 V, 3 Ah
• 1 battery charger
• 1 draw stud 9.5 × 19.0 mm (3/8” × 3/4”) UNF
• 1 draw stud 19.0 × 125 mm (3/4” × 125 mm) UNF
• 1 spacer
• 1 tube lubricant
• 1 HSS-E Pilot Drill (Multi Step Drill)
• 1 each Knockout Punch M 16 – M 20 – M 25 – M 32 – PG 16
• 1 plastic case
