Ring terminals on reel, HAB ICTBX-series

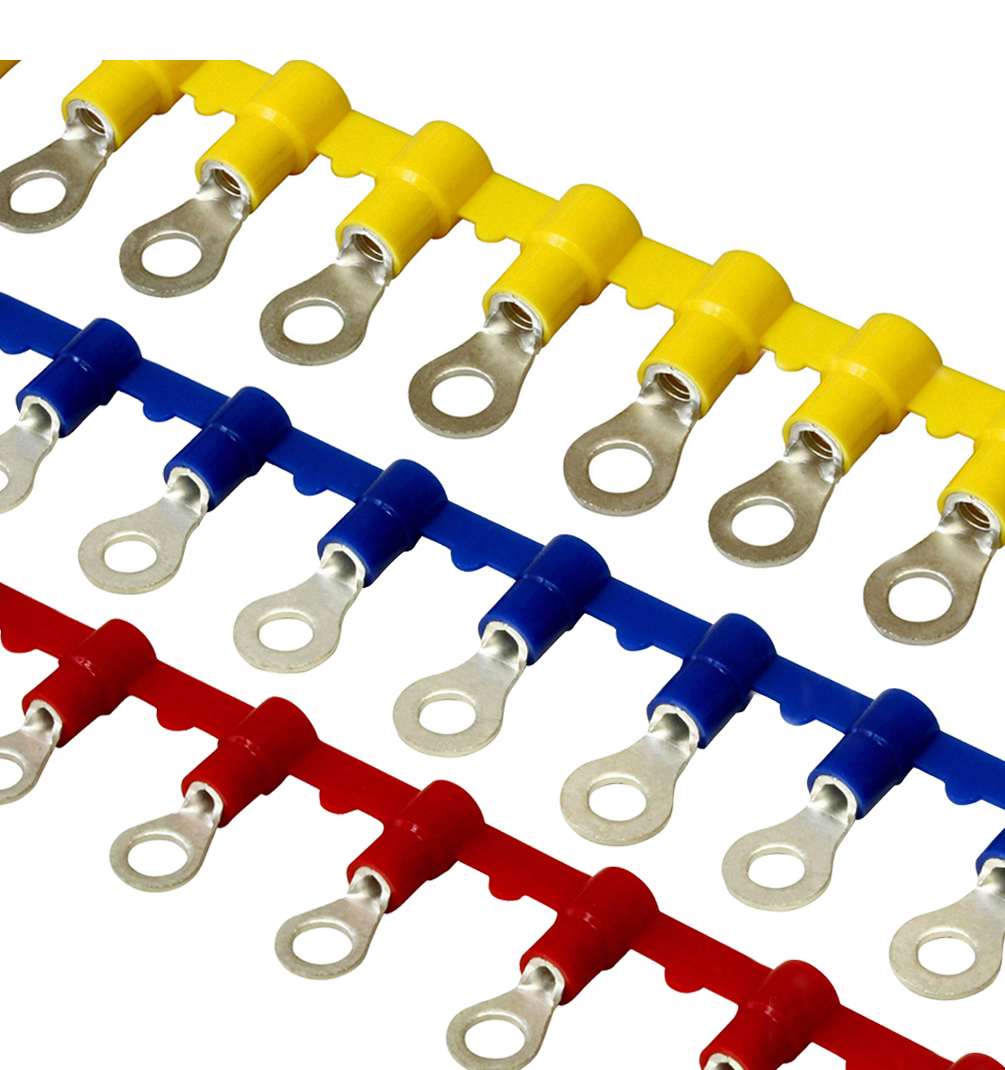

Insulated terminals on reel from Nichifu.
Brazed seam
Easy entry
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Max. current (Imax):
- 19 A, 27 A, 48 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Red, Blue, Yellow
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polycarbonate (PC)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-125 °C
- Material:
- Copper
- Voltage max:
- 600V
Show more
Item List
- Total: 11
- Total: 11
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 11
| Product Description | MOQ | Unit | Bolt dimension (metric) | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|
| INSULATED RING TERMINAL RED, M8, PC, REEL | 1500 . | pcs | 8 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M6, PC, REEL | 1500 . | pcs | 6 . | 0.5-1.65 mm² |
No
|
|
|
| INSULATED RING TERMINAL RED, M4, SLIM, PC, REEL | 1500 . | pcs | 4 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M4, PC, REEL | 1500 . | pcs | 4 . | 0.5-1.65 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M4, PC, REEL | 1500 . | pcs | 4 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M5, PC, REEL | 1500 . | pcs | 5 . | 1.04-2.63 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M6, PC, REEL | 1500 . | pcs | 6 . | 1.04-2.63 mm² |
No
|
|
|
| INSULATED RING TERMINAL BLUE, M8, PC, REEL | 1500 . | pcs | 1.04-2.63 mm² |
No
|
|
|
|
| INSULATED RING TERMINAL YELLOW, M4, PC, REEL | 1000 . | pcs | 4 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M5, PC, REEL | 1000 . | pcs | 5 . | 2.63-6.64 mm² |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M6, PC, REEL | 1000 . | pcs | 6 . | 2.63-6.64 mm² |
Yes
|
|
|
- Total: 11
Similar Options
Approvals
- Total: 11
| Product Description | UL-File No. | Approved according to CE | With approval according to UL | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|---|
| INSULATED RING TERMINAL RED, M8, PC, REEL | E44245 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL RED, M6, PC, REEL | E44245 |
|
|
|
No
|
|
|
| INSULATED RING TERMINAL RED, M4, SLIM, PC, REEL | E44245 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL RED, M4, PC, REEL | E44245 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M4, PC, REEL | E44245 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M5, PC, REEL | E44245 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M6, PC, REEL | E44245 |
|
|
|
No
|
|
|
| INSULATED RING TERMINAL BLUE, M8, PC, REEL | E44245 |
|
|
|
No
|
|
|
| INSULATED RING TERMINAL YELLOW, M4, PC, REEL | E44245 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M5, PC, REEL | E44245 |
|
|
|
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M6, PC, REEL | E44245 |
|
|
|
Yes
|
|
|
- Total: 11
Technical Properties
- Total: 11
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Max. current (Imax) | Flange shape | According to DIN | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | Surface protection | Material insulation | Fire classification | Operating temperature | Material | Voltage max | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED RING TERMINAL RED, M8, PC, REEL | Yes | Yes | 19 A | Ring shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | Copper | 600V |
Yes
|
|
|
|
| INSULATED RING TERMINAL RED, M6, PC, REEL | Yes | Yes | 19 A | Ring shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | Copper | 600V |
No
|
|
|
|
| INSULATED RING TERMINAL RED, M4, SLIM, PC, REEL | Yes | Yes | 19 A | Ring shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | Copper | 600V |
Yes
|
|
|
|
| INSULATED RING TERMINAL RED, M4, PC, REEL | Yes | Yes | 19 A | Ring shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M4, PC, REEL | Yes | Yes | 27 A | Ring shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M5, PC, REEL | Yes | Yes | 27 A | Ring shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M6, PC, REEL | Yes | Yes | 27 A | Ring shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V |
No
|
|
|
| INSULATED RING TERMINAL BLUE, M8, PC, REEL | Yes | Yes | 27 A | Partially isolated | Polycarbonate (PC) | According to UL94V2 | 600V |
No
|
|
|
||||||||||||||
| INSULATED RING TERMINAL YELLOW, M4, PC, REEL | Yes | Yes | 48 A | Ring shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M5, PC, REEL | Yes | Yes | 48 A | Ring shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M6, PC, REEL | Yes | Yes | 48 A | Ring shape | No | Partially isolated | Yellow | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polycarbonate (PC) | According to UL94V2 | -40-125 °C | Copper | 600V |
Yes
|
|
|
- Total: 11
Other information
- Total: 11
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| INSULATED RING TERMINAL RED, M8, PC, REEL | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Reel | NICHIFU, HAB ICTBX 1.25-8 | HABICTBX1585R |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M6, PC, REEL | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Reel | NICHIFU, HAB ICTBX 1.25-6 | HABICTBX1565R |
No
|
|
|
| INSULATED RING TERMINAL RED, M4, SLIM, PC, REEL | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Reel | NICHIFU, HAB ICTBX-1.25-4M-RE | HABICTBX1543RS |
Yes
|
|
|
| INSULATED RING TERMINAL RED, M4, PC, REEL | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Reel | NICHIFU, HAB ICTBX 1.25-4 | HABICTBX1543R |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M4, PC, REEL | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Reel | NICHIFU, HAB ICTBX 2-4 | HABICTBX2543R |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M5, PC, REEL | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Reel | NICHIFU, HAB ICTBX 2-5M | HABICTBX2553R |
Yes
|
|
|
| INSULATED RING TERMINAL BLUE, M6, PC, REEL | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Reel | NICHIFU, HAB ICTBX 2-6 | HABICTBX2565R |
No
|
|
|
| INSULATED RING TERMINAL BLUE, M8, PC, REEL | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Reel | NICHIFU, HAB ICTBX 2-8 | HABICTBX2585R |
No
|
|
|
| INSULATED RING TERMINAL YELLOW, M4, PC, REEL | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Reel | NICHIFU, HAB ICTBX 5.5-4 | HABICTBX4643R |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M5, PC, REEL | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Reel | NICHIFU, HAB ICTBX 5.5-5 | HABICTBX4653R |
Yes
|
|
|
| INSULATED RING TERMINAL YELLOW, M6, PC, REEL | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Reel | NICHIFU, HAB ICTBX 5.5-6 | HABICTBX4665R |
Yes
|
|
|
- Total: 11
