HAB ICTBX 2585 R

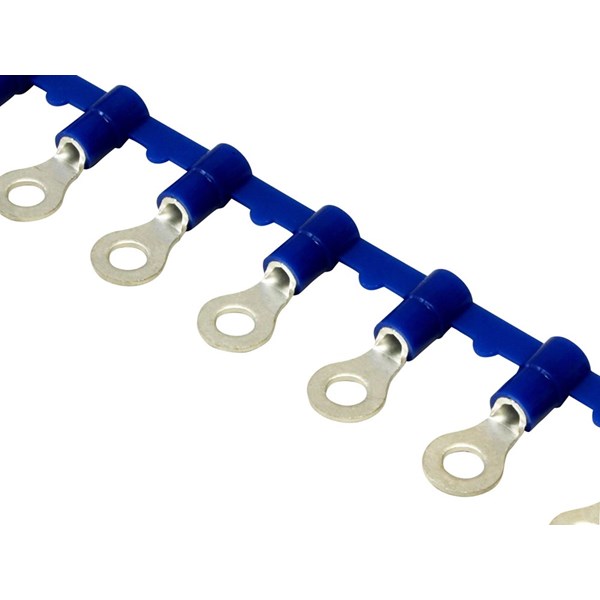

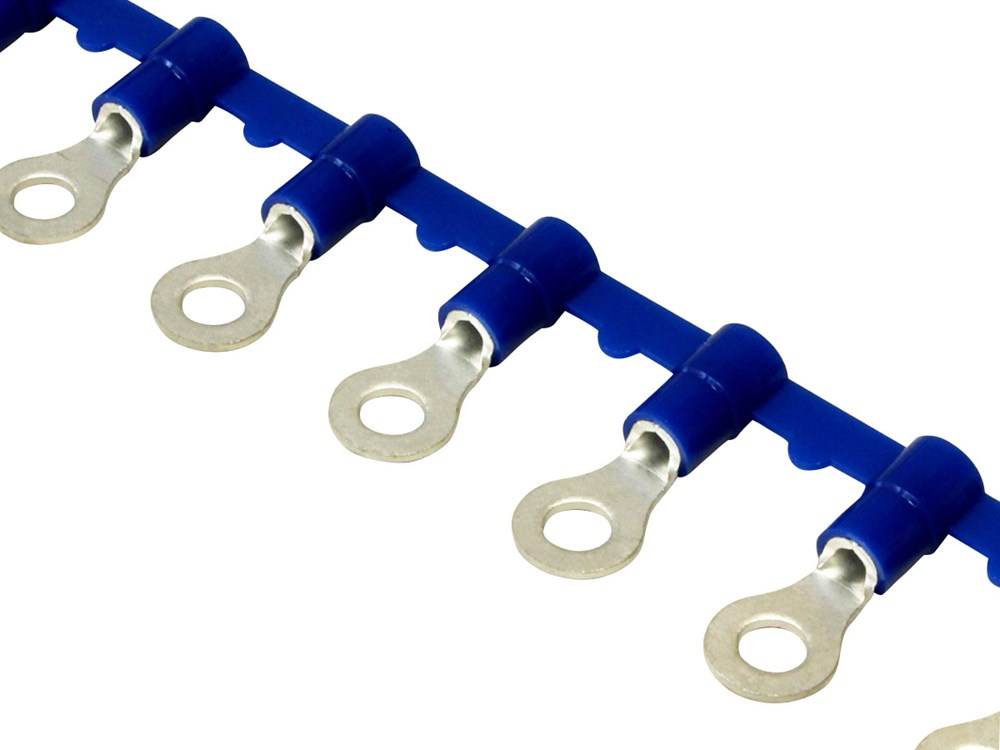

INSULATED RING TERMINAL BLUE, M8, PC, REEL
HAB ICTBX 2585 R
- Availability:
-
No
- Total: 1
Related items
Ring terminals on reel, HAB ICTBX-series
Insulated terminals on reel from Nichifu.
Brazed seam
Easy entry
- Total: 1
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Max. current (Imax) | 27 A |
| Insulation | Partially isolated |
| Material insulation | Polycarbonate (PC) |
| Fire classification | According to UL94V2 |
| Voltage max | 600V |
Dimensions
| MOQ | 1500 . |
|---|---|
| Unit | pcs |
| Nominal cross section | 1.04-2.63 mm² |
Logistics
| Barcode | 733117641846 |
|---|---|
| Country of origin | JP |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 1500 . |
| Stock code | HAB ICTBX 2585 R |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| UL-File No. | E44245 |
|---|---|
| Approved according to CE | Yes |
| With approval according to UL | Yes |
| Inflammability class of insulation material according to with UL94 | V2 |
Other info
| ETIM-Class | EC001052 - Solderless copper terminals for copper conductors |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Ring terminals - Reel |
| Search Description | NICHIFU, HAB ICTBX 2-8 |
| Alternative SKU | HABICTBX2585R |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Iron and Steel Sanction | Compliance |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
