Pressverktyget är en ratchettång med inbyggd returspärr som garanterar att kontaktpressningen fullföljs.

Pressverktyg i flera utförande bestyckad med 1 backpar från NCXD/DHD/DRG-serien. Pressverktyget är en ratchettång som säkerställer att pressningen fullföljs. Returspärren har en release-hake ifall man vill avsluta pressningen.

The Ty-Rap non-magnetic stainless steel locking device ensures a strong, reliable and long lasting fastening under adverse conditions. The smooth, notchless body reduces stress concentration points and ensures a precise fastening. All Ty-Rap cable ties meets and exceeds the performance requirements according to MIL-S-23190 (USA). Smooth and ronded edges on the head and the strap, provides a comfortable handling of the ties and prevent sharp edges from damaging the cables. This gradual transition from the strap to the head protects the material against breaking at this most critical point.

Extra flexible. Material cable tie: Polyamide 12 Material looking tongue: Stainless steel 316 Other features: UV-resistant

Extra heat resistant. Material cable tie: Polyamid 6.6 Material locking tongue: Stainless steel 316 Color: Natural (may have a greenish tint)

Better chemical properties than polyamide. Material locking tongue: Stainless steel 316 Flammability class: UL 94 HB Other features: UV-resistant

Good chemical features for extreme temperatures. The best plastic material cable ties are made in. Material cable tie: Fluoropolymer ETFE Material locking tongue: Stainless steel 316 Other features: UV-resistant Color: Aquamarine

Flame retardant according to UL 94 V-0. Material cable tie: Polyamid 6.6 Material locking tongue: Stainless steel 316 Flammability class: UL 94 V-0

The all-plastic cable ties are available in lengths from 112 mm to 1214 mm and widths from 2.4 mm to 13.2 mm, offering a loop tensile strength up to 1120 N. Those cable ties will satisfy bundling requirements up to 381 mm. Ty-Fast® cable ties meet shipbuilding classification such as Germanischer Lloyd/DNV-GL, Lloyd’s Register of Shipping, Bureau Veritas but also Mil Specification and QPL. Ty-Fast® cable ties have a CE declaration, supported by compliance to the low voltage directive and EN/IEC 62275 and UL 62275. State-of-the-art robotic and raw material handling equipment assures product and material integrity throughout the manufacturing process. The integrally formed Polyamide pawl combines low insertion and high locking strength. A rounded, low-profile head makes for less snags, tails have improved two-sided finger grip design that helps the operator grasp and pull ties snug. The Sure Grip tab keeps the tail from popping out while being threaded, then holds it securely for final tightening by hand or tool."

TY-series, standard material Material cable tie: Polyamid 6.6 Material locking tongue: Stainless steel 316 Color code: 1 = brown, 2 = red, 3 = orange, 4 = yellow, 5 = green, 6 = blue, 7 = purple, 8 = grey, 9 = white

Cable ties in a complete range to fit the needs of OEM’s. A rounded, low-profile head makes for less snags. Tails have improved two-sided finger grip design that helps the operator grasp and pull ties snug. Sure Grip tab keeps the tail from popping out while being threaded, then holds it securely for final tightening by hand or tool. Colour code: 1 = brown, 2 = red, 3 = orange, 4 = yellow, 5 = green, 6 = blue, 7 = purple, 8 = grey, 9 = white

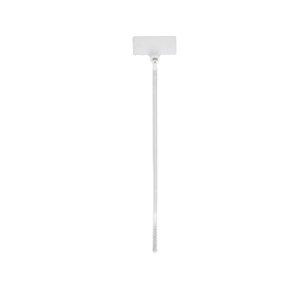

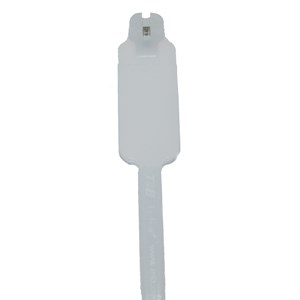

Material cable tie: Polyamid 6.6 Material locking tongue: Stainless steel 316 Other features: Silikonfri Approvals: TY 51 M is approved according to MIL (MS-3368-5) The identification tag is placed inside the locking device.

Material locking tongue: Stainless steel 316 Temperature range: -40°C - +85°C Other features: Silicone free Approvals: MIL: MS-3368-1, -2, -3, -4 TY 46 is available with 1, 2, 3 or 4 cable ties on the same identification tag. L-4-18ID-9-M is a Ty-Fast plastic cable tie without steel barb. It is not UL approved.

Characteristics Can be directly mounted on to a support with screws, bolts or rivets. Mounting and bundling in one maintenance-friendly assembly. Typical application: cable harness manufacture and pre- and end- mounting of bundles andparts. Maintenance friendly mounting of cables, tubes and parts in all types and sizes of machines and installations - indoor and outdoor.

Cable ties for panel mountingCable ties for panel mounting up to 4.0 mm, anchor type. The Ty-Rap non-magnetic stainless steel locking device ensures a strong, reliable and long lasting fastening under adverse conditions. The locking tongue of stainless steel in the nylon head gives the cable ties a superior locking in all temperatures and environments.The smooth, notchless body reduces stress concentration points and ensures a precise fastening. All Ty-Rap cable ties with locking device meets and exceeds the performance requirements according to MIL-S--23190 (USA). Smooth and rounded edges on head and strap provides a comfortable handling and prevents sharp edges from damaging the cables. Material locking tongue: Stainless steel 316 Color: Natural, UV-resistant black Other features: Silicone free Only TY 38 M and TY 538 M are UL approved.

Ties with mounting holes without stainless steel lock. Other properties: Silicone free, UVresistant (black) Approvals: E49405 (natural)

For contamination-sensitive industry using detection equipment. This metal-containing cable tie has been specially developed for the food and medical fields. Detectable by metal detectors. Detectable by X-Ray. Bright blue colour for an easy visual detection. Material - cable tie: Polyamide 6 with metal pigment Material - tongue: Stainless steel 316

Blind mounting cable ties, suitable for hard-to-reach areas. Fast hidden mounting on walls and vehicle chassis. Flammability class: UL 94 V-2 Other features: UV-resistant, Silicone free

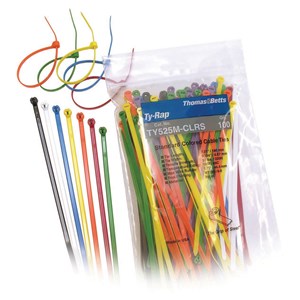

Assortment of cable ties in different colors in a practical plastic bag. 10 pcs of each color; black, brown, red, orange, yellow, green, blue, purple, grey and white. 100 pcs/bag

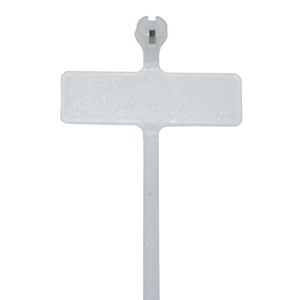

Cable ties with tranverse identification tag Material cable tie: Polyamid 6.6 Material locking tongue: Stainless steel 316 Other features: Silicon free Approvals: TY 51 M is approved according to MIL (MS-3368-5) Dentification tag is placed outside the locking device. Tooling: For suitable tooling

UV-resistant and flame retardant Ty-Rap® cable ties for the railway industry Premium cable ties with steel locking barb to secure and manage cables - The "Grip of Steel" Non-Magnetic Stainless Steel locking Barb - marine grade type 316 - Rounded edges to prevent sharp edges from damaging cables - Smooth, notchless body, making the cable ties stronger - Ribbed and Stippled surface to prevent the tie from slipping under vibration conditions and external shock - UV-resistant and flame retardant Ty-Rap® cable ties are certified to the latest standard for the train industry - Tested according to the NFF 16-101 standard - Tested according to the EN 45545-2 - Complete range of Ty-Rap® cable ties in different dimensions up to a tensile strength of 540N.

For contamination-sensitive industry using detection equipment. This metal-containing cable tie has been specially developed for the food- and medical fields. Detectable by metal detectors. Detectable by X-Ray. Bright blue colour for an easy visual detection. Polypropylene is very resistant to acids, alkalis and oils. Polypropylene is not very dense of a material which makes these cable ties float to the surface when dropped in fluids making them easy to spot. Material - cable tie: Polypropylene with metal pigment Material - tongue: Stainless steel 316 Fire classification: UL 94 V-2

Copper tube lugs for the Nordic market. For stranded wires. Material: 99.9% pure copper Surface: > 4µ Sn Inscriptions on the lugs palm can for ie be: n35-12D n = nemiq // 35 = 35 mm² wire // 12 = M12 stud size // F = KRF Inscriptions on the lugs neck can for ie be: 6 6 = Outside diameter of the neck (F). When crimping with hexagon dies neck inscription and die markings must conform
