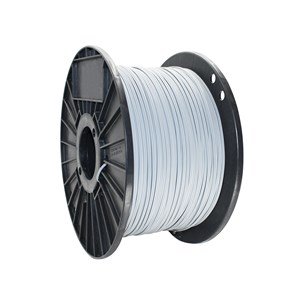

DINFLEX 43
Anslutningskabel för data- och elektronikutrustning inomhus. Försedd med skärm av aluminiumfolie, dels kring varje par och dels gemensamt.
Uppbyggnad
Ledare: Blank flertrådig koppar
Ledarisolation: Polyeten
Ledarfärg: Enligt DIN 47100
Bandering: PETP-folie
Skärm: Aluminiumfolie runt varje par. Gemensam skärm av aluminiumfolie. Bit tråd av koppar
Yttermantel: PVC
Mantelfärg: Grå
Tekniska data:
Märkspänning: 250 V
Ledarresistans: 98 Ohm/km
Parkapacitans: 75 Pf/km
Temperaturområde: -5ºC till +80ºC
- Number of cores:
- 4-16 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- Yes
- Max. conductor temperature:
- 70 °C
- Screen:
- Yes
- Armouring/reinforcement:
- Other
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 250 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Colour:
- Grey
- Material insulation:
- Polyvinyl chloride (PVC)
- Core colour:
- Several
- Conductor surface:
- Bare
- Halogen free:
- No
- Min. permitted bending radius, stationary application/permanent installation:
- 24-50 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
RQUB
Halogen-free Connection cable for vehicle applications that comply with ISO 6722, class A.
Packaging (YD x Hub x Width)
Spool B6: 250mm x 56mm x 95mm
Coil
Drum
Structure
Conductor: Glossy multi-wire copper
Conductor insulation: PP
Conductor color: According to table below
- Number of cores:
- 2 .
- Material core insulation:
- Other
- Specification core insulation:
- Polypropylene (PP)
- Core identification:
- Colour
- Protective conductor:
- No
- Colour outer sheath:
- Other
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Halogen free:
- Yes
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Single insulated
- Core colour:
- Several
- Conductor surface:
- Bare
- Min. permitted bending radius, stationary application/permanent installation:
- 18.8 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No

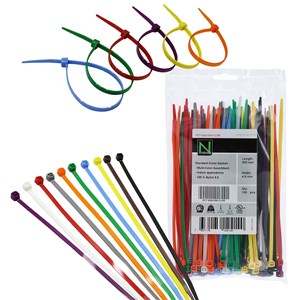

Assortments with cable ties in different colours
100 pcs cable ties, divided in 10 different colours.
Length x width: 200 x 4.8 mm
- Detectable:
- No
- Min. tensile strength:
- 220 N
- Model:
- Internal toothing
- Material quality:
- Polyamide (PA)
- Band closure:
- Plastic lip/-cam
- UV-stable acc. ASTM D6779:
- No
- Transparent:
- No
- Fluorescent:
- No
- Solvable fastener:
- No
- Text strip:
- None
- Type of fastening:
- None
- Colour:
- Multi-coloured
- Surface protection:
- Untreated
- Material:
- Plastic
- Halogen free:
- Yes
- Max. tensile force:
- 220 N
Battery Crimp Tool for N36-Crimp dies
NMBT N36 is a battery crimp tool for D36. The tool is equipped with a battery indicator and the head is rotatable 350°. Delivered with a battery and a battery charger in a durable plastic case.
The tool can press:
KRF 10-70 mmmm²
KRT 10-95 mm²
KRD 16-95 mm²
C6-C11
Battery: 18 VDC, 2.0 Ah Li-Ion
Pressure: 39kN, 4 ton
Weight: 2.3 kg (including battery)
Dimensions case (LxWxH): 560x160x400 mm
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 0 .
- With automatic return:
- No
- Cycle time:
- 5 s
- Compression force:
- 39 kN
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Accumulator-hydraulic
- For component:
- Non-insulated Cu tube and sheet terminals, C-clamps
- Compression shape:
- Round compression, Universal (exchangeable inserts)
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19-48 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow, Red, Other
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polycarbonate (PC)
- Fire classification:
- According to UL94V2
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- Yes
- UL-File No.:
- E44245
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19-48 A
- Flange shape:
- Pin shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polycarbonate (PC)
- Fire classification:
- According to UL94V2
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- Yes
- UL-File No.:
- E44245
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19-48 A
- Flange shape:
- Fork shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Yellow, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polycarbonate (PC)
- Fire classification:
- According to UL94V2
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- Yes
- UL-File No.:
- E44245
KRF - 10-25mm²
Fork terminals.
Material: 99.9% pure copper
Surface: > 4mc Sn
Inscriptions on the lugs palm can for ie be: 4-6
4 = 4 mm² wire // 6 = M6 stud size.
- Suitable for Class 5 conductor:
- Yes
- Suitable for Class 6 conductor:
- Yes
- Insulated:
- No
- Max. current (Imax):
- 66-124 A
- Number of mounting holes:
- 1 .
- Flange shape:
- Fork shape
- Colour insulation:
- Other
- Slender flange model:
- No
- With sight-hole:
- Yes
- Conductor category:
- Several
- Max Temp:
- 150 °C
- Surface protection:
- Tinned
- Material:
- Copper
- Connecting angle:
- 180° (horizontal)
- Series:
- KR/KS (0.75-6mm2), KRF/KSF (10-500mm2)
Kopplingsplintar med skruvkontakt och trådskydd
OK 430 NY-serien Kopplingsplintar/ sockerbitar med skruvkontakt i nylon. Med trådskydd.
Poltal: 1,3 eller 12. Se nedan.
Spänning: 450 V
Temperatur: +110° C
Färg: Natur
Material: PA 66
Förpackning: 10 Pack inplastade eller i påse för butiksexponering(-PP)
- Number of poles:
- 1-12 .
- Type of electrical connection 1:
- Screw connection
- Type of electrical connection 2:
- Screw connection
- Mounting method:
- Surface mounted
- Material insulation body:
- Thermoplastic
- Transparent:
- No
- Colour:
- Natural colour

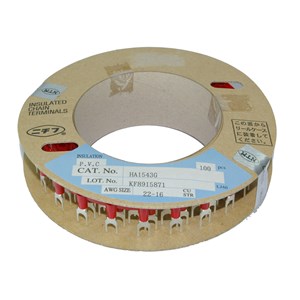

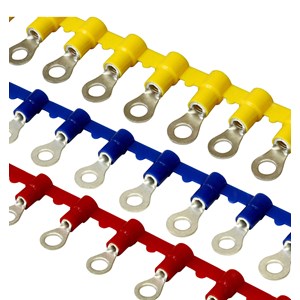

Ring terminals on reel, ICTBX-series
Insulated terminals on reel from Nichifu.
Brazed seam
Easy entry
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Max. current (Imax):
- 19-27 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polycarbonate (PC)
- Fire classification:
- According to UL94V2
- Material:
- Copper
- Voltage max:
- 600V
- UL-File No.:
- E44245
Ring terminals on reel, HAB ICTBX-series
Insulated terminals on reel from Nichifu.
Brazed seam
Easy entry
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Max. current (Imax):
- 19-48 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polycarbonate (PC)
- Fire classification:
- According to UL94V2
- Material:
- Copper
- Voltage max:
- 600V
- UL-File No.:
- E44245

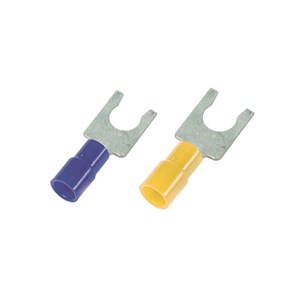

Gaffelkabelskor med bockad framkant PB-serien
PB-serien Material: Förtent koppar Isolering: Polykarbonat (PC) Temperaturområde: -40 grader Celsius till +125 grader Celsius Svetsad hals Easy entryHalogenfri
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19 A
- Flange shape:
- Fork shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Red
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polycarbonate (PC)
- Fire classification:
- According to UL94V2
- Material:
- Copper
- Voltage max:
- 600V
- UL-File No.:
- E44245

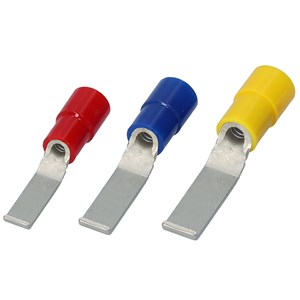

Blade terminals PB-series SF
Bladstiftskabelskor
PB-serien SF
Material: Förtent koppar
Isolering: Polykarbonat (PC)
Svetsad hals
Easy Entry
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19-48 A
- Flange shape:
- Pin shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polycarbonate (PC)
- Fire classification:
- According to UL94V2
- Material:
- Copper
- Voltage max:
- 600V
- UL-File No.:
- E44245

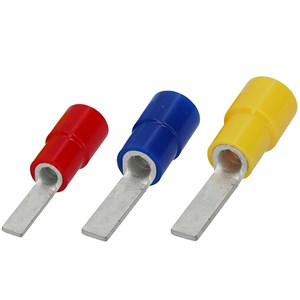

Blade terminals PB-series SFB
Bladstiftskabelskor
PB-serien SFB
Material: Förtent koppar
Isolering: Polykarbonat (PC)
Svetsad hals
Easy Entry
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19-48 A
- Flange shape:
- Pin shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polycarbonate (PC)
- Fire classification:
- According to UL94V2
- Material:
- Copper
- Voltage max:
- 600V
- UL-File No.:
- E44245
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 16 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Yellow
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- Yes
- UL-File No.:
- E42024

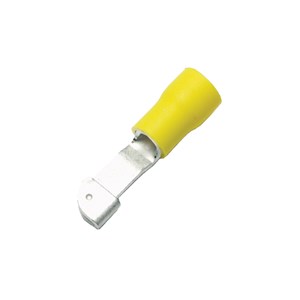

- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 27 A
- Flange shape:
- Flat-pin shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V0
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- No
- UL-File No.:
- E42024

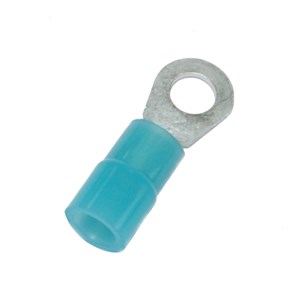

Ring terminals on reel, HA-series
Brazed seam
Easy entry
Used with NCH-crimp system.
Se further down for related links.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- Yes
- Max. current (Imax):
- 27-48 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V0
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- No
- UL-File No.:
- E44245

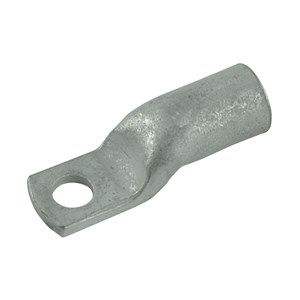

KRTS - 35-300mm²
KRTS-serien är rörkabelskor anpassade för trånga utrymmen. Kabelskoplattan är i samma bredd som kabelskon halsdiameter. Passar till mångtrådiga Cu-ledare(klass 5) samt fåtrådiga Cu-ledare(klass 2).
Material: 99.9% ren Cu
Ytbehandling: > 4µ Sn
Märkning på rörkabelskons platta kan t.ex. vara: n35-6T
n = Nelco // 35 = 35 mm² kabel // 6 = M6 hål // T = KRT måttstandard.
Märkning på rörkabelskons hals kan t.ex. vara: 12
12 = Ytterdiameter på halsen (OD-måttet).
Vid pressning med 6-kantsbackar skall halsmärkning och backmärkning överensstämma.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Insulated:
- No
- Max. current (Imax):
- 153-560 A
- Number of mounting holes:
- 1 .
- Flange shape:
- Ring shape
- Colour insulation:
- Other
- Slender flange model:
- Yes
- With sight-hole:
- No
- Conductor category:
- Several
- Max Temp:
- 150 °C
- Surface protection:
- Tinned
- Material:
- Copper
- Connecting angle:
- 180° (horizontal)
- Series:
- KRTS
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19 A
- Flange shape:
- Fork shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Red
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V0
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- Yes
- UL-File No.:
- E78965

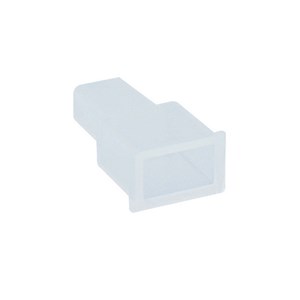

ISO 23
ISO 23
Isolationsmuff för förmontage.
Material: Polyeten
Färg: Natur
Passar till: Flatstift 6.3 mm
- Type of accessory/spare part:
- Insulating sleeve
- Colour:
- Natural colour
- Material:
- Polyethylene (PE)
- Isolation sleeve for:
- Flatstiftshylsa 6.3mm
- Mounting method:
- Pre-assembly (before crimping)
- Accessory:
- Yes
- Spare part:
- No

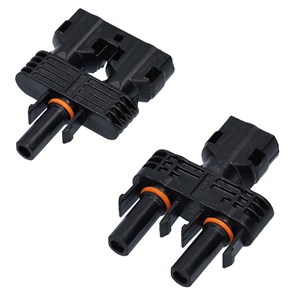

PV Solar branch connectors MC4
Either with 2 x Pin+pin housing & 1 x Socket+socket housing or 1 x Pin+pin housing & 2 x sockets+sockethousings.
Pin/Socket: Tinned cupper
Max voltage: 1500V
Max current: 30A
IP68
UV resistant according to ISO 4892-2
Tested according to IEC 62582
- Housing material:
- Plastic
- Rated current:
- 54 A
- Rated voltage:
- 1500 V
- Ambient temperature:
- -40-85 °C
- Type of housing:
- Straight
- Coating housing:
- Plastic-coated
- Type of locking:
- Double locking levers
- Screened:
- No
- With status indication:
- No
- Degree of protection (IP), mounted:
- IP68
- Material of contact surface:
- Brass
- With protective conductor:
- No
- Rated impulse sparkover voltage:
- 16 kV
- Rated insulation voltage:
- 8000 V
- Contact type:
- Bus, Pin
R2G4 - 400 m spool 1-color
Thin-walled car cable with PVC insulation and fine wire copper conductors for maximum 100ºC conductor temperature.
Packaging (OD x Hub x Width):
Spool B6: 250mm x 56mm x 95mm
Structure
Conductor: Blank stranded copper
Conductor insulation: PVC
Conductor identification: Multiple color combinations
Technical data:
Rating voltage: 100V
Temperature range: -40ºC to +100ºC (-40ºF to +212ºF)
Approvals: According to Volvo 7613 R2, 111 / 3
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Purple, Pink, Blue, Brown, Yellow, Grey, Green, Orange, Red, Black, White, Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -40-100 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 100 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 100 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Single insulated
- Colour:
- Black, Green, Grey, Orange, Yellow, Brown, Red, White, Blue, Pink, Purple
- Core colour:
- Blue, Brown, Yellow, Grey, Green, Purple, Orange, Pink, Red, Black, White
- Conductor surface:
- Bare
- Packaging:
- Reel B6
- Min. permitted bending radius, stationary application/permanent installation:
- 7-14 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
- Explosion-proof:
- No

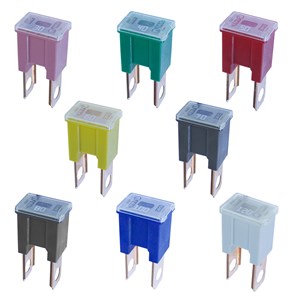

- Release characteristic:
- Time-lag (T)
- Optical defect indication:
- Yes
- Type of current:
- DC
- Colour code:
- Blue
- Nominal voltage DC:
- 32 V
- Max. continuous voltage DC:
- 32 V
- Max. current (Imax):
- 20-60 A
- Nominal current:
- 20-100 A
- Explosion-proof:
- No
- Release characteristic:
- Time-lag (T)
- Optical defect indication:
- Yes
- Type of current:
- DC
- Colour code:
- Blue
- Nominal voltage DC:
- 32 V
- Max. continuous voltage DC:
- 32 V
- Max. current (Imax):
- 30-120 A
- Nominal current:
- 30-120 A
