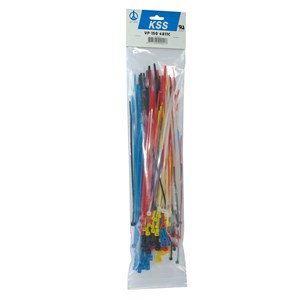

Assortment package with coloured plastic cable ties
Assortment with cable ties in different lengths and colours.
V 50-811 C
25 x 200mm divided in black, blue, red & yellow
25 x 280mm divided in black, blue, red & yellow
V 150-4811 C
50 x 100mm divided in natural, black, blue, red & yellow
50 x 200mm divided in natural, black, blue, red & yellow
50 x 280mm divided in natural, black, blue, red & yellow
- Detectable:
- No
- Model:
- Internal toothing
- Material quality:
- Polyamide (PA)
- Band closure:
- Plastic lip/-cam
- UV-stable acc. ASTM D6779:
- No
- Transparent:
- No
- Fluorescent:
- No
- Solvable fastener:
- No
- Text strip:
- None
- Type of fastening:
- None
- Colour:
- Multi-coloured
- Surface protection:
- Untreated
- Material:
- Plastic
- Halogen free:
- Yes
Battery teminals med snabbkoppling - BTCS
Helgjuten batterikabelsko, med snabbkoppling och polskydd.
Finns i förtent och mässing.
Area på kabel: 25 - 50 mm²
Polstorlek: (+) 19 mm, (-) 17 mm
Bultar: Kabel 2 st M6
- Type of accessory/spare part:
- Battery terminal
- Insulated:
- Yes
- Surface protection:
- Tinned
- Cable connection type:
- Klämning
- Connection around pole:
- Snabbkoppling
- Accessory:
- Yes
- Spare part:
- No
Krympslangstejp - NKST
Cross-linked heat shrinkable insulation tape adopts cross-linked polyolefin and enviromental friendly heat melted adhesive that can be used for insulation, waterproof and anti-corrosion purposes.
Featuers:
Partial repari of the Cable protective layers suffered by mechanical and heat damages and corrosions and breakages caused by organic solvent. Waterproof treatment at then ends of protective sleeves of heat shrinkable Power Cable joints.
Anti-Corrosion and seal of pipes.
Insulation of bus bars in swichgear board and Power stations.
Whitstand temperature: - 55 °C - 105 °C
Shrink temperature: 125°
Self shrink ratio : > 30 %
Colors: Black
- Transparent:
- No
- Type:
- Heat-shrink
- Shrink rate:
- Other
- With inner glue:
- No
- Printable:
- No
- Colour:
- Black
- Material:
- Polyolefin (PO-X)
- Halogen free:
- No
- UL approval:
- No
NGBTO CC85
A Battery Cable cutter with cutting up to 85 mm Cu and Al cable.The blade is connected to a power of 78,4kN. The head is angular for to facilitate work from different angles.
NGBTO CC85 is delivered in a plastic case with battery (18.0VDC.2.0Ah), battery charger and shoulder strap.
- Grip design:
- 2-components
- With impact protection:
- No
- Suitable for steel wire braiding:
- No
- Replaceable cutting head:
- Yes
- Cutting jaws exchangeable:
- Yes
- With strip function:
- No
- Insulated:
- Yes
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Accumulator-hydraulic
- Isolation protection 1000 V:
- No
- With spring:
- N/A
- VDE tested:
- No

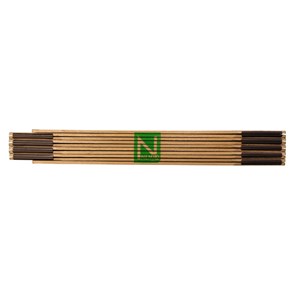

MS2F
MS2F är en 2m meterstock i trä men vänd mätskala, vilket gör att meterstocken ligger platt mot ytan som mäts.
TRUMBOCK 600
Stable drum stand in 3 parts for large and small drums. Floor model. Max. width: 900mm Max. weight: 600kg Foot diameter: 660mm Height: 1050mm Weight: 5.9kg
IDC Skarvkontakt NDC-Serien
Öppningsbar skarvkontakt för kabel.
Kabelinstallation utan behov av att skala kablarna eller användning av pressverktyg. En kontakt per kabel behövs, vänd ena kontakten upp och ned och tryck sedan ihop kontakterna. Kontakterna kan byggas ihop för flera poler.
Kontakter: Förtent brons
Isolering: Polykarbonat
Area: Se nedan
Max spänning: 100V
Max ström:
NDC 2824: 1A för AWG28-AWG26, 2A för AWG24.
NDC 2420: 2A för AWG24-AWG22, 3A för AWG20.
Max kabeldiameter:
NDC 2824: 1.6 mm
NDC 2420: 2.1 mm
Temperaturområde: -20°C - +75°C
Monteringstemperatur: 0°C - 40°C
Solar cell connectors, MC4, 1000V
Solar panel connectors.
Contact material: Tin plated copper
Contact resistance: <0.5mΩ
According to EN 62852:2015.
- Housing material:
- Plastic
- Rated current:
- 30 A
- Rated voltage:
- 1000 V
- Ambient temperature:
- -40-85 °C
- Type of housing:
- Straight
- Coating housing:
- Plastic-coated
- Type of locking:
- Bayonet
- Screened:
- No
- With status indication:
- No
- Degree of protection (IP), mounted:
- IP67
- Material of contact surface:
- Brass
- With protective conductor:
- No
- Rated impulse sparkover voltage:
- 8 kV
- Rated insulation voltage:
- 6000 V
- Contact type:
- Bus, Pin, Other

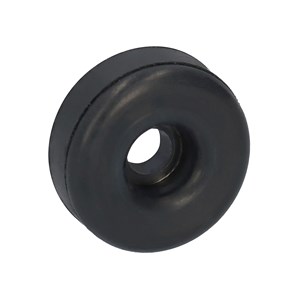

Rubber feet with metal plate, cylindrical
Robust cylindrical rubber feet that provides a good grip, protects the surface and reduces vibrations. With a built-in plate that reinforces and prevents the screw from going through the foot.

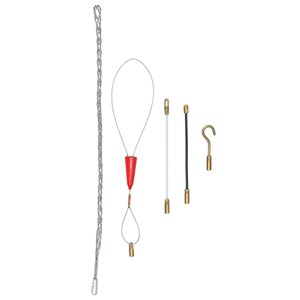

Accessories for Fish tapes
Extra tips for DFNK 20 and DFA KIT.
Includes:
1 piece Search coil with ball
1 piece Pull plug
1 piece Search coil with pull loop
1 piece Basic pull sock
1 piece Pull hook
• Search coil with ball - The search coil is flexible and can easily navigate around curves.
• Pull plug - When pulled, the sock tightens and holds onto the cable.
• Search coil with pull loop - The guide head is equipped with a loop where individual wires can be easily attached.
• Basic pull sock - Pulls cables of any diameter. Easily attach the cable by forming a figure-eight with the loop and threading the cable through
- Type of accessory/spare part:
- Other
- Accessory:
- Yes
- Spare part:
- Yes

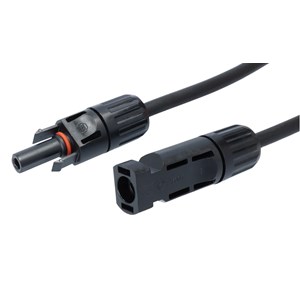

Extension cords MC4
Extension cord for 12V PV Solar panels or serial connection of multiple solar panels. Maximum distance between panel and regulator is 10 m.
BSB, Braided sleeve in polyester
The braided sleeving protects and bundles cables.If the sleeve is pressed together, the diameter expands and facilitates the entry of the cables. When wires are drawn through, pull out the sock lengthwise to get it to shrink around the wires.
Material: PolyesterTemperature range: -50 degrees Celsius to +150 degrees Celsius Flammability rating: UL 94 V-2 Colour: Black
- Material quality:
- Polyester
- Temperature:
- -50-150 °C
- Open (mountable afterwards):
- No
- Colour:
- Black
- Surface protection:
- Untreated
- Material:
- Plastic
- Halogen free:
- Yes
- Approved according to NF F 16-101:
- No
Kapsaxar för slang och VP-rör
TC 38 / TC 42
Kapsaxar för PVC-rör, PVC-slang, kabelkanal, gummislang mm.
Steglös frammatning med returknapp för skäret.
Klippkapacitet (diameter):
TC 38: 6-35 mm
TC 42: 6-42 mm
Längd: 195 mm / 220 mm
- Suitable for stainless steel:
- No
- Suitable for aluminium:
- No
- Suitable for copper:
- No
- Suitable for steel:
- No
- Suitable for cast iron pipe:
- No
- Suitable for plastic:
- Yes
- Suitable for multi-layer composite pipes:
- Yes
- With inner tube deburrer:
- No
- With quick adjustment:
- Yes
- Telescopic:
- No
- Number of cutting wheels:
- 0 .
- Isolation protection 1000 V:
- No

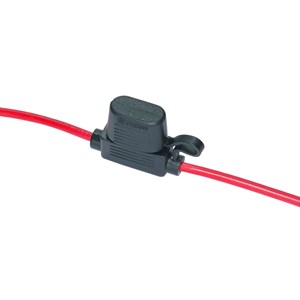

Fuse holder with cover and cable
För Midisäkringar (NORM)
Längd: 300 mm
Skyddsklass: IP54
Denna artikel finns även butiksförpackad i påse med streckkod, då med ändelse -PP på artikelnumret.
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Connection type:
- Other
- Rated current:
- 40 A
- Rated voltage:
- 58 V
- Type of current:
- DC
- Mounting method:
- Other
Fuse holder with cover and cable
För Maxisäkring.
Svart hus med röd förtent mässingskabel.
Längd: 300 mm
Skyddsklass: IP54
Kabelarea: AWG 8 (8.35 mm²)
Max: 80A
Denna artikel finns även butiksförpackad i påse med streckkod, då med ändelse -PP på artikelnumret.
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Connection type:
- Other
- Rated current:
- 100 A
- Rated voltage:
- 32 V
- Type of current:
- DC
- Mounting method:
- Other
NLFLEX, PA6, black, slotted, automotive, 10m
Slotted, halogen free, non-flammable, heat-stable and UV resistant. A standard conduit with good flexibility that gives a very good protection for electrical wiring against moisture, dirt and mechanical damage. The material is also resistant to oils, grease, solvents and fuels of various kinds. For the automotive industry, machine and apparatus construction as well as workshops.
- Compressive strength:
- 300 N
- Fire resistance according to UL94:
- HB
- Oil resistant:
- Yes
- Lengthwise slotted:
- Yes
- Closable (two-part):
- No
- With draw wire:
- No
- High conducting inner coating:
- No
- Degree of protection (IP):
- IP66
- Colour:
- Black
- Material:
- Polyamide 6
- Halogen free:
- Yes
- Suitable in fire resistance areas:
- Yes
- Approved according to DIN EN 61386-23:
- No
- Approved according to UR:
- No
- Approves according to Vd TÜV/GGVS:
- Yes
- Approved according to LUL/British Standard:
- No
- Approved according to Lloyd's Register TA:
- No
- Approved according to UTAC:
- No
- Approved according to DIN 5510:
- No
- Approved according to NF F 16-101:
- No
- Approved according to CSA:
- No
DATAFLEX - Korta längder
Flexibel elektronikkabel med fintrådig ledaruppbyggnad, som i kombination med PVC-manteln ger en mycket elastisk kabel med liten böjradie. Kabeln är försedd med en skärm av förtent koppartråd, som skyddar mot mekanisk belastning och framförallt avskärmar elektriska störningar såväl inom som utanför kabeln (EMC-direktivet). Den används för signal-, mät-, styr- och ton-frekvensöverföring i elektronik-, data- och signalanläggningar.
Uppbyggnad
Ledare: Blank flertrådig koppar
Ledarisolation: PVC
Ledarfärg: Enligt din 47100
Drain wire: Förtent cu tråd.
Bandering: PETP-folie
Skärm: Förtent kopparfläta
Yttermantel: PVC
Mantelfärg: Grå, RAL 7000
Tekniska data:
Driftspänning: 0.14 mm² = 300 V >0.14 mm² = 300 V
Provspänning: 0.14 mm² = 800 V >0.14 mm² = 1200 V
Temp. område: Fast förläggning min/max: -30ºC till +80ºC
Rörlig förläggning min/max: -5ºC till +80ºC
Isolerings motstånd >20 Mohm. Km min vid 20ºC
Ledar motstånd Max vid 20ºC
Minsta böjradie: 15 x kabelns diameter
Ul godkänd endast för 0.14 mm²
E132956 UR AWM STYLE 2560 60ºC 30V-LOW VOLTAGE COMPUTER CABLE- Vw1-+s+s+s
Oljebeständighet: God
Flambeständighet: IEC 332-1
- Number of cores:
- 4-6 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- Yes
- Max. conductor temperature:
- 70 °C
- Screen:
- Yes
- Armouring/reinforcement:
- Braiding
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 250 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Colour:
- Grey
- Material insulation:
- Polyvinyl chloride (PVC)
- Core colour:
- Several
- Conductor surface:
- Bare
- Halogen free:
- No
- Min. permitted bending radius, stationary application/permanent installation:
- 27.5-45 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
DINFLEX-CY (LiYCY) - Korta längder
Flexible electronic cable with fine wire conductor structure, as in combination with PVC sheath it provides a very flexible cable with a small bending radius. The cable is fitted with a screen of tinned copper wire, which protects against mechanical stress and particular it isolates all electrical frequency as well inside and outside the cable (EMC Directive). It is used for signal, measurement, control and tone-frequency transmission in electronics, computers and signal systems.
Structure Conductor: Blank stranded copper
Conductor insulation: PVC
Core identification: According to DIN 47100
Screen: Tinned copper braid
Outer Sheath: PVC
Sheath identification: Grey PETP-foil
Technical data:
Rating voltage: 0.14 mm² = 350 V > 0.14 mm² = 500 V
Test voltage: 0.14 mm² = 800 V > 0.14 mm² = 1200 V
Temperature range: Fixed min/max: -30ºC to +70ºC (-22ºF to +158ºF)Moving min/max: -5ºC to +70ºC (+23ºF to +158ºF)
Radiation Resistance: 8 x 107 cJ/kg
Minimum bending radius: 10 x cable diameter
Oil resistance: Good
Flame resistance: IEC 332-1
- Number of cores:
- 2-50 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- Yes
- Max. conductor temperature:
- 70 °C
- Screen:
- Yes
- Armouring/reinforcement:
- Braiding
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Colour:
- Black, Grey
- Material insulation:
- Polyvinyl chloride (PVC)
- Core colour:
- Several
- Conductor surface:
- Bare
- Halogen free:
- Yes, No
- Min. permitted bending radius, stationary application/permanent installation:
- 18.5-76.5 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
Pin terminal - Flat
B-serien
Material: 99.95% ren Cu
Ytbehandling: > 4mc Sn
Temperaturområde: Upp till 110° C
Svetsad hals
- Reel/roll packaging:
- No
- Max. current (Imax):
- 62-255 A
- Flange shape:
- Pin shape
- According to DIN:
- No
- Insulation:
- None
- Colour insulation:
- Other
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material:
- Copper
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Yellow
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -45-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 80 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- No
- Conductor category:
- Class 6 = very flexible
- Single insulated/Double insulated:
- Double insulated
- Colour:
- Yellow
- Material insulation:
- Polyvinyl chloride (PVC)
- Core colour:
- Yellow
- Conductor surface:
- Bare
- Halogen free:
- No
- Packaging:
- Reel B5
- Min. permitted bending radius, stationary application/permanent installation:
- 43.2-90 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
Edge clips - Side mounted
Edge clips can, for example, be used where there is no possibility of mounting holes or where there are difficulties for adhesive to adhere. These products are used for fixing cables, hoses & pipes. Commonly used in the automotive industry, cable manufacturers, cabinet builders, and other industries.
The clips comes without cable ties.
- For Edge thickness 1-3mm or 3-6mm.
- Cable ties with inner or outer serrations can be used.
- Cable ties can run along or across the edge (direction can be turned).
- For 3.6 or 4.8mm cable ties.
Material edge clips: PA66HIRHS UV
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19-48 A
- Flange shape:
- Pin shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V0
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- No
