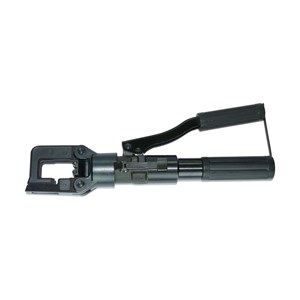

NYCP 240T
NYCP 240T_VP
NYCP 240 är ett handhydrauliskt pressverktyg för rörkabelskor och C-hylsor.
Verktygets huvud är roterbart 180°.
Levereras i en slitstark plastväska.
Verktyget kan pressa:
KRF 10-120 mm²
KRT 10-240 mm²
KRD 10-240 mm²
C4-C9
Verktyget passar med NH-backar.
Presskraft: 52 kN/5,3 ton
Vikt: 2.4 kg
Längd: 377 mm
OBS! Pressbackar ingår ej.
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 0 .
- With automatic return:
- No
- Cycle time:
- 10 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Hand hydraulic
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Round compression
ES 3
ES 3_VP
Crimps end-sleeves:
Single end-sleeve: 0.25-2.5 mm²
Type of crimping: Trapezoid crimp
Length: 165 mm
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 2 s
- Suitable for:
- Cable end sleeves
- Construction/operation:
- Mechanical
- For component:
- End sleeves
- Compression shape:
- Trapezoid compression
ES 16
ES 16_VP
Crimps end-sleeves:
Single end-sleeve: 0.5-16.0 mm²
Type of crimping: Trapezoid crimp
Length: 190 mm
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 2 s
- Suitable for:
- Cable end sleeves
- Construction/operation:
- Mechanical
- For component:
- End sleeves
- Compression shape:
- Trapezoid compression

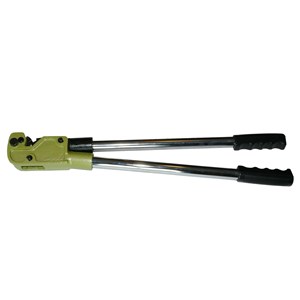

CT 38
CT 38_VP
CT 38 is a simpler thorn-crimping tool for 10.0-35.0 mm² copper lugs type KRF/KRT/KRD and metal sheet terminals (DIN).
There are 4 die nests:
Nest 8: Metal sheet 10, KRT 10
Nest 14: Metal sheet 16, KRF 10 & 16, KRT 16, KRD 16 & 25
Nest 22: Metal sheet 25, KRF 25, KRT 25, KRD 35
Nest 38: Metal sheet 35, KRF 35, KRT 35
Length: 550 mm
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Arbour clamping
2-handed (Hydraulic) NHHT WC40
NHHT WC40_VP
NHHT WC40 is an hand held hydraulic wire cutter for steel wire and steel-, copper and aluminiumrods.The head is rotatable 180º and releaseable.Delivered in an high quality fabric case.
Cutting capacity (diameter):Wire 6x7: 40mmWire 6x12: 40mmWire 6x19: 40mmCopper rod(mjuk): 32mmAluminium rod(mjuk): 40mmSteel rod(mjuk): 20mmCopper cable: 40mmAluminium cable: 40mmACSR: 40mm
Cannot be used for piano wire.
Max. pressure: 700barMax. cutting power: 9.7ton/95kNLength: 683mmWeight: 6.8kg
- Handle cover:
- Plastic
- Surface protection:
- Lacquered
- Construction/operation:
- Hand hydraulic
- Isolation protection 1000 V:
- No
- With spring:
- No

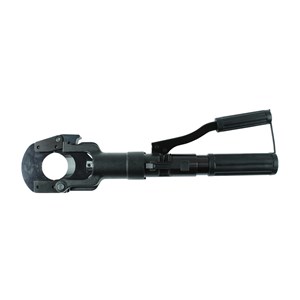

2-handed (Hydraulic) NHHT CC50
NHHT CC50_VP
NHHT CC50 is an hand held hydraulic cable cutter for copper and aluminium cable.The tool is equip with a automatic safety valve. The head is rotatable 90º and releaseable.
Cutting capacity (diameter): 50 mm
Length: 500 mm
- Grip design:
- 1-component
- With impact protection:
- No
- Suitable for steel wire braiding:
- No
- Replaceable cutting head:
- Yes
- Cutting jaws exchangeable:
- Yes
- With strip function:
- No
- Insulated:
- Yes
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Hand hydraulic
- Isolation protection 1000 V:
- No
- With spring:
- N/A
- VDE tested:
- No
2-handed (Hydraulic) NHHT CC85
NHHT CC85_VP
NHHT CC85 is an hand held hydraulic cable cutter for copper and aluminium cable.
The tool is equip with a automatic safety valve and a two step hydraulic system that helps and makes work more efficient for the operator.The head is rotatable 180º and releaseable.Delivered in an high quality case.
Cutting capacity (diameter): 85 mm
Length: 660 mm
- Grip design:
- 1-component
- With impact protection:
- No
- Suitable for steel wire braiding:
- No
- Replaceable cutting head:
- Yes
- Cutting jaws exchangeable:
- Yes
- With strip function:
- No
- Insulated:
- Yes
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Hand hydraulic
- Isolation protection 1000 V:
- No
- With spring:
- N/A
- VDE tested:
- No
Hydraulisk Kabelsax NPHTO CC85
NPHTO CC85_VP
NPHTO CC85 är ett hydrauliskt kabelsaxhuvud försedd med en 3/8" nippel för anslutning till en fot- eller handdriven 700 bars hydraulpump.Kapar koppar- och aluminiumkabel.
Levereras i tygväska.
Klippkapacitet (diameter): 85 mm
- Grip design:
- Other
- With impact protection:
- No
- Suitable for steel wire braiding:
- No
- Replaceable cutting head:
- Yes
- Cutting jaws exchangeable:
- Yes
- With strip function:
- No
- Insulated:
- No
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Hydraulic cutter head
- Isolation protection 1000 V:
- No
- With spring:
- N/A
- VDE tested:
- No
Batteridrivet multiverktyg
NMBT MAT_VP
Battery tool for multiple applications with interchangeable heads. The battery tool is sold as one article no. The accessories are sold as separate items so there is no need to invest in applications not needed for the end user.
Tool can be used for following applications- Hole punch head for 19.1mm rod. MAT PH- DIN-Rail cutter. MAT DRC- Cutter for threaded bolt. MAT TR- Head for crimp dies. MAT NH- Cable cutter for Aluminum, Copper & ACSR-cable. MAT CC
MAT ADAPTER is needed to fit MAT TR and MAT CC.
The Tool comes in a plastic case together with a Li-Ion battery and a charger from Bosch.
Pressure: 700barForce: 6.7 tonLength: 410mmWeight: 3.9kg
- Grip design:
- Other
- With impact protection:
- No
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 0 .
- With automatic return:
- No
- Cycle time:
- 5 s
- Compression force:
- 67 kN
- Suitable for:
- Various applications
- Suitable for steel wire braiding:
- Yes, No
- Replaceable cutting head:
- Yes
- Cutting jaws exchangeable:
- Yes
- With strip function:
- No
- Insulated:
- No
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Accumulator-hydraulic
- For component:
- Non-insulated Cu tube and sheet terminals
- Isolation protection 1000 V:
- No
- With spring:
- N/A
- Compression shape:
- Universal (exchangeable inserts)
- VDE tested:
- No
Spare parts - NGBTO CC85
NGBTO CC85 RESERVDELAR_VP
Ändelsen på artikelnummret indikerar vilken reservdel det är från sprängskissen.

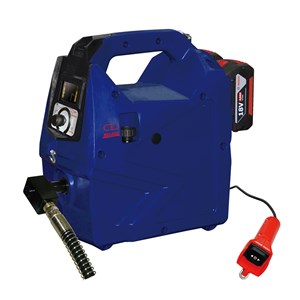

Batteridriven Pump - NBHP 18V
NBHP 18V_VP
Battery powered pump for Nemiq NPHT and NPHTO tools. Max pressure: 700 bar. 2 batteries, 18V, 4Ah are included.
- Nominal pressure:
- 700 bar
- Construction/operation:
- Electro-hydraulic pump
Crimp dies - CrimpXchange, NCXD-series
NCXD_VP
Crimp dies for hand tool NCX RAM. Also suitable for HD RAM and XLHD RAM as well as battery tool NMBT DHD.
- Number of crimps:
- 1
- Application:
- Pipe cable lug and connectors, Insulated tube cable lug and connector, Cable compression lugs and connectors, Cable end sleeves
- Compression shape:
- Trapezoid compression, Arbour clamping, Round compression, Square compression, Oval pressing, Roll compression (shrinking)

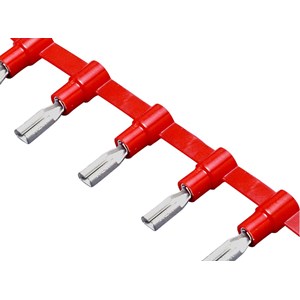

Receptacle on reel, ICTDV-series
Bandvara isolerade flatstifthylsor ICTDV FL_vp
Insulated terminals on reel from Nichifu.
Brazed seam
Easy entry
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 15 A
- Insulation:
- Partially isolated
- Colour insulation:
- Red
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -40-75 °C
- Material:
- Brass
- Voltage max:
- 300V
- UL-File No.:
- E78965
DINFLEX-Y (LiYY) - Korta längder
Dinflex_Y_kortalängder_vp
Flexible electronic cable with fine wire conductor structure, as in combination with PVC sheath it provides a very flexible cable with a small bending radius. It is used for signal, measurement, control and tone-frequency transmission in electronics, computers and signal systems.
Structure Conductor: Blank stranded copper
Conductor insulation: PVC
Core identification: According to DIN 47100
Outer Sheath: PVC
Sheath identification: Grey
Technical data:
Rating voltage: 0.14 mm² = 350 V >; 0.14 mm² = 500 V
Test voltage: 0.14 mm² = 800 V >; 0.14 mm² = 1200 V
Temperature range: Fixed min/max: -30ºC to +70ºC (-22ºF to +158ºF)Moving min/max: -5ºC to +70ºC (-22ºF to +158ºF)
Radiation Resistance: 8 x 107 cJ/kg
Minimum bending radius: 10 x cable diameter
Oil resistance: Good
Flame resistance: IEC 332-1
- Number of cores:
- 2-37 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- Yes, No
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- Yes
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Colour:
- Black, Grey
- Material insulation:
- Polyvinyl chloride (PVC)
- Operating temperature:
- -30-70 °C
- Core colour:
- Several
- Conductor surface:
- Bare
- Halogen free:
- No
- Min. permitted bending radius, stationary application/permanent installation:
- 16-64.5 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
