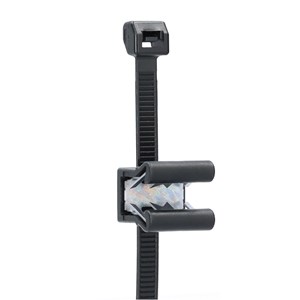

Cable tie with edge clips - Top mounted & outside serrated
Buntband_med_kantklips-Toppmontage_utv.tandning_vp
Cable ties with edge clips can, for example, be used where there is no possibility of mounting holes or where there are difficulties for adhesive to adhere. These products are used for fixing cables, hoses & pipes. Commonly used in the automotive industry, cable manufacturers, cabinet builders, and other industries. The clips come pre-assembled on the cable ties.
The following combinations of cable ties with clips are available:
- Clips for edge thickness 1-3mm or 3-6 mm.
- Cable ties with inner or outer serrations.
- Side-mounted or top-mounted cable ties.
- Cable ties can run along or across the edge(direction can be turned).
More combinations can be developed if needed.
Material cable ties: PA66HS UV
Material edge clips: PA66HIRHS UV
- Detectable:
- No
- Min. tensile strength:
- 230 N
- Model:
- Internal toothing
- Material quality:
- Polyamide (PA)
- Band closure:
- Plastic lip/-cam
- Transparent:
- No
- Fluorescent:
- No
- Solvable fastener:
- No
- Text strip:
- None
- Type of fastening:
- Edge clip
- Colour:
- Black
- Material:
- Plastic
- Max. tensile force:
- 230 N
- Inflammability class of insulation material according to with UL94:
- Other
- MIL approval:
- No
- VG approval:
- No
- UL approval:
- No
- Approved according to CE:
- No
- With approval according to UL:
- No
- Approved according to DNV:
- No
UL 1015
80002
UL/CSA-godkänd PVC-kopplingskabel för intern kabeldragning av kopplingsskåp, medicinsk utrustning, elektroniska moduler och styrsystem samt för installation i ledningar och rör
i maskiner och som anslutningstråd för transformatorer och motorer.
Max 600 V AC.
Uppbyggnad Ledare: Förtent mångtrådig koppar
Ledarisolation: PVC
Ledarfärg: Enligt tabell
Ledar resistance enligt IEC 60228
MIn. Böjradie fast förlagd 10 x d
Min. Böjradie rörligt förlagd15 x d
Driftspänning: 600 V AC
Provspänning: 3kV
Temp. Område :
Ledartemperatur vid kontinuerlig drift -40ºC till +105ºC.
Lägsta monteringstemperatur -10ºC
Godkännande:
UL Subject 758 AWM, Style 1015. Isolation: UL 1581
UL: VW-1 CSA: FT1
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Blue, Brown, Yellow, Grey, Green, Orange, Red, Black, White, Other
- Flame retardant:
- No
- Permitted cable outer temperature after assembling without vibration:
- -25-105 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 105 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Colour:
- Black, Green, Grey, Orange, Yellow, Green/yellow, Brown, Red, White, Blue, Purple
- Material insulation:
- Polyvinyl chloride (PVC)
- Operating temperature:
- -40-105 °C
- Core colour:
- Blue, Brown, Yellow, Grey, Green, Green/yellow, Purple, Orange, Red, Black, White
- Conductor surface:
- Tinned
- Halogen free:
- No
- Packaging:
- Reel B5
- Min. permitted bending radius, stationary application/permanent installation:
- 10.2-19.2 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No

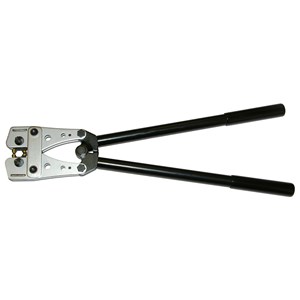

Copper lugs & metal sheet terminals, HDD 06120, K 1095
Rör plåtkabelskor HDD 06120 K 1095
Simpler hexagon crimping tool.
HDD 06120: 6-120 mm² copper lugs type KRT and metal sheet terminals (DIN)
K 1095: 6-95 mm² copper lugs type KRF
Length: 660 mm
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Hexagon

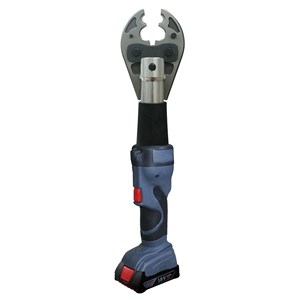

Battery Crimp Tool for DHD-Crimp dies
NMBT DHD_VP
NMBT DHD battery crimp tool for DHD, DRG & NCXD-diesets. The crimp head can be rotated 350º. Delivered with battery(with indicator) and charger in plastic case
Battery: 18 VDC, 2.0 Ah Li-IonPressure: 14,7kN, 1.5tonWeight: 1.9kg (inklusive batteri) Dimension case (LxWxH): 560x160x400 mm
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 0 .
- With automatic return:
- No
- Cycle time:
- 3 s
- Compression force:
- 14.7 kN
- Suitable for:
- Various applications
- Construction/operation:
- Accumulator-hydraulic
- For component:
- Shrink terminals, End sleeves, Turned contacts, Deutsch, Insulated terminals, Non-insulated terminals, roller compaction, Non-insulated Cu tube and sheet terminals, Modularplugg, Wirelås
- Compression shape:
- Universal (exchangeable inserts)

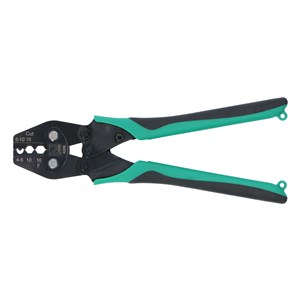

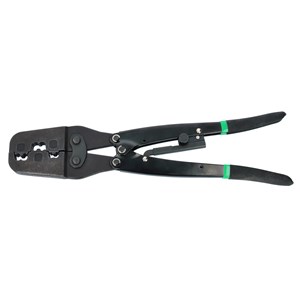

N 2258
N 2258_VP
N 2258 is a crimping tool for 6.0-16.0 mm² CUT, KR/KS 4.0-6.0 mm² and KRF/KSF 10.0-16.0 mm².
There are 3 die nests:
1: Cut 6.0-10.0 mm² & KR/KS 4.0-6.0 mm²
2: Cut 16.0 mm² & KRF/KSF 10.0 mm²
3: KRF/KSF 16.0 mm²
Length: 260 mm
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Hexagon, Arbour clamping
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Hexagon

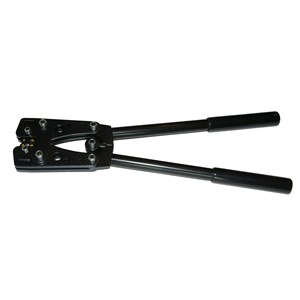

HDD 0650
HDD 0650_VP
HDD 0650 is a simpler hexagon crimping tool for 6-50 mm² copper lugs type KRT and metal sheet terminals (DIN).
Length: 390 mm
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Hexagon
Crimping tools - HD BGD3
HD BGD3_VP
Crimp Tonol for Burndy.
Crimp slots: BG & D3
Press force: 4.5 ton
Length: 645 mm
Weight: 3.2 kg
Crimp dies: KW (in D3 slot)
Available dies: BG, O, C, K840, 161, 162, 163, 164, 165, 166, 171, 237, 243, 247, 249, 702
Delivered in plastic case.
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Round compression

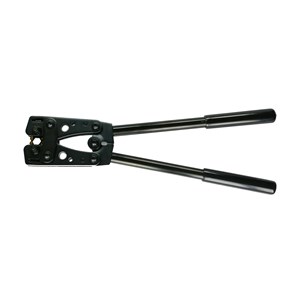

HD 120
HD 120_VP
HD 120 is a simpler thorn-crimping tool for 10-120 mm² copper lugs type KRT and metal sheet terminals (DIN).
The area is set continuously against the scale which allows over-crimp, in applications needed.
Length: 650 mm
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Arbour clamping
Crimp tool - ETP 0146
ETP 0146_VP
Pressverktyg med frontpressning av ändhylsor 0.14 – 6 mm² i samma uttag.
En ratchetttång som säkerställer att pressningen fullföljs.
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable end sleeves
- Construction/operation:
- Mechanical
- For component:
- End sleeves
- Compression shape:
- Trapezoid compression
Pressverktyg för Modularkontakter – ASR 486
ASR 486_VP
Pressverktyg för 4, 6 och 8-poliga modularkontakter. Utrustad med en skal- och klippfunktion.
En ratchettång med inbyggd returspärr som garanterar att kontaktpressningen fullföljs.
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Modularplugg
- Compression shape:
- Notching

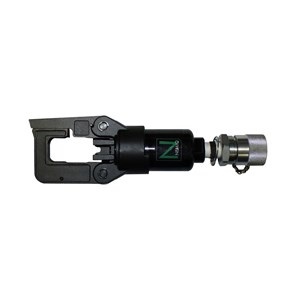

Hydrauliskt presshuvud för backsystem
NPHT 240_VP
Hydrauliskt Presshuvud för rörkabelskor och C-hylsor. Med 3/8" nippel för anslutning till en fot- eller handdriven 700 bars hydraulpump.
Verktyget kan pressa:
KRF 10-120 mm2
KRT 10-240 mm²
KRD 10-240 mm²
C4-C9
Verktyget passar med NH-backar.
Presskraft: 52 kN/5,3 ton
Vikt:
Längd:
Levereras i tygväska.
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 0 .
- With automatic return:
- Yes
- Cycle time:
- 5 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Hydraulic compression head
- For component:
- C-clamps
- Compression shape:
- Round compression
Battery Crimp Tool
NMBT BGD3_VP
Battery crimp tool for Burndy.Crimpo head can be rotated 325 degrees.
Crimp slots: BG & D3Max pressure: 460 barsPress force: 4.5 ton. Length: 459mm. Weight: 3.4kg.
Crimp dies: KW (in D3 slot) Available dies: BG, O, C, K840, 161, 162, 163, 164, 165, 166, 171, 237, 243, 247, 249, 702
Delivered with battery and charger in a plastic case.
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 5 s
- Compression force:
- 60 kN
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Accumulator-hydraulic
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Universal (exchangeable inserts)

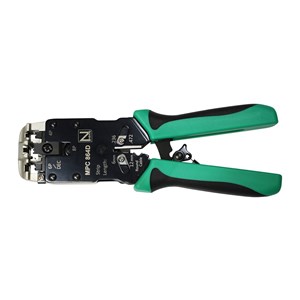

Pressverktyg för modularkontakter - MPC
MPC 864D_VP
MPC 864D är ett pressverktyg för 4, 6, 8-poliga samt 6-poliga DEC modularkontakter.
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Modularplugg
- Compression shape:
- Notching
Kapverktyg för DIN-skenor
DSK
Kapverktyg för DIN-skenor med lång hävarm för hög kraft.
Kapar skenan utan grader och skrot.
Längdstopp samt håltagningsstans 6.3x10.0mm ingår.
Längd: 1110 mm.
Vikt: 9.2 kg
Se nedan vilka skentyper verktyget kan kapa.

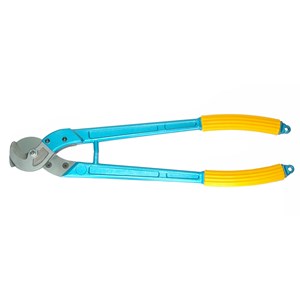

2-handed (mechanical)
7502
ME 80 / ME 150 / ME 250 / ME 500
Cable cutter for copper cable that provides evencut without deforming the cable.The legs in blue metallic and yellow handles in vinyl.
Cutting capacity:ME 80: 80 mm²ME 150: 150 mm²ME 250: 250 mm²ME 500: 500 mm²
Length: 320 mm / 455 mm / 600 mm / 800 mm
- Grip design:
- 1-component
- With impact protection:
- No
- Suitable for steel wire braiding:
- No
- Replaceable cutting head:
- Yes
- Cutting jaws exchangeable:
- Yes
- With strip function:
- No
- Insulated:
- Yes
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Mechanic two hands
- Isolation protection 1000 V:
- No
- With spring:
- No
- VDE tested:
- No

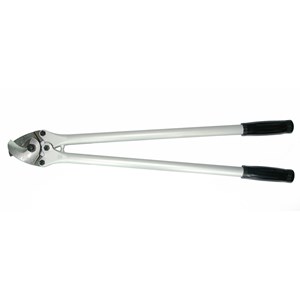

2-handed (mechanical)
7504
ME 200N / ME 400N
Cable cutter for copper and aluminum cable.Aluminum handle makes the tools light.
Cutting capacity:ME 200N: 200 mm²ME 400N: 400 mm²
Length: 500 mm / 700 mm
- Grip design:
- 1-component
- With impact protection:
- No
- Suitable for steel wire braiding:
- No
- Replaceable cutting head:
- Yes
- Cutting jaws exchangeable:
- Yes
- With strip function:
- No
- Insulated:
- Yes
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Mechanic two hands
- Isolation protection 1000 V:
- No
- With spring:
- No
- VDE tested:
- No
Stegmatade - RCC 325
7605
Cable cutter for copper and aluminum cable.
Cutting capacity:RCC 325: 32 mm / 240 mm²
Length: 260 mm
- Grip design:
- 1-component
- With impact protection:
- No
- Suitable for steel wire braiding:
- No
- Replaceable cutting head:
- Yes
- Cutting jaws exchangeable:
- Yes
- With strip function:
- No
- Insulated:
- Yes
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Ratchet model mechanical
- Isolation protection 1000 V:
- No
- With spring:
- No
- VDE tested:
- No
Toppskarvar, crimp
14201
CE-series
Fully insulated closed-end connectors
Material: Copper
Insulation: Nylon (PA)
Temperature range: -40° C - +105° C (-40º F - +221º F)
- Model:
- Bushing
- Insulation:
- Fully isolated
- Colour insulation:
- Other
- Colour:
- White
- Material insulation:
- Polyamide (PA)
- Operating temperature:
- -60-105 °C
- Material:
- Copper
- Connector type:
- Toppskarv, pressbar
- UL-File No.:
- E44245
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 16-27 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-105 °C
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- Yes

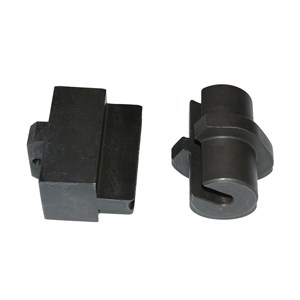

Novopress - Crimp dies
49102
Förformningsbackar
Backarna kallas också för Rundpressningsbackar och dom används för att göra sektorformad kabel rund.
Det finns en serie för HP 300 & HPA/HPH/HPM 400.
Se i nedan tabell vilka storlekar som finns.
- Number of crimps:
- 1
- Application:
- Other
- Compression shape:
- Round compression

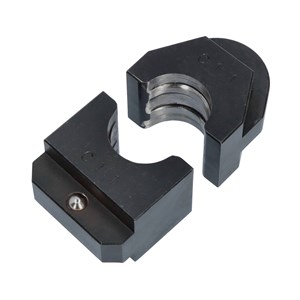

Novopress - Crimp dies
49103
C-hylsbackar
Pressbackar för avgreningshylsor.
Det finns en serie för HP 300 & HPA/HPH/HPM 400 och en annan för HP 450.
Se i nedan tabell vilka storlekar som finns.
- Number of crimps:
- 1
- Application:
- Not isolated cable connections
- Compression shape:
- Round compression
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10-24 A
- Insulation:
- Fully isolated
- Colour insulation:
- Blue, Yellow, Red
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -40-75 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- No
